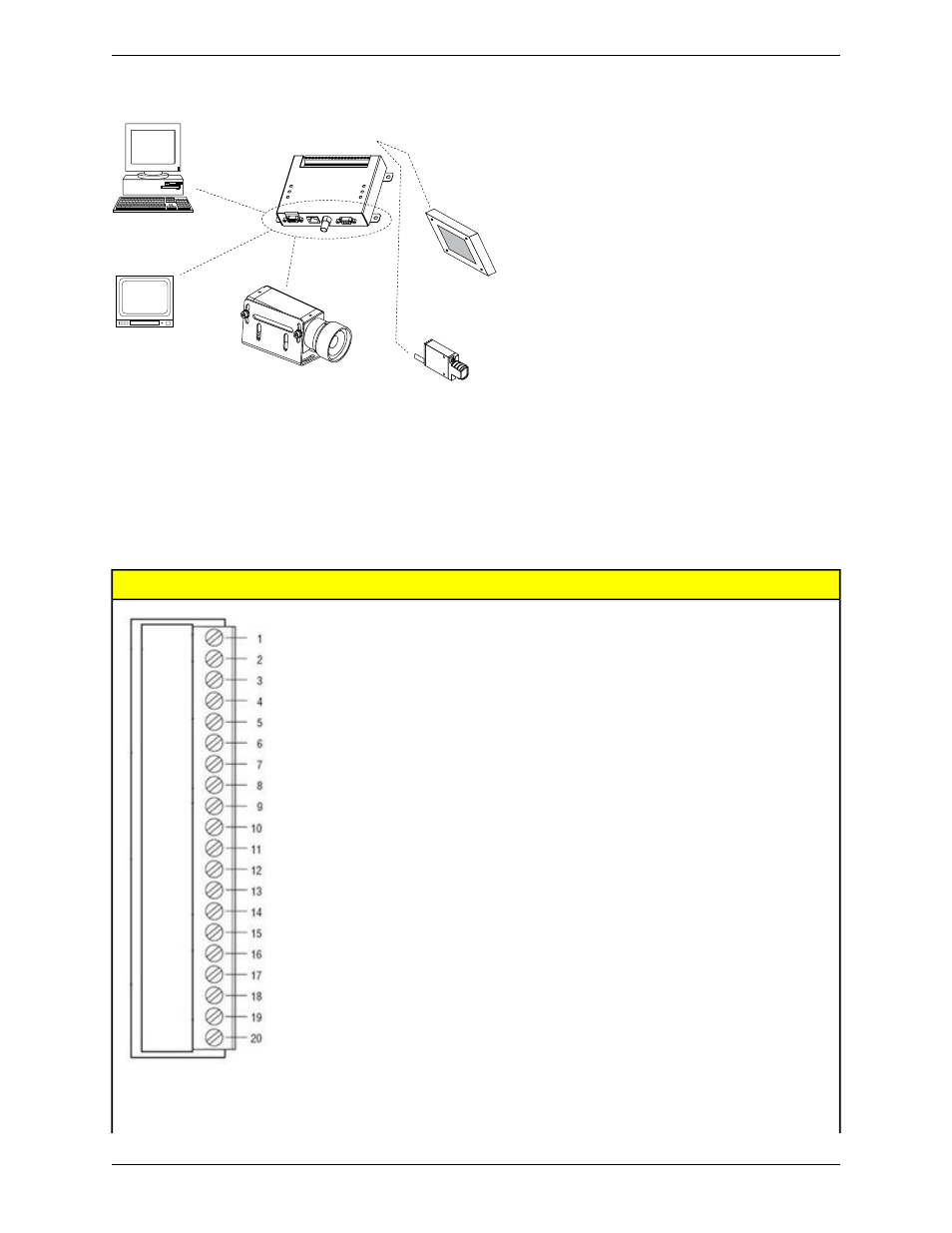

Controller
PC with PresencePLUS Software
(Required only for configuration and diagnostics)
Terminal Block
-Power Supply
-Trigger Input
-Light Source
-Other I/O
Video Monitor
(optional)
Camera
(Mounting Bracket is optional)
Trigger Device
Light Source
2.1.3 PresencePLUS ® ProII Controller Terminal Block
The controller provides a pluggable 20-pin terminal block. In addition to the trigger input and power supply, the terminal
block accomodates a variety of I/O configurations including a strobe output, product select lines, and general-purpose
I/O.
The table below describes the controller terminal block connections
Direction Description Pin # Terminal Block
Input 10 - 30V dc (V+)
1
Input dc Common (V-)
2
Input Trigger Device
3
Output Strobe
4
N/A N/A
5
Input Remote Teach
6
N/A N/A
7
N/A N/A
8
Input/Output Discrete I/O #1
9
Input/Output Discrete I/O #2
10
Input/Output Discrete I/O #3
11
Input/Output Discrete I/O #4
12
Input/Output Discrete I/O #5
13
Input/Output Discrete I/O #6
14
Input Product Change
15
Input Product Select 3
16
Input Product Select 2
17
Input Product Select 1
18
Input Product Select 0
19
