Chapter 15 Hardware Installation
14.1 Typical ProII Vision Application

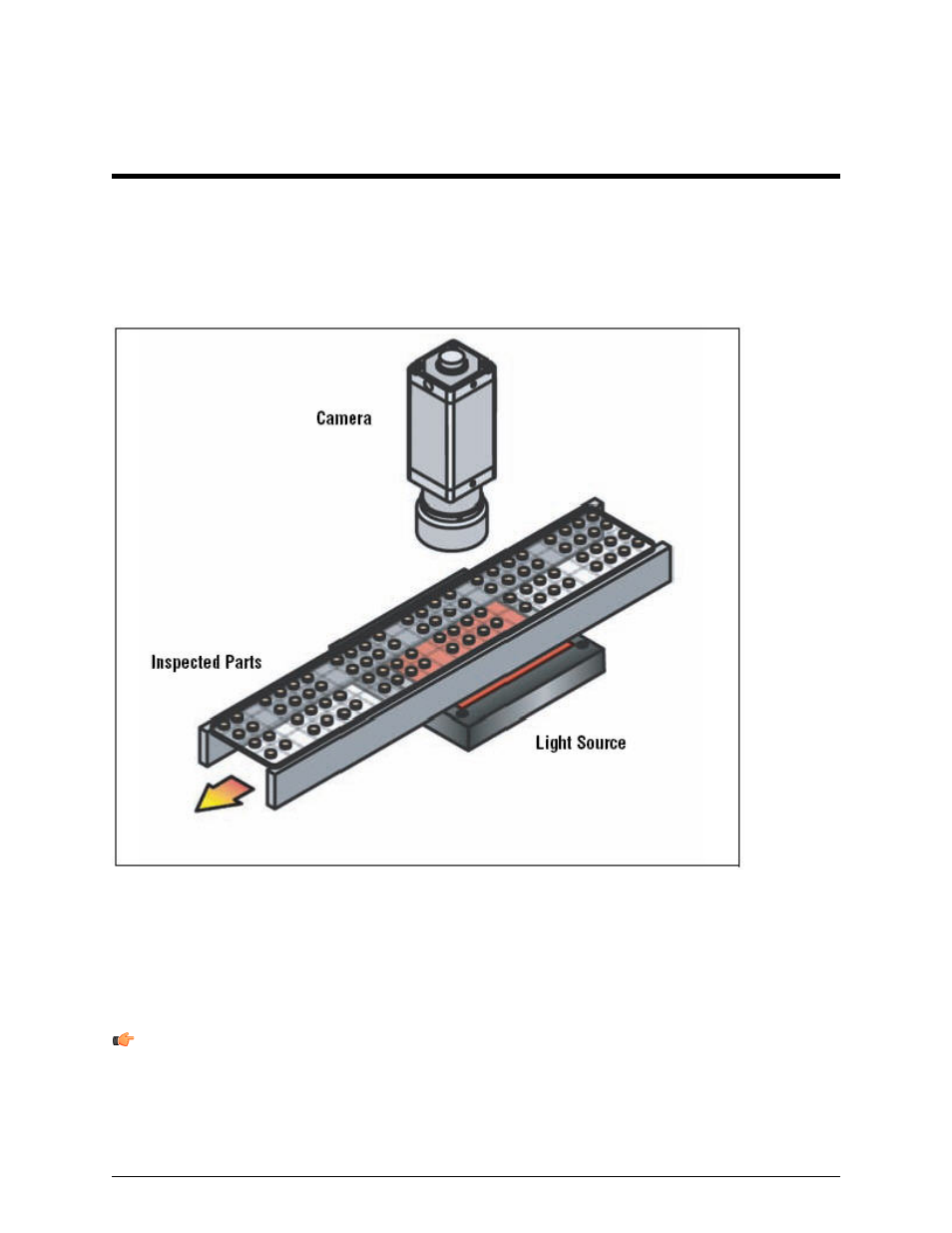

A typical PresencePLUS Pro II sensor application is shown below.
14.2 PresencePLUS
®
ProII Components
The PresencePLUS ProII system consists of a PC with PresencePLUS software, a camera, a controller, and the
appropriate connections. The Sensor requires lighting and a trigger device. An optional video monitor can be connected
to the controller.
Note:
The trigger device can be any 10-30V dc photoelectric sensor (PNP or NPN) or a device with a similar
output.
