92
Publication IASIMP-QS011B-EN-P — January 2009
Chapter 7
Motion System Application Guide

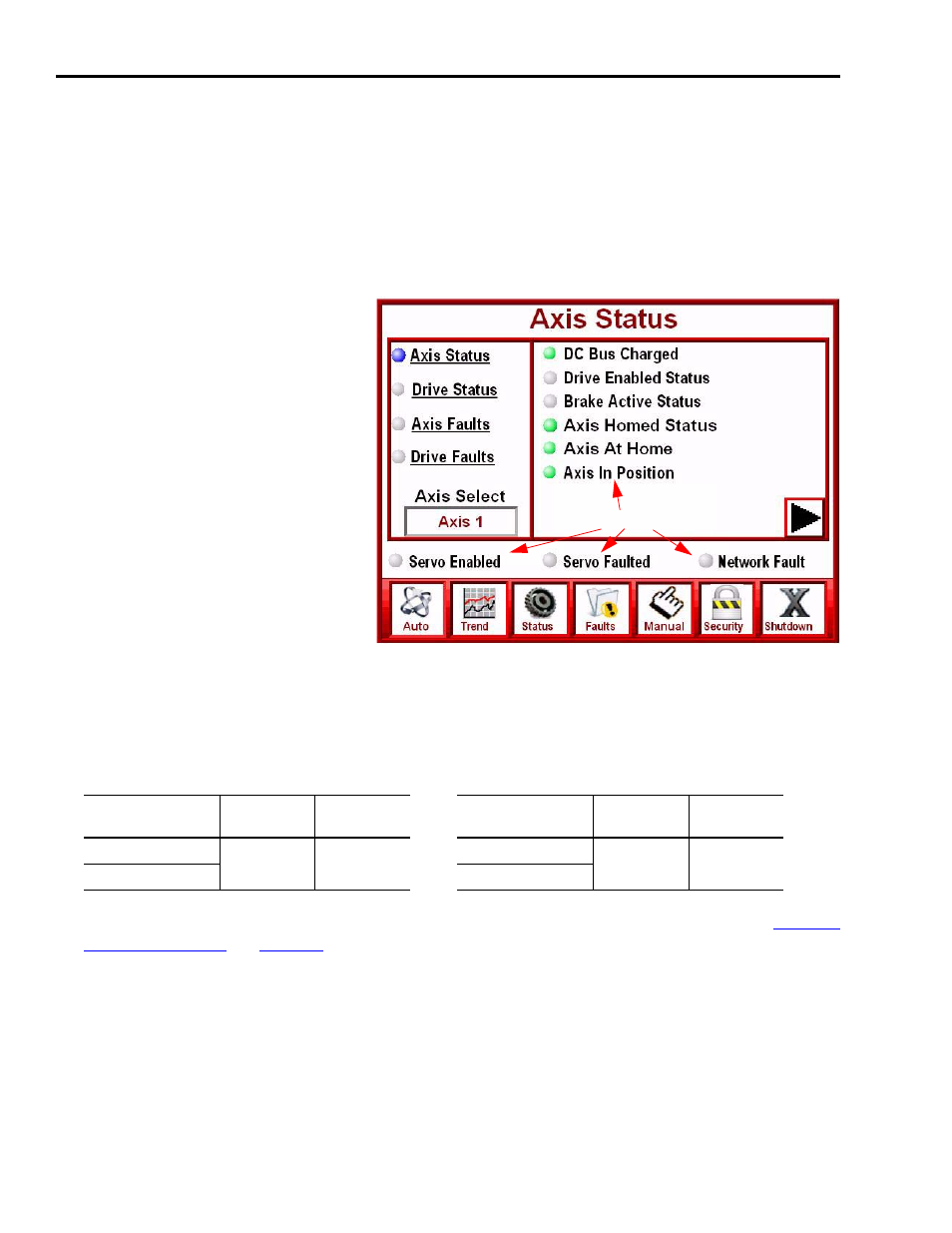

Use the Axis Status Display
The Axis Status display shows general motion, axis, and drive status, and faults.
Follow these steps to view status and fault indicators and to select the axis.
1. Press Status on the Application Navigation Bar. The Axis Status display opens.
2. Select a system Status or Fault
category from the axis (left)
window.
The green indicator confirms your
status/faults selection.
3. Monitor the status or fault
indicators (right side and below.)
In this example, Axis Status
indicators are shown. Servo
Enabled, Servo Faulted, and
Network Fault status indicators are
always present.
Axis Status, Drive Status, Axis Faults, and Drive Faults indicators show the corresponding
status/faults of the axis displayed on the Axis Select button.
The ON/OFF and Faulted/Non-Faulted states are described in the tables below.
4. Press Axis Select Axis (1) to select another axis for status and fault viewing. (Refer to
for axis selection operation.)
Status Indicators
ON State
OFF State
Fault Indicators
Faulted
State
Non-faulted
State
Axis Status
Green
Grey
Module Faults
Red
Grey
Drive Status
Drive Faults
Status Indicators
