Motion FactoryTalk View Integration

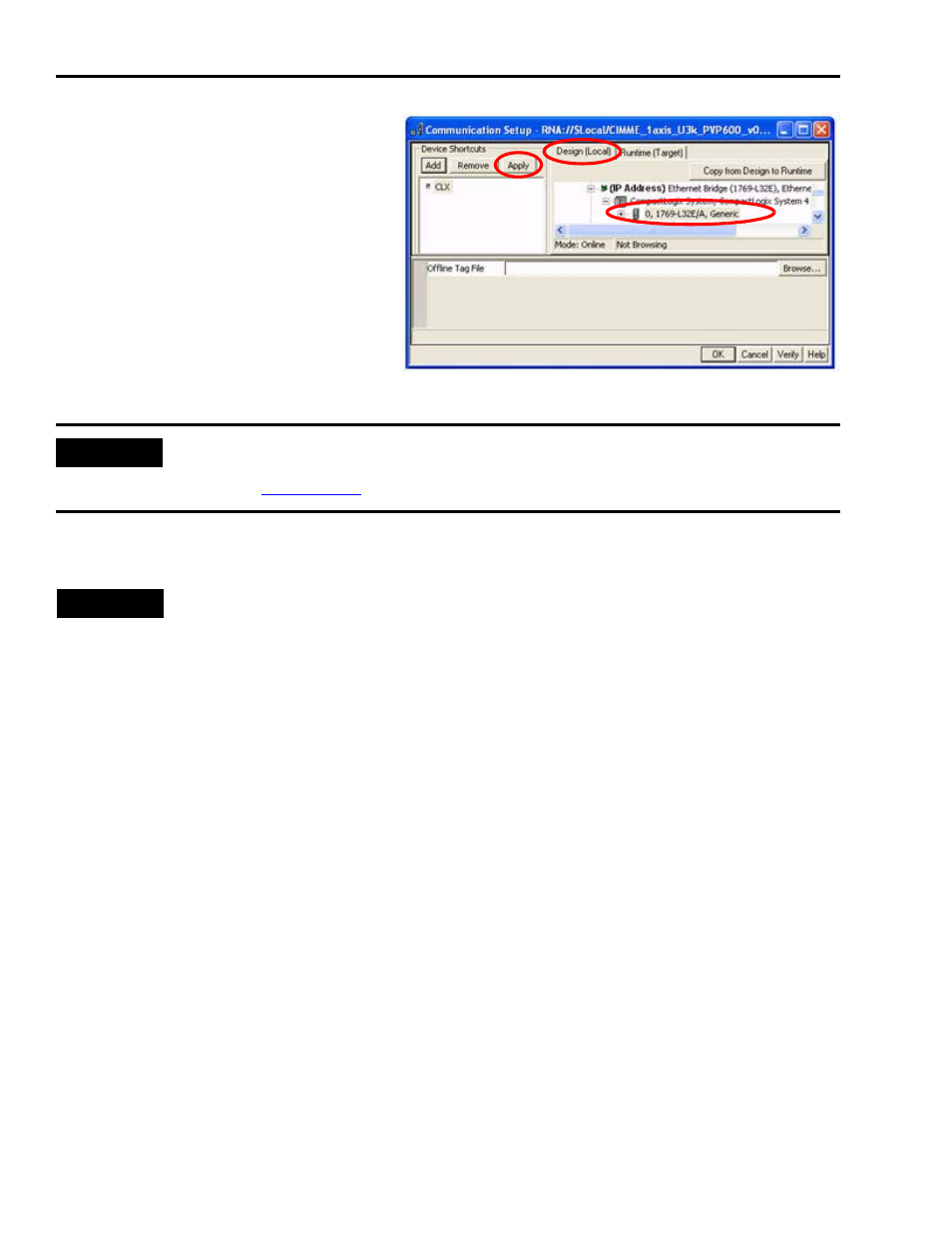

The Communications Setup window
opens.
9. Click the Design (Local) tab.
10. Select the CLX device shortcut.
11. Expand the RSLinx Enterprise tree to
gain access to your CompactLogix
controller.
12. Select your CompactLogix controller.
0, 1769-L32E is used in this example. The slot number is 0. Yours could be different.
13. In the Device Shortcuts section, click Apply.
IMPORTANT
RSLinx Enterprise will autobrowse to the controller if the controller is available on the network. If
RSLinx Enterprise fails to find your controller, refer to CompactLogix System Quick Start manual,
publication
.
TIP
If you select the device shortcut (CLX),
the 1769-L32E CompactLogix
controller is highlighted. This
indicates that the shortcut is correctly mapped to the controller, and communication exists
between the controller and your application on the development computer.
