Publication IASIMP-QS011B-EN-P — January 2009 107
Appendix
B
PhaseManager for S-88 Users
The pre-configured CompactLogix program template is driven by a simple state machine, as
shown in
Appendix A . If your system must comply to ISA-88 (S-88), Rockwell Automation offers
PhaseManager as an embedded state machine controller that runs in the firmware of the
CompactLogix controller. The CompactLogix program template already includes the code
necessary to convert your system from the state machine version to a version that is driven by
PhaseManager.
Follow the steps in this section to convert your program template and your operator interface
screens from the simple state machine version to a version that uses PhaseManager and the S-88
state model shown below.
Making Changes to the Program Template
Follow these steps to convert the CompactLogix program template from a simple state machine
to a version that uses PhaseManager.
Modify Your Controller Tags
1. Open the Logix application file that you selected in Chapter 5 .
2. Double-click on Controller Tags in the controller organizer. You will need to delete two
controller tags.

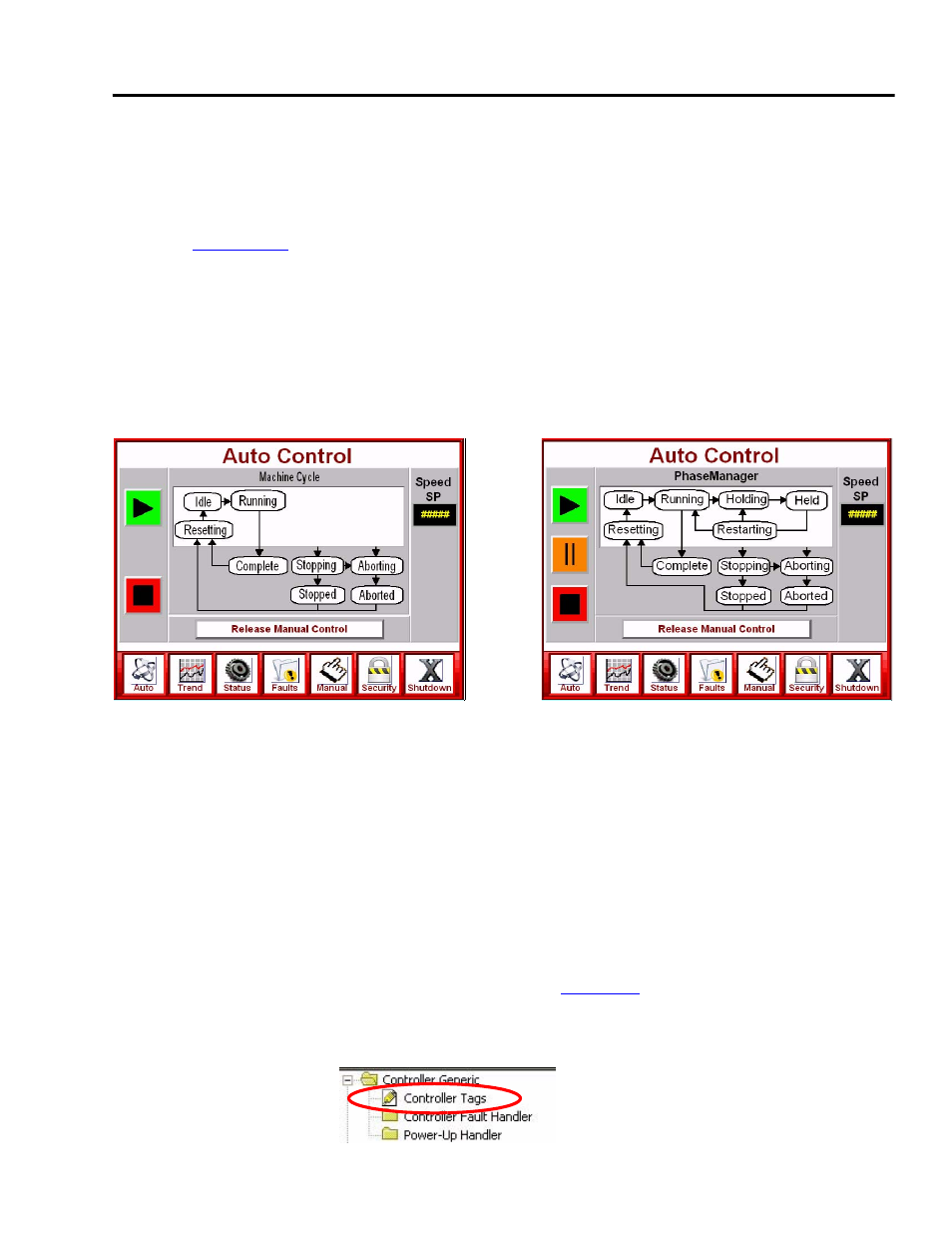

Simple State Machine S-88 Machine with PhaseManager
