Chapter 5 Motion Logix Integration
The IP address shown is an example. Yours will be different.
8. Click OK.
9. Click Close in the Configure Drivers window.
10. Choose Communication>RSWho.

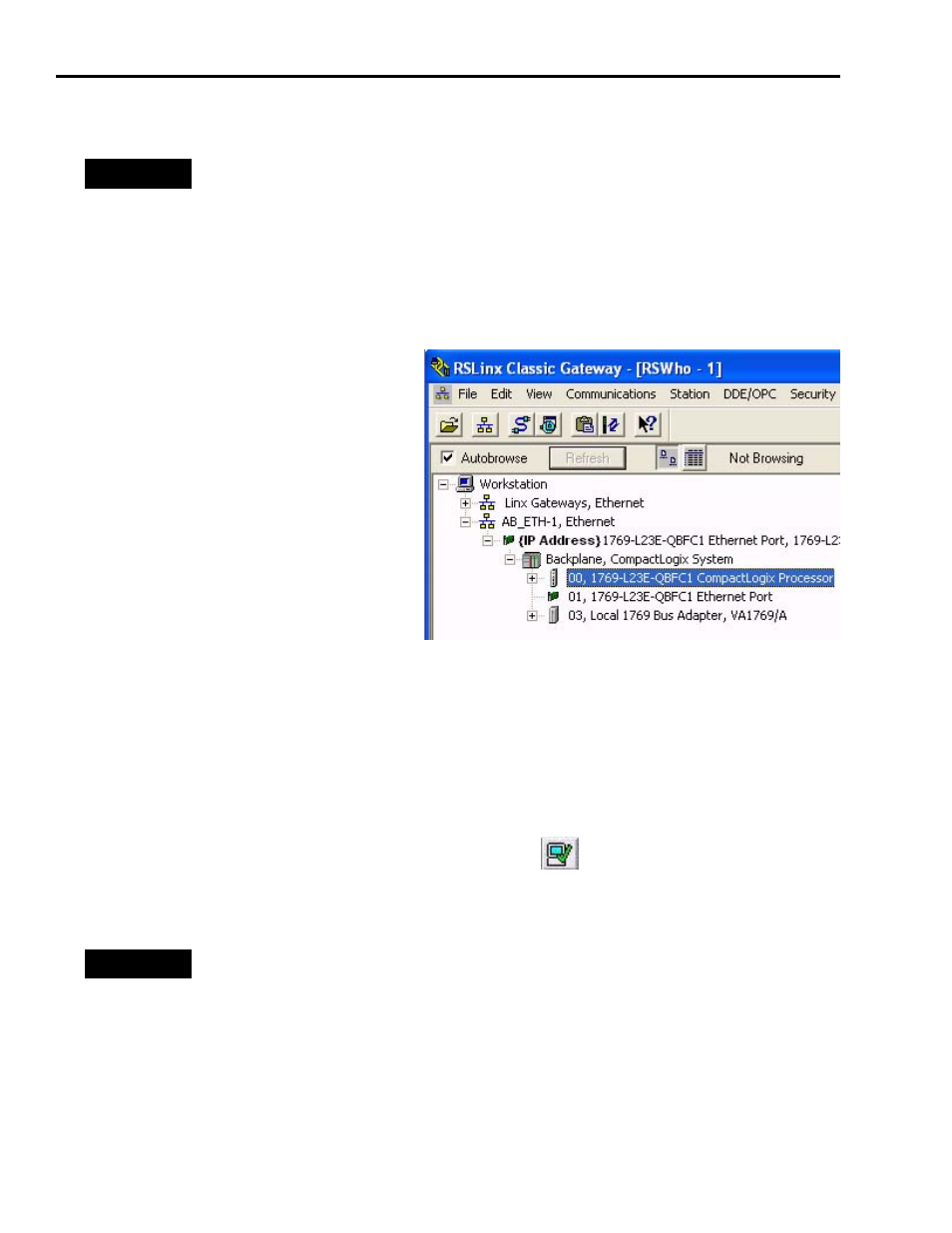

The RSWho window opens.
11. Expand the 1769 Ethernet Port and then
expand the Backplane.
12. Verify that you can browse to your Logix
controller. If not, repeat step 1…step 11,
checking for any errors.
13. Minimize the RSLinx Classic application
window and return to the RSLogix 5000
project window.
Save and Download Your Program
After completing the Logix configuration, you must download your program to the Logix
controller.
Follow these steps to save and download your program.
1. On the RSLogix 5000 toolbar, click Verify Controller.
The system verifies your Logix controller program and
displays errors/warnings, if any.
2. Choose File>Save As to save the file.
TIP If your Logix Ethernet module is already configured, the IP address is displayed on the module.
TIP
If you receive warnings related to AXIS_Servo_Generic, they are due to the Fault Event Log
configuration and can be ignored.
