Chapter 3
Plan System Layout
Verify Your Basic Panel Layout

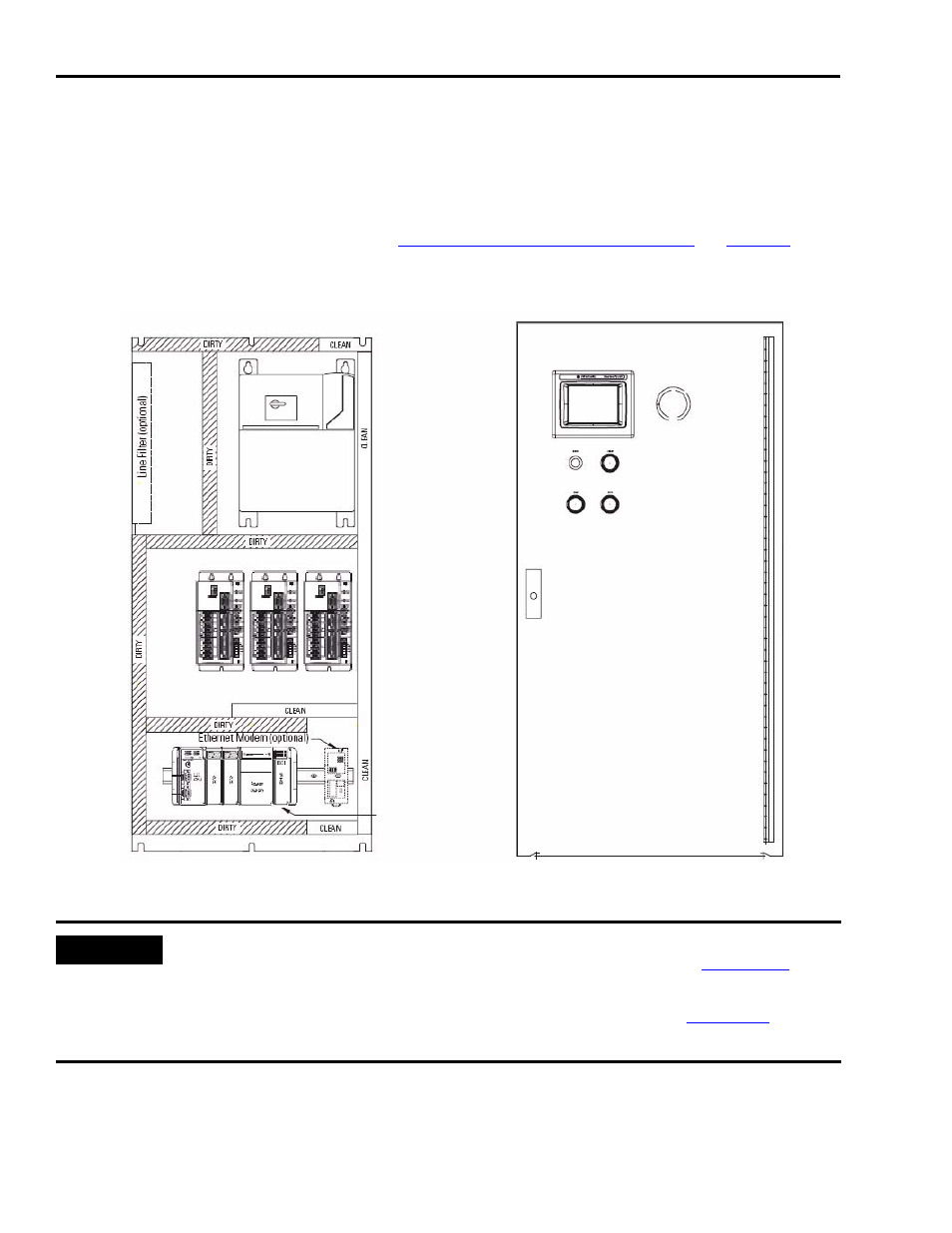

The basic motion control panel layout is shown below. Included is a three-axis Ultra3000 drive
system with Line Interface Module (LIM), PanelView Plus 600 terminal, and CompactLogix
controller with DeviceNet interface module. Verify that your system matches this diagram. If it
does not match, follow the instructions in
Modifying Your Motion Panel Layout
Sample Information from Enclosure Files
IMPORTANT
The enclosure CAD drawings were designed using best-practices techniques as shown in the
System Design for Control of Electrical Noise Reference Manual, publication
. Refer
to this publication when making modifications to the basic motion control panel layout.
Refer to the Ultra3000 Digital Servo Drives Installation Manual,
, for panel
layout instructions specific to the Ultra3000 drives.
LIM Module
Ultra3000 Indexing
Servo Drives with
DeviceNet
(230V AC shown)
CompactLogix
Controller
PanelView Plus 600 Terminal (HMI)
Through-the-door
Disconnect
Enclosure
1219 x 609 x 304 mm
(48 x 24 x 12 in)
Bulletin 800EP
Push Buttons
1769-SDN
DeviceNet Module
Optional Equipment Includes:
• Line Filter (required for CE)
• PowerFlex 40 AC Drive
• Ethernet Modem
• Point IO System
• Safety Relay
