Plan System Wiring Chapter 4
Load Basic System CAD Diagrams
The Kinetix Accelerator Toolkit CD, publication IASIMP-SP004, provides CAD diagrams, in DWG
format, to assist in planning your system wiring. The diagrams are designed to optimize panel
space and to minimize electrical noise.
Follow these steps to locate the CAD files for the Kinetix Accelerator Toolkit CD.

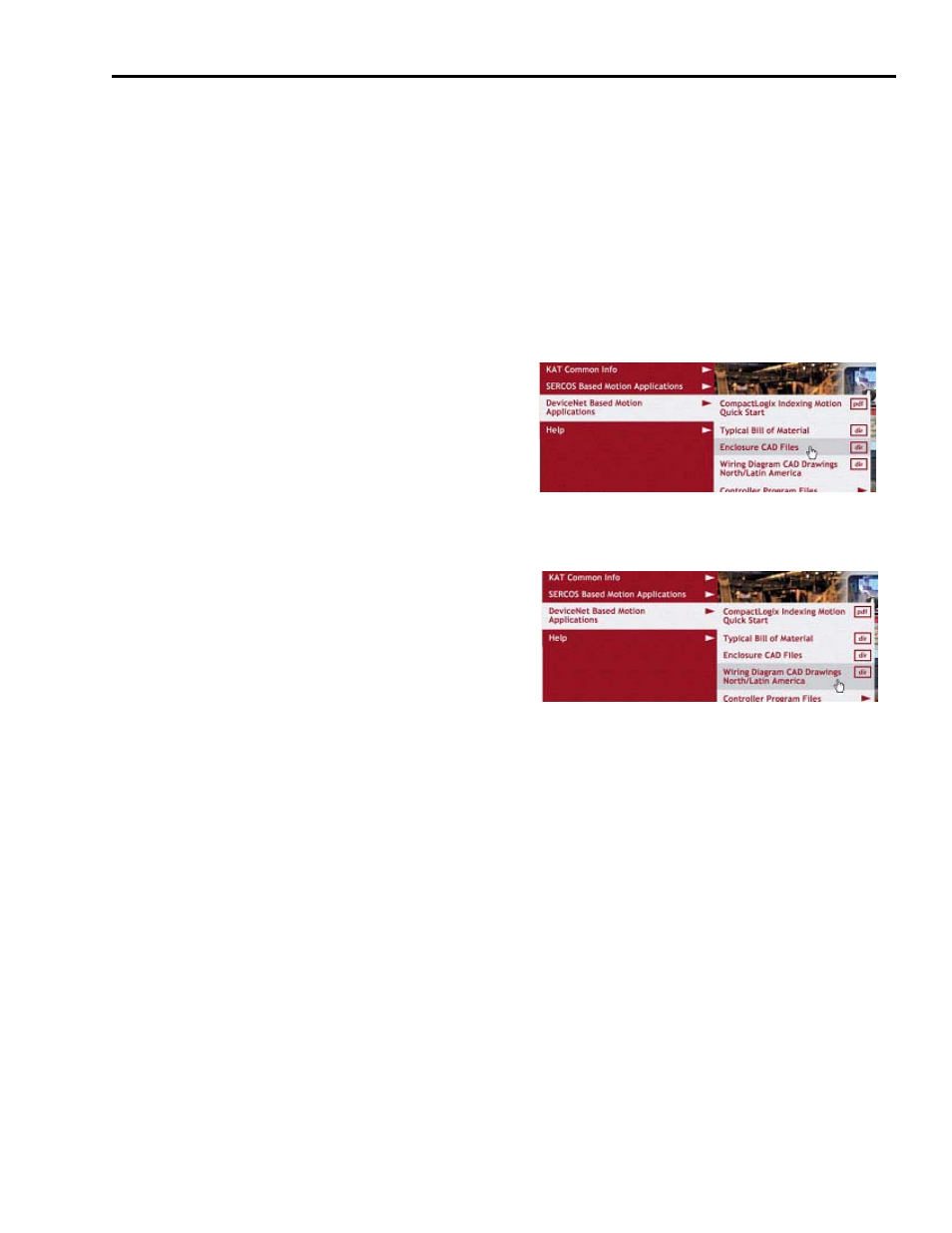

1. Open the Kinetix Accelerator Toolkit program. From the Start menu, choose
Programs>Rockwell Automation>Simplification>Kinetix Accelerator Toolkit.
2. From the toolkit menu, choose DeviceNet Based
Motion Applications>Enclosure CAD Files.
3. Use your CAD program to open these and other
enclosure CAD files.
•
CIMAT_L23_230_PANEL_LAYOUT.dwg
•
CIMAT_L31_460_PANEL_LAYOUT.dwg
4. From the Toolkit menu, choose DeviceNet
Based Motion Applications>Wiring Diagram
CAD Drawings North/Latin America.
