FactoryTalk EnergyMetrix Software
158
 Setpoint Output Status
This displays setpoint output configuration and stats from an Allen-Bradley 1426
PowerMonitor 5000 unit.
 Input Source - The input source to trigger the output
 Output Action - The action for the output
 Status - The current value for the Output - True or False
Waveform Tab
This displays captured oscillographs from an Allen-Bradley 1426 PowerMonitor 5000
M6 or M8. Oscillography features include:
 Simultaneous capture of all eight (8) voltage and current channels.
 Up to 61/4 kHz sampling rate (1024 samples/cycle at 50 or 60 Hz). Captures
include up to the 63rd (M6) or 127th (M8) harmonic.
 Up to 256 waveform files or 21,600 cycles of waveform data are stored in
non-volatile memory.
 Each capture may contain up to 3600 cycles of data per channel plus the pre- and
post-event cycles as configured.
 Waveform data is comprised of cycle-by-cycle FFT data and is stored in
compressed format.
 Configurable pre- and post-event cycles (up to 15 cycles pre and 30 cycles post)
allows capture of data surrounding the triggering event.
 Waveform capture is triggered in three ways:
 Manually, through a command;
 Automatically by the power monitor when it detects a sag or swell event; and
 In response to a waveform synchronization broadcast message.

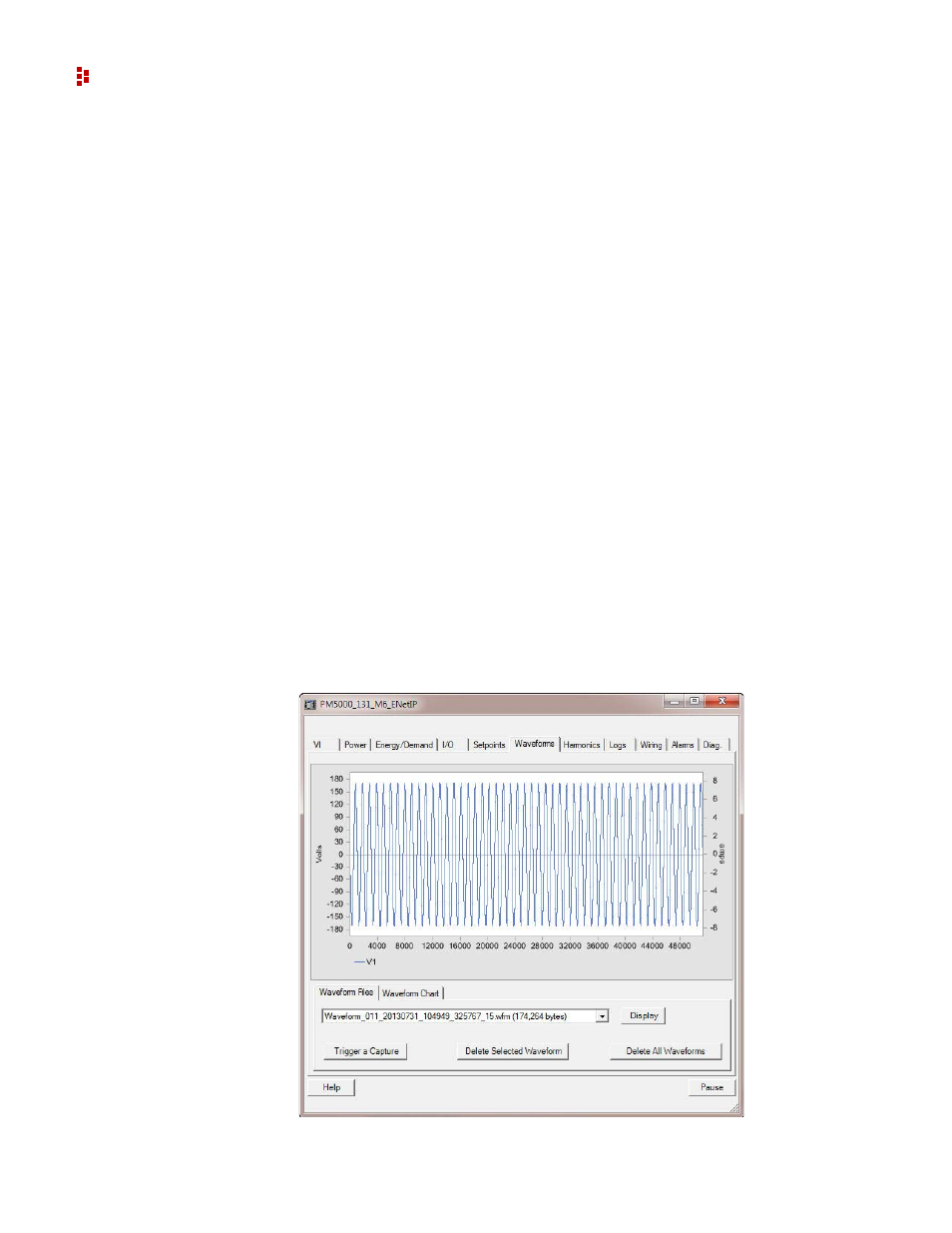

When a capture is displayed, a vertical dashed red link marks the trigger position.
