7 • RT (Real Time)
157

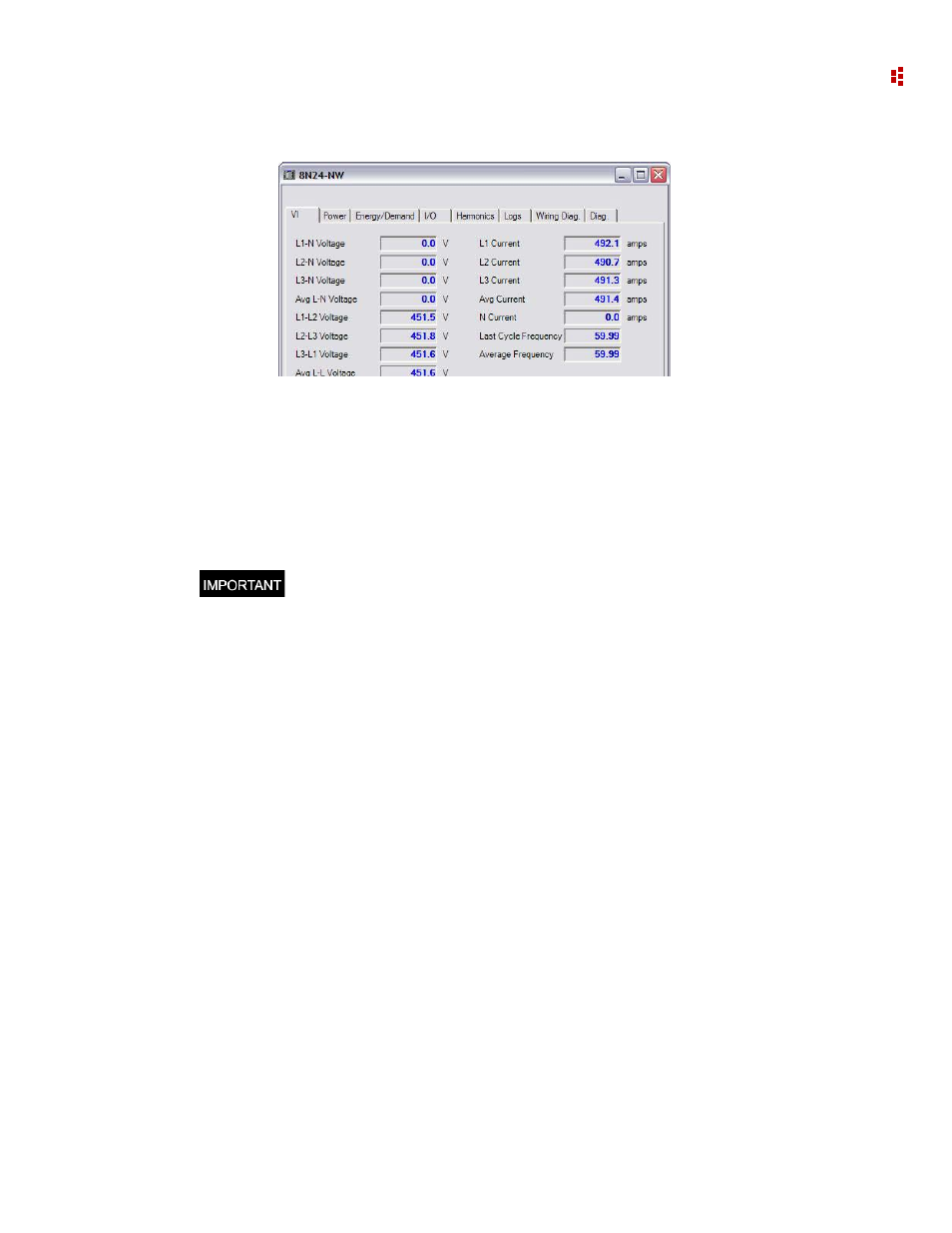

PowerMonitor 5000 Device Viewer Window
To launch the device viewer for a meter, select a meter in the navigation tree meters tab,
and click the ‘Device class: Powermonitor 5000 (M5)’ link in the meter summary screen
in the detail pane. The Device Viewer link also appears in the Device setup screen.
The window title bar displays the device name of the power monitor.
Click Pause to pause updating.
Setpoint Tab
This displays setpoint status from an Allen-Bradley 1426 PowerMonitor 5000 unit.
 Setpoint Status
This displays setpoint configuration and setpoint values from an Allen-Bradley 1426
PowerMonitor 5000 unit.
 Input Parameter - The input parameter for the setpoint
 Threshold - The threshold for the setpoint
 Status - The current value for the Setpoint - True or False
 Logic Gate Status
This displays Logic Gate configuration and Gate output values from an Allen-Bradley
1426 PowerMonitor 5000 unit.
 Gate - The gate number: From 1 to 10.
 Type - The Gate type: AND, NAND, OR, NOR, XOR or XNOR.
 Input - The inputs for the gate: between two and four inputs.
 Inverted - The inputs are inverted before they are input to the Gate.
 Gate Input - The status of each input to the Gate.
 Gate Output - The resulting output of the Gate.
Set up groups and power monitor devices before using RT to view the power
monitor configuration. If security is enabled in the power monitor, you must enter a
valid application-class user name and password to view or clear logs, preset energy
values or change any configuration settings in the power monitor.
