Industrial 18.1" Flat Panel Monitor 9
Publication 6185-UM001B-EN-P
The panel mount (6185-D) monitor is designed to provide protection
against water and dust to NEMA 4 (IP65) and NEMA 12 (IP52)
standards.
No slides or shelves are required because the panel mount (6185-D)
monitor is designed to be supported by the panel in which it is installed.

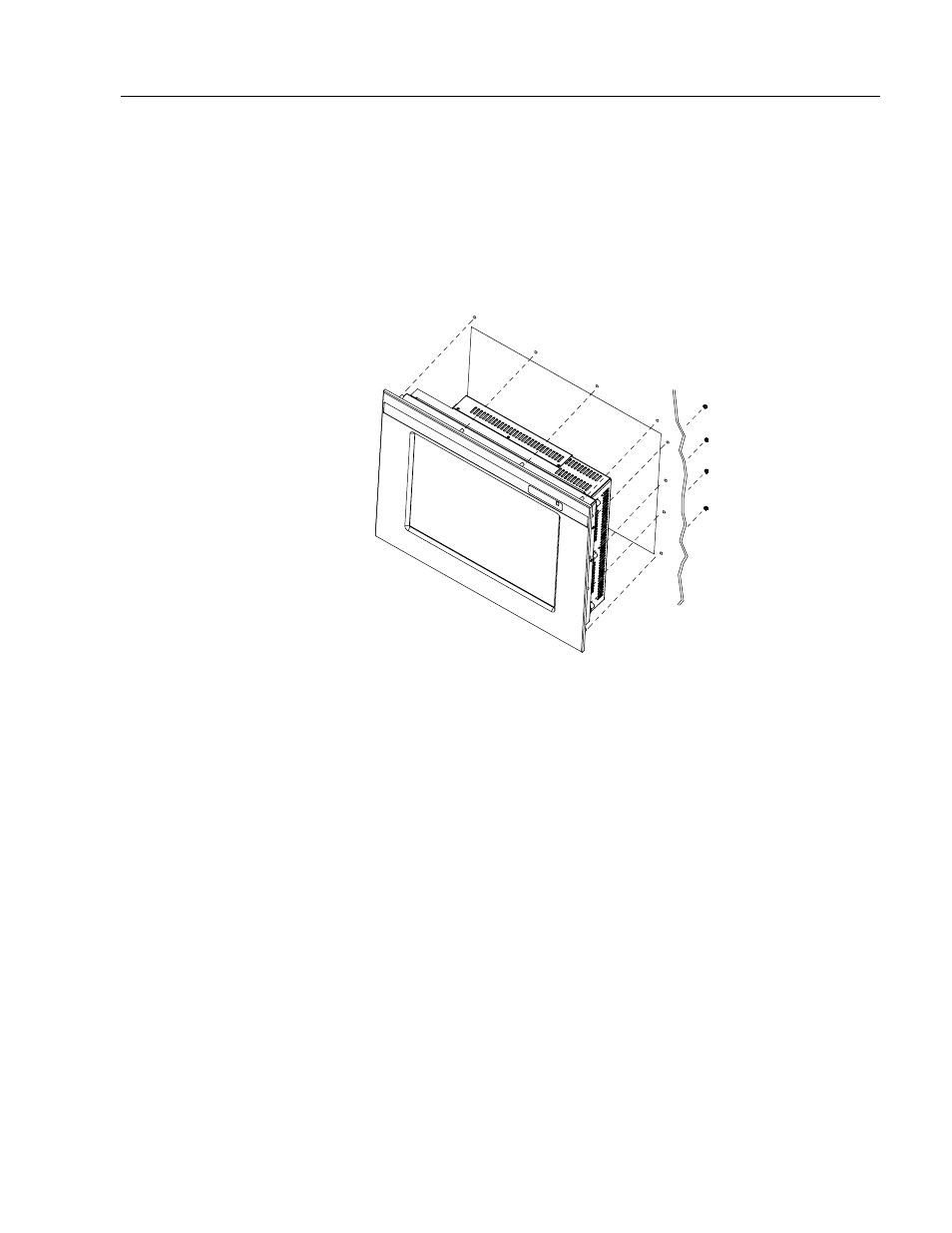

Figure 2
Generic Panel Mount Diagram
Tools Needed
In addition to the tools required to make the panel cutout, you will need
the following tools:
• 3/8" deep well socket
• ¼" drive extension – 6" or longer
• ¼" drive ratchet or ¼" drive torque ratchet
Panel Mount (6185-D)
