58 Industrial 18.1" Flat Panel Monitor
Publication 6185-UM001B-EN-P
A 5-BNC-to-HD-15 adapter cable is available. The functions of the
cables are described below.
• R, B, and G: Red, Green, and Blue input connectors to establish
color. These are used for RS-343 analog signals.
• HS/CS: Separate horizontal/composite sync signal from the video
source.
• VS: Separate vertical sync signal from the video source.

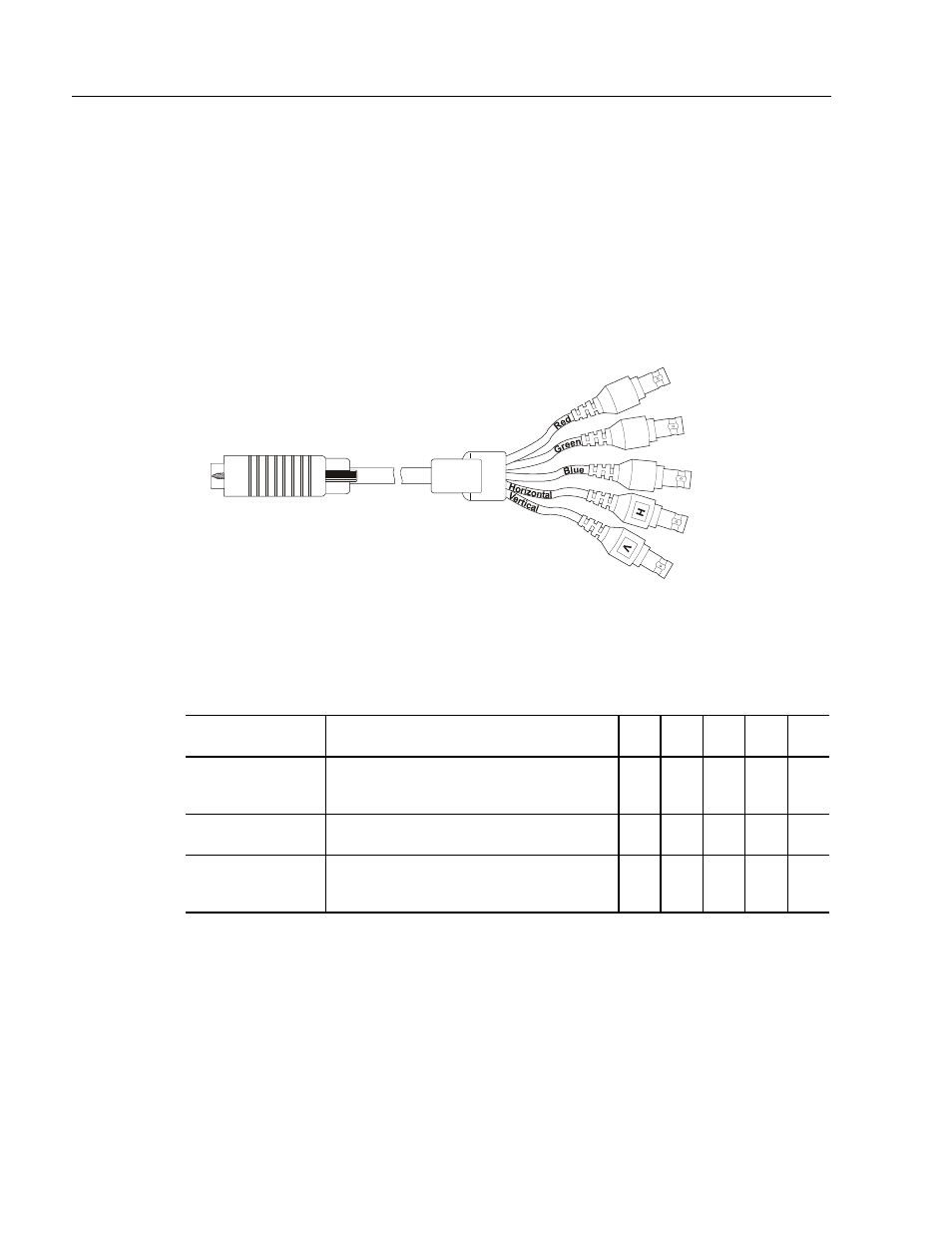

Figure 34
BNC Adapter Cable
This table describes the signal types you can use with the connectors:
Table J
BNC Signal Types
BNC Signal Type Description R G B HS/
CS
VS
Sync-on-Green Use the three video connectors. Horizontal
and vertical syncs are supplied on the green
video line. X X X
Composite Sync Use the three video connectors plus the
horizontal sync/composite sync input. X X X X
Separate
Horizontal and
Vertical Sync Use the three video connectors plus the
horizontal sync/composite sync and vertical
sync input. X X X X X
BNC Adapter Cable
