Versa mount monitor dimensions (6185-v) – Rockwell Automation 6185-V Industrial 18.1 Inch Flat Panel Monitor User Manual User Manual
Page 18
18
Industrial 18.1" Flat Panel Monitor
Publication 6185-UM001B-EN-P

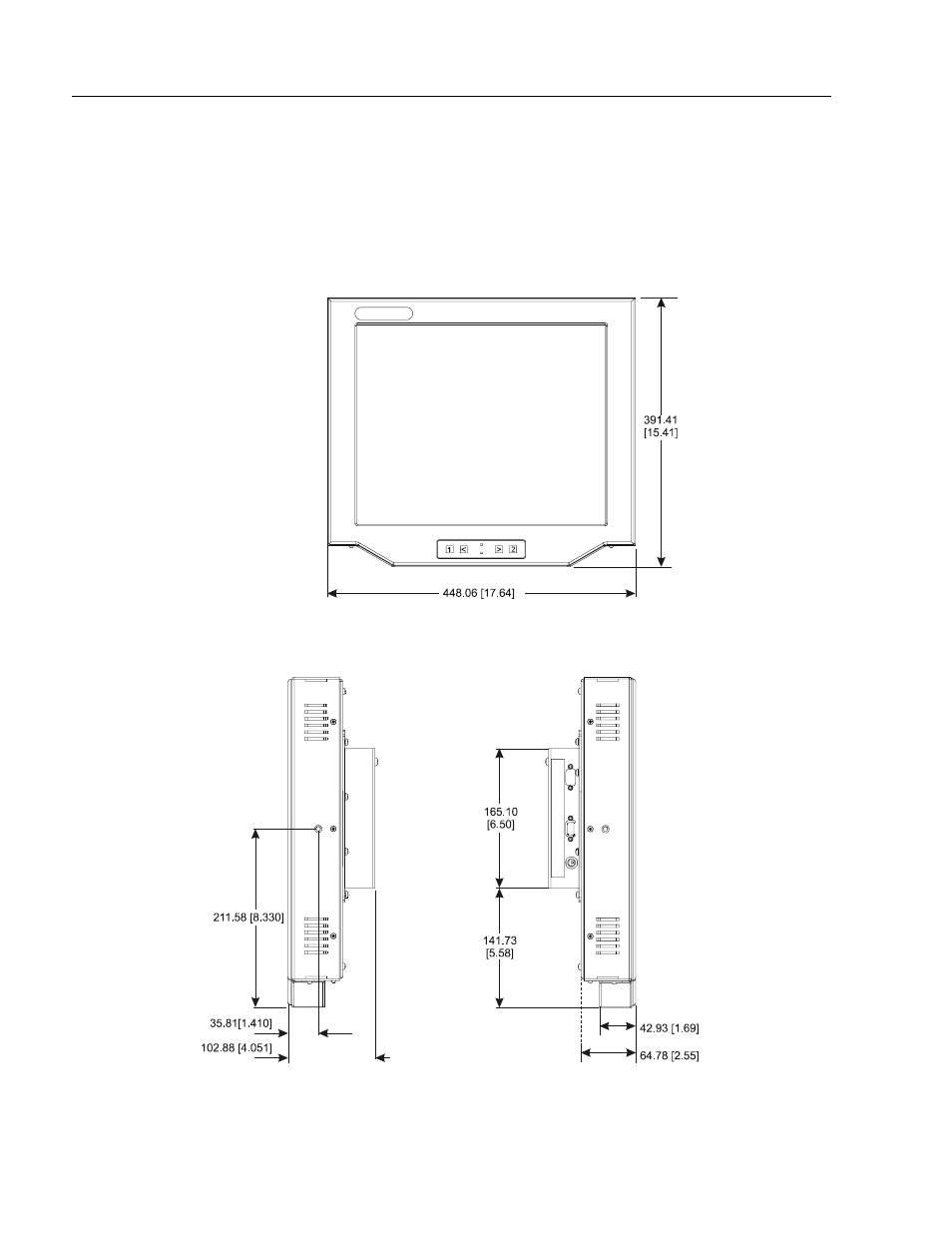

Versa Mount Monitor Dimensions (6185-V)
The figures below show the dimensions of the Versa mount monitor
without mounting hardware. Units are in mm [inches].
Figure 10
Versa Mount Monitor Dimensions, Front
Figure 11
Versa Mount Monitor Dimensions, Side
