Page 14
14
Industrial 18.1" Flat Panel Monitor
Publication 6185-UM001B-EN-P
Rack Mount Dimensions (6185-N)
This section shows the dimensions of the rack mount unit. Use this
information to ensure you have adequate space to install the unit and
route cables. Units are in mm [inches].

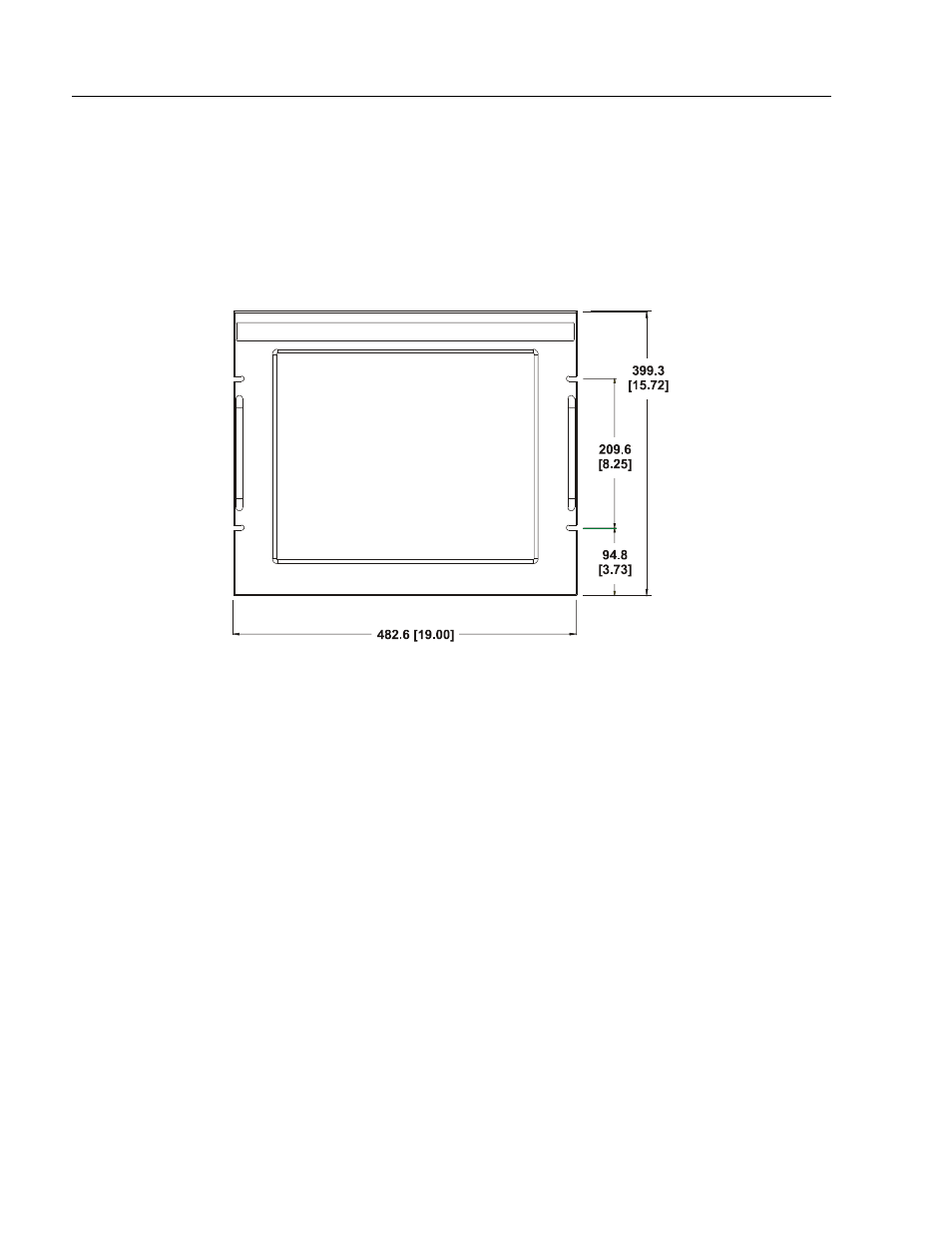

Figure 7
Rack Mount Dimensions (Front View)
