36 Industrial 18.1" Flat Panel Monitor
Publication 6185-UM001B-EN-P
This section describes how to operate the 6185 18.1" Flat Panel Monitor.
In addition, instructions for adjusting the luminance controls and
calibrating the video gain are provided for the 6185-D and 6185-N
models.
Control Identification
The figures below depict the location of the controls on the panel mount
(6185-D), rack mount (6185-N), and Versa mount (6185-V) units.

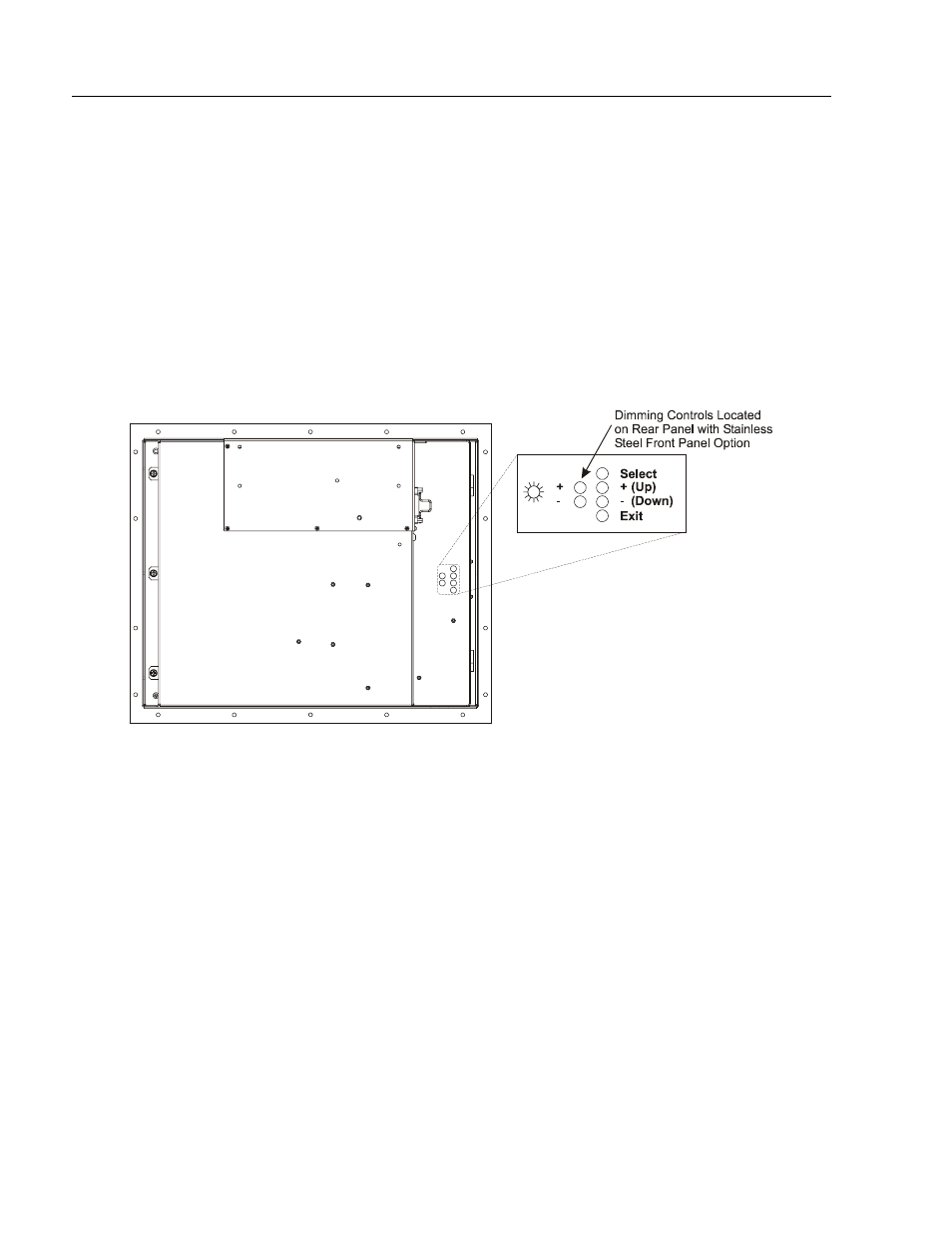

Figure 27
Back Panel Controls on the Panel Mount (6185-D) and Rack Mount
(6185-N) Units
Operating the 6185 18.1"
Flat Panel Monitor
