Appendix B: Video Cables Appendix B: Video Cables Appendix B: Video Cables Appendix B: Video Cables
You can use an HD-15 connector (all models) or a BNC adapter cable
(6185-V only) to connect the RAC6185 18.1" Flat Panel Monitor to the
host computer.
The HD-15 video cable you use with this monitor is equipped with a
conventional HD-15 connector at each end.
Note: The following figure is the view looking into the pin end of
the male connector or solder term end of the female
connector.

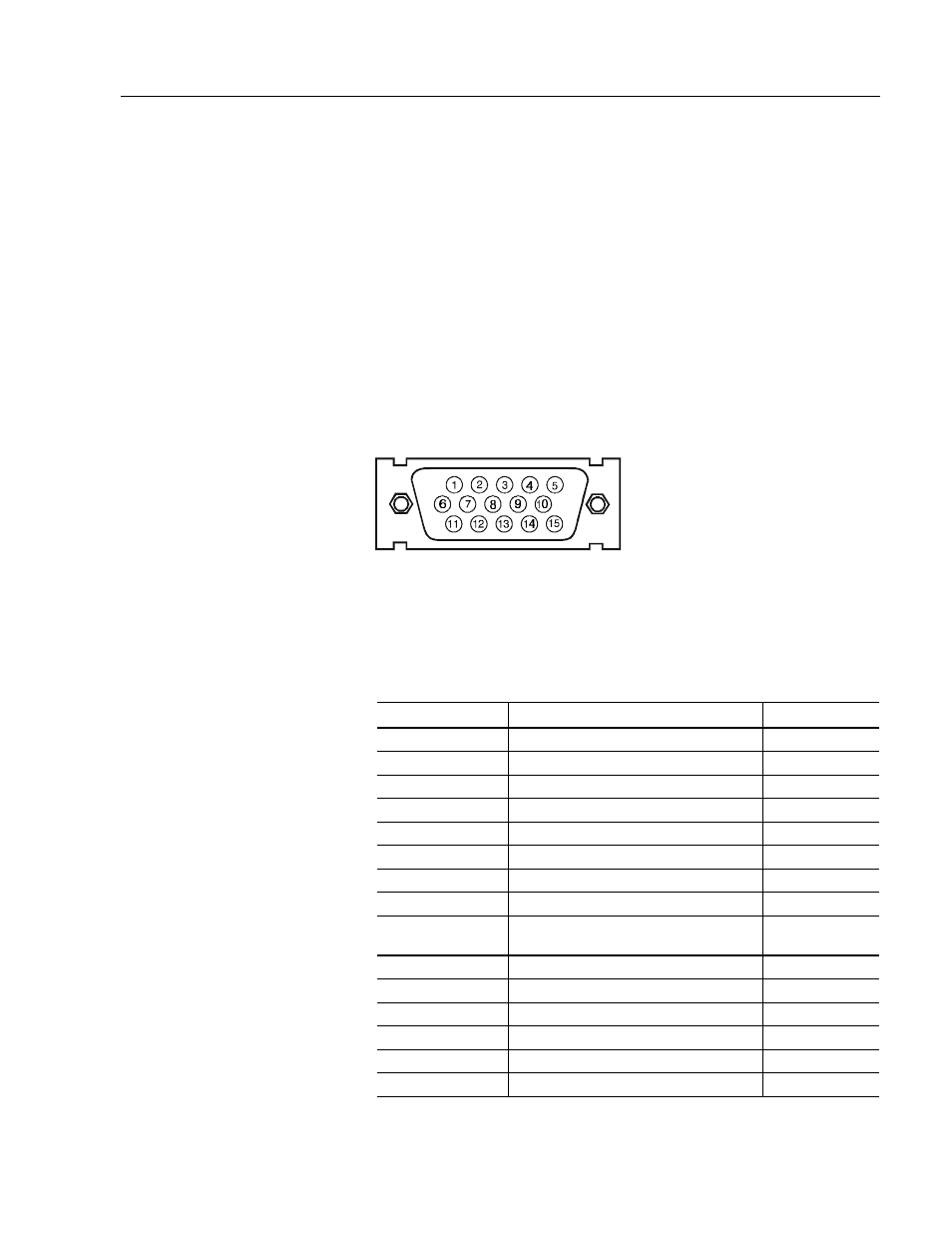

Figure 33
HD-15 Video Connector
The following table provides the pin numbers and corresponding pin
assignments for the HD-15 video connector with the DDC2B capability:
Table I
Standard HD-15 Video Cable
Monitor (Female) Signal Description Host (Male)
1 Red Video 1
2 Green Video 2
3 Blue Video 3
4 Not Used 4
5 Return 5
6 Red Video Ground 6
7 Green Video Ground 7
8 Blue Video Ground 8
9 Not Used (6185-D and 6185-N)
DDC +5V (6185-V) 9
10 Sync Ground 10
11 Not Used 11
12 Bi-Directional Data 12
13 Horizontal Sync 13
14 Vertical Sync (VCLK) 14
15 Data Clock (SCL) 15
HD-15 Connector
