Rockwell Automation 6185-V Industrial 18.1 Inch Flat Panel Monitor User Manual User Manual
Page 28
28
Industrial 18.1" Flat Panel Monitor
Publication 6185-UM001B-EN-P
The RAC6185 18.1" Flat Panel Monitor has connectors for attaching
cables to the monitor. The following figure shows the location of the
connectors on the monitor.
Note:
Some connectors on your monitor may differ from
these illustrations.

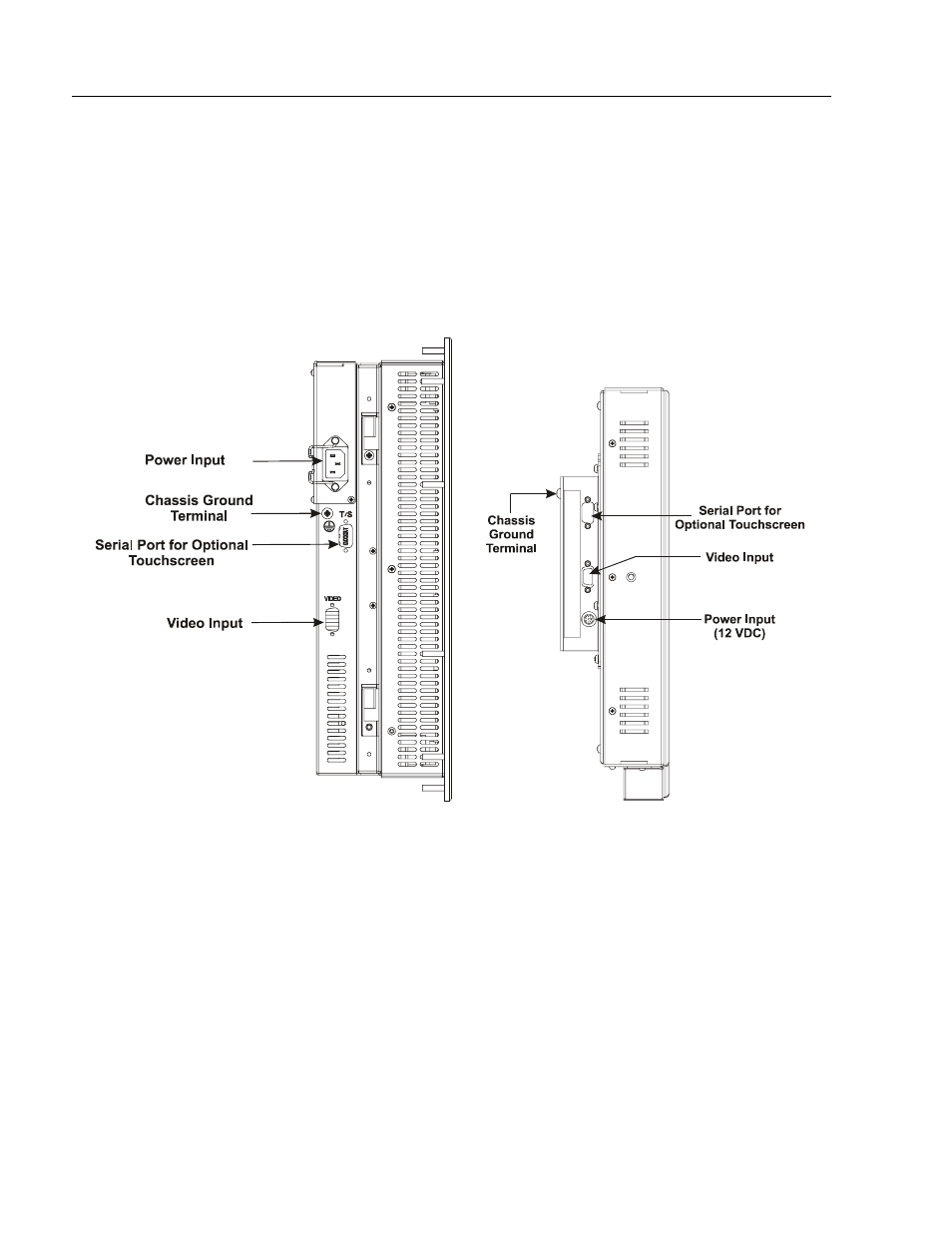

Figure 23
Monitor Connections
Connecting the RAC6185
18.1" Flat Panel Monitor
(All Models)
