Installation and Wiring
2-21

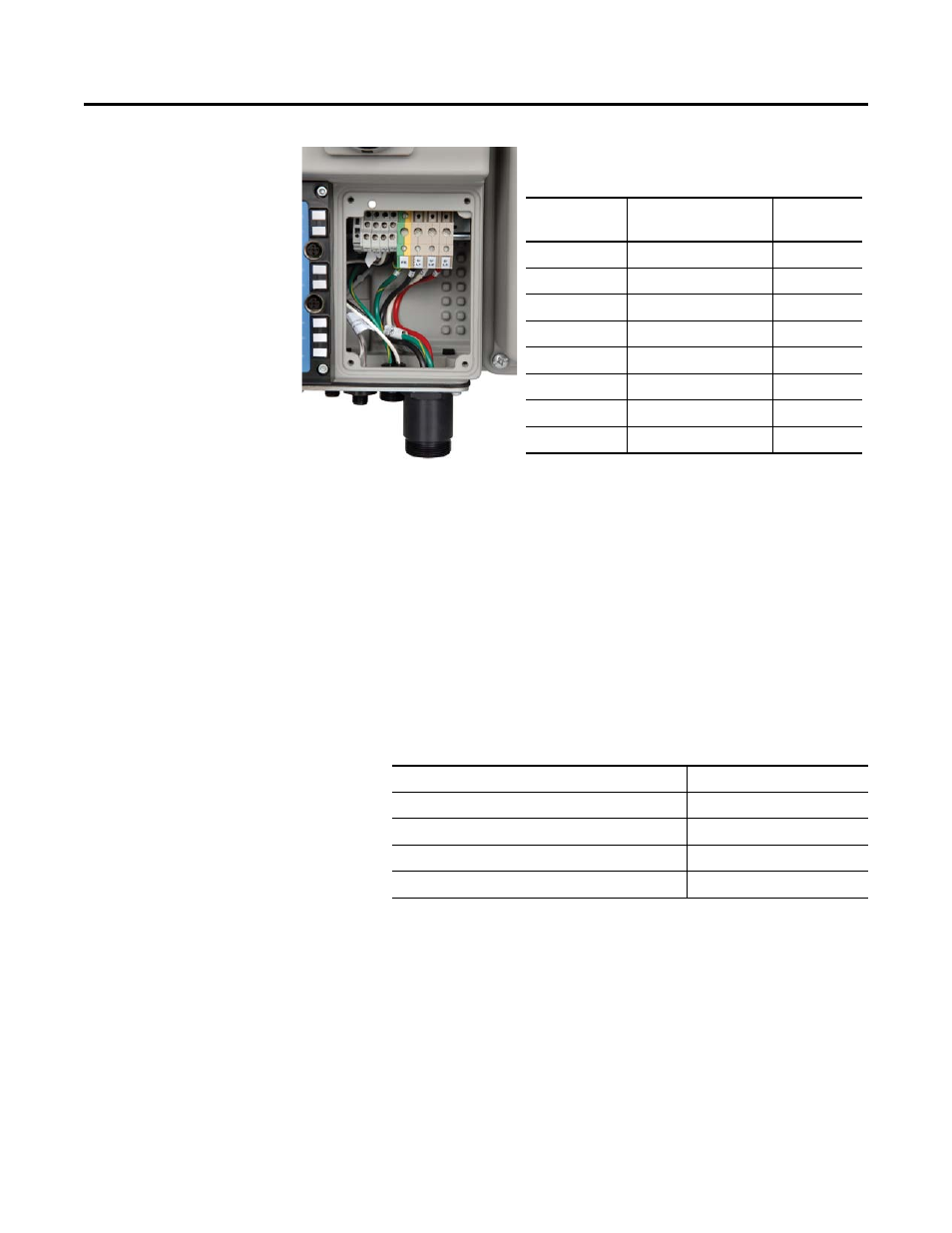

Terminal Designations
ArmorConnect Cable Ratings
The ArmorConnect power media cables are rated per UL Type TC
600V 90 °C Dry 75 °C Wet, Exposed Run (ER) or MTW 600V 90 °C
or STOOW 105 °C 600V - CSA STOOW 600V FT2.
Branch Circuit Protection Requirements for ArmorConnect
Three-Phase Power Media
When using ArmorConnect three-phase power media, only fuses can
be used for the motor branch circuit protective device, for the group
motor installations. The following fuse types are recommended: Class
CC, T, or J type fuses.
Terminal
Designations
Description
Color Code
SM1
Safety Monitor Input
Brown
SM2
Safety Monitor Input
White
A1 (+)
Control Power Input
Brown
A2 (-)
Control Power Common Blue
PE
Ground
Green/Yellow
1/L1
Line Power - Phase A
Black
3/L2
Line Power - Phase B
White
5/L3
Line Power - Phase C
Red
Maximum Ratings
Voltage (V)
480Y/277
Sym. Amps RMS
65 kA
Time Delay Fuse
50 A
Non-Delay Fuse
100 A
