Installation and Wiring 2-15
Wiring Power and Ground Wiring
Table 2.1 provides the power and ground wire capacity and the
tightening torque requirements. The power and ground terminals will
accept a maximum of two wires per terminal.
Table 2.1 Power and Ground Wire, Size and Torque Specifications
Terminal Designations As shown in the next figures, the ArmorStart Distributed Motor Controller
contains terminals for power, control, safety monitor inputs, and ground
wiring. Access can be gained by removing the terminal access cover plate.

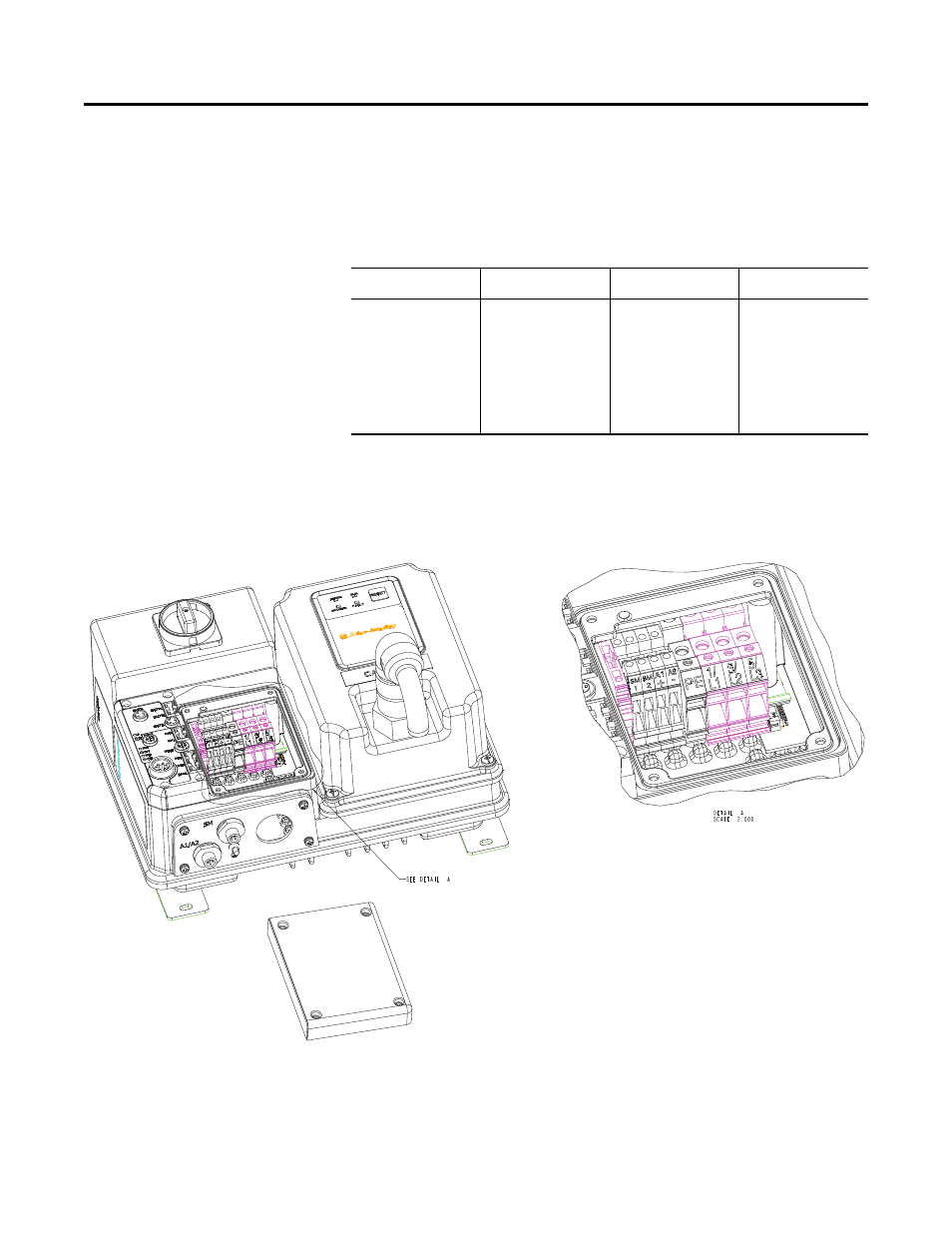

Figure 2.1 Bulletin 280 Power, Control, and Safety Monitor Input Terminals
Terminals Wire Size Torque Wire Strip Length
Power
and
Ground
Primary Terminal:
1.3…5.3 mm
2
(#16 …#10 AWG)
Secondary Terminal:
0.8…5.3 mm 2
(#18 …#10 AWG)
Primary Terminal:
10.8 lb•in
(1.2 N•m)
Secondary Terminal:
4.5 lb•in
(0.5 N•m)
0.35 in. (9 mm)
