5-2 HOA Keypad Operation

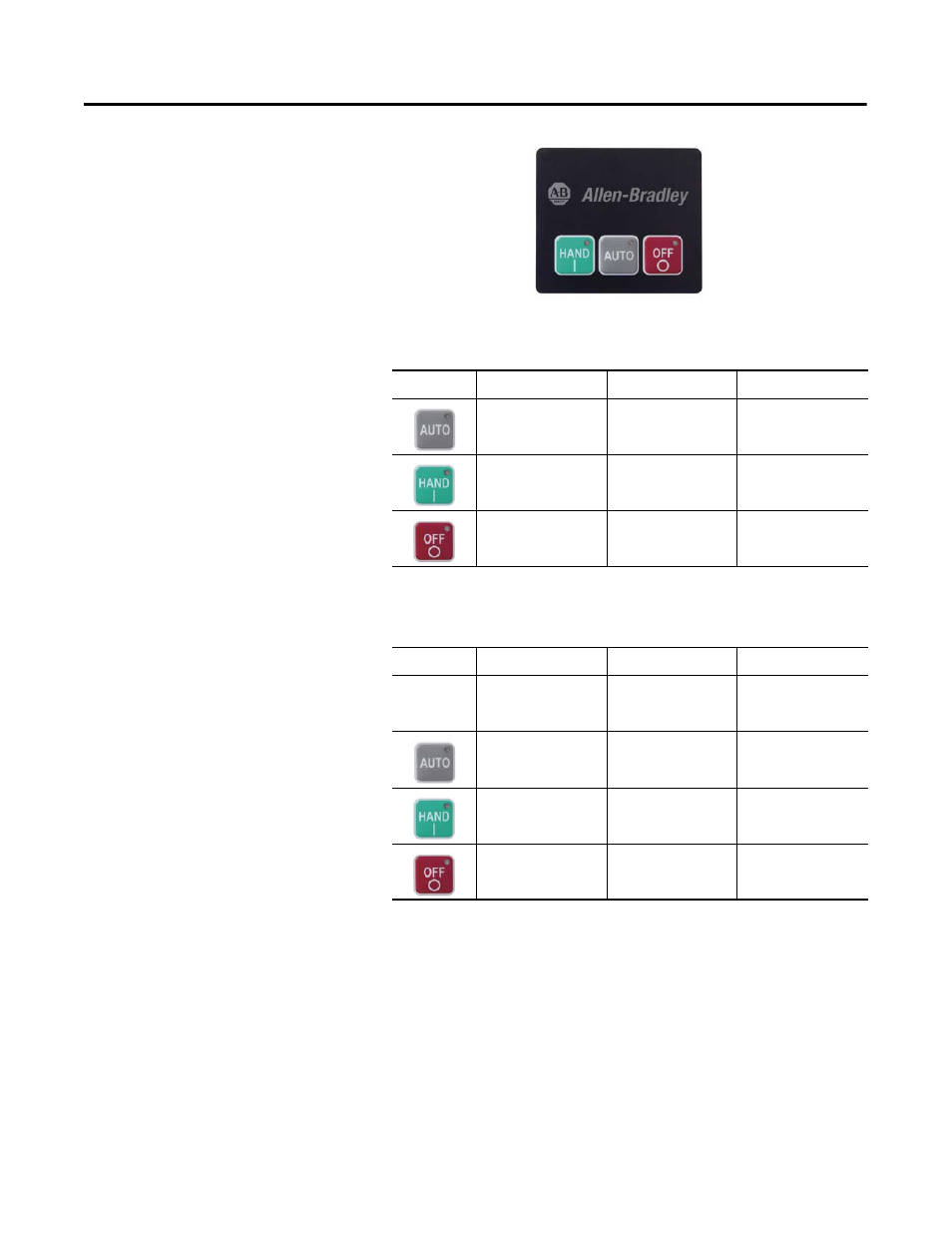

Figure 5.2 Bulletin 280 Hand -Off-Auto Selector Keypad
The following state transition matrix summarizes the HOA Keypad
when parameter 45 “Keypad Mode” is set to 1=momentary.
The following state transition matrix summarizes the HOA Keypad
when parameter 45 “Keypad Mode” is set to 0=maintained.
HAND STOP HAND FWD AUTO
Command motor off
and Transition to
“AUTO”
Ignore Ignore
Command motor ON
and Transition to
“HAND FWD”
Ignore Ignore
Ignore
Command motor OFF
and transition to
“HAND STOP”
Command motor off
and transition to
“HAND STOP”
HAND STOP HAND FWD AUTO
NO KEY
PRESSED
Ignore
Command motor off
and transition to
“HAND STOP”
Ignore
Command motor off
and Transition to
“AUTO”
Ignore Ignore
Command motor ON
and transition to
“HAND FWD”
Ignore Ignore
Ignore
Command motor off
and transition to
“HAND STOP”
Command motor off
and Transition to
“HAND STOP”
