Safe Limited Speed (SLS) Modes
Chapter 7
SLS with Door Monitoring
Wiring Example
This example illustrates wiring for SLS with door monitoring.

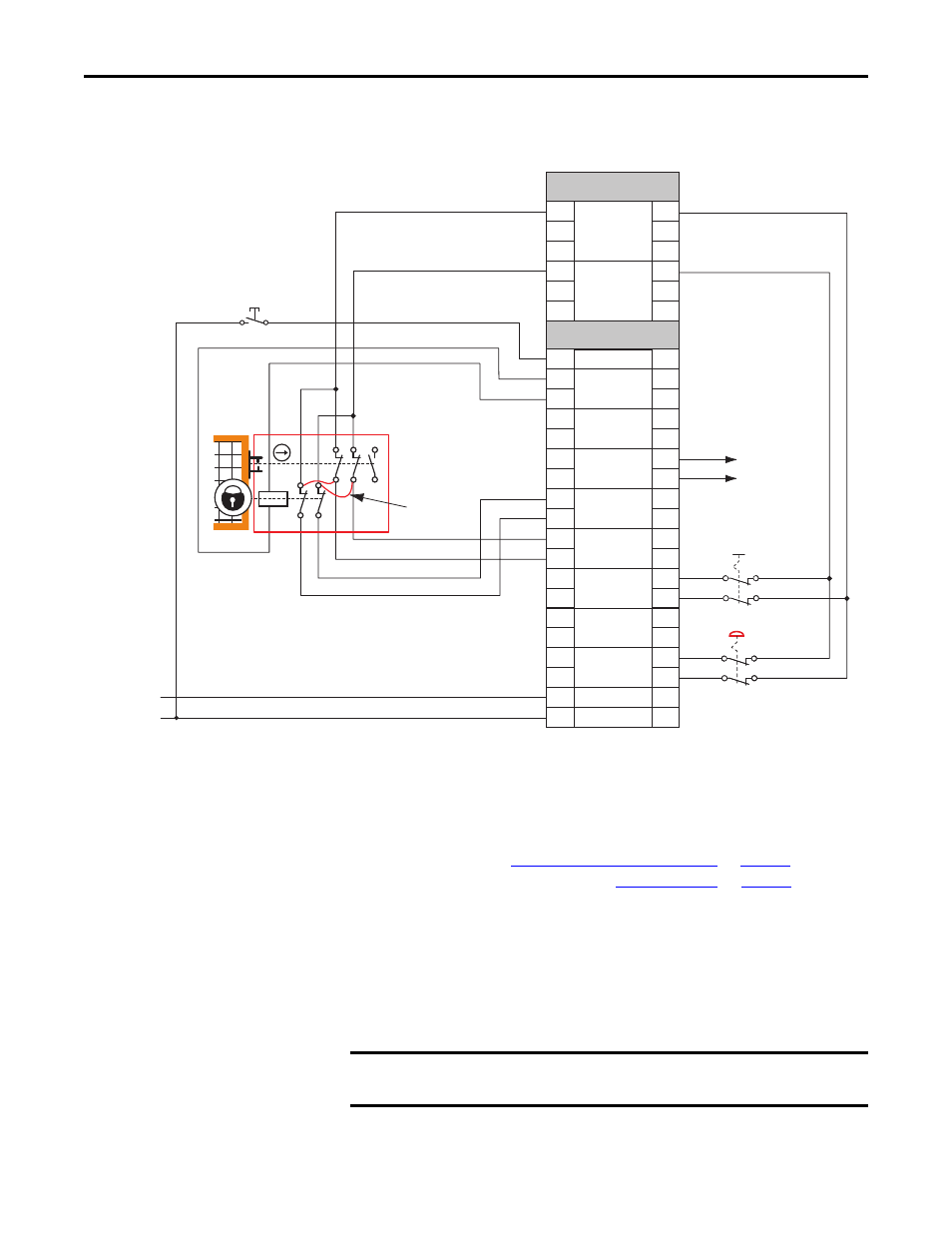

Figure 21 - Master, Safe Limited Speed with Door Monitoring (First or Single Unit)
(1) Lock monitoring connections are not required for Safe Limited Speed with Door Monitoring mode operation.
Safe Limited Speed with
Enabling Switch Monitoring
Mode
When properly configured for Safe Limited Speed with Enabling Switch
Monitoring, the safety option performs Safe Limited Speed (SLS) monitoring
functions as described in
in addition
to the Safe Stop functions as described in
In addition, the safety option monitors the Enabling Switch Monitor input
(ESM_In) after the Safe Limited Speed Monitoring Delay [LimSpd Mon Delay]
times out. Once the enabling switch is activated, the ESM_In input must remain
ON while Safe Limited Speed monitoring is active or an ESM Monitoring fault
occurs. An ESM Monitoring fault is a Stop Category fault, which initiates the
configured Safe Stop Type.
GND
S11
S11
S11
S21
S21
S21
TEST_OUT_0
TEST_OUT_1
+24V DC
TB1
TB2
S11
S11
S11
S21
S21
S21
A1
S12
S22
S72
S82
S52
S62
S32
S42
X32
X42
34
44
68
78
51
52
S34
A2
+24V
24V_COM
SS_IN_CHx
ESM_IN_CHx
SLS_IN_CHx
DM_IN_CHx
LM_IN_CHx
SS_OUT_CHx
SLS_OUT_CHx
DC_OUT_CHx
RESET_IN
A1
S12
S22
S72
S82
S52
S62
S32
S42
X32
X42
34
44
68
78
51
52
S34
A2
12 22 34
11 21 33
A1
A2
42
41
52
51
(1)
PowerFlex 750-Series
Safe Speed Monitor
Option Module
SLS
Request
SS
Request
Reset
Safety Stop
to Next Axis
(optional)
Remove (2)
Internal
Jumpers
Power to
Release
TLS3 GD2
440G-T27260
Safety Switch
IMPORTANT
When Safe Limited Speed Monitoring is inactive, the ESM_In input is not
monitored.
