Chapter 11 Configuration Examples
Example 1: Initial Security Group Settings

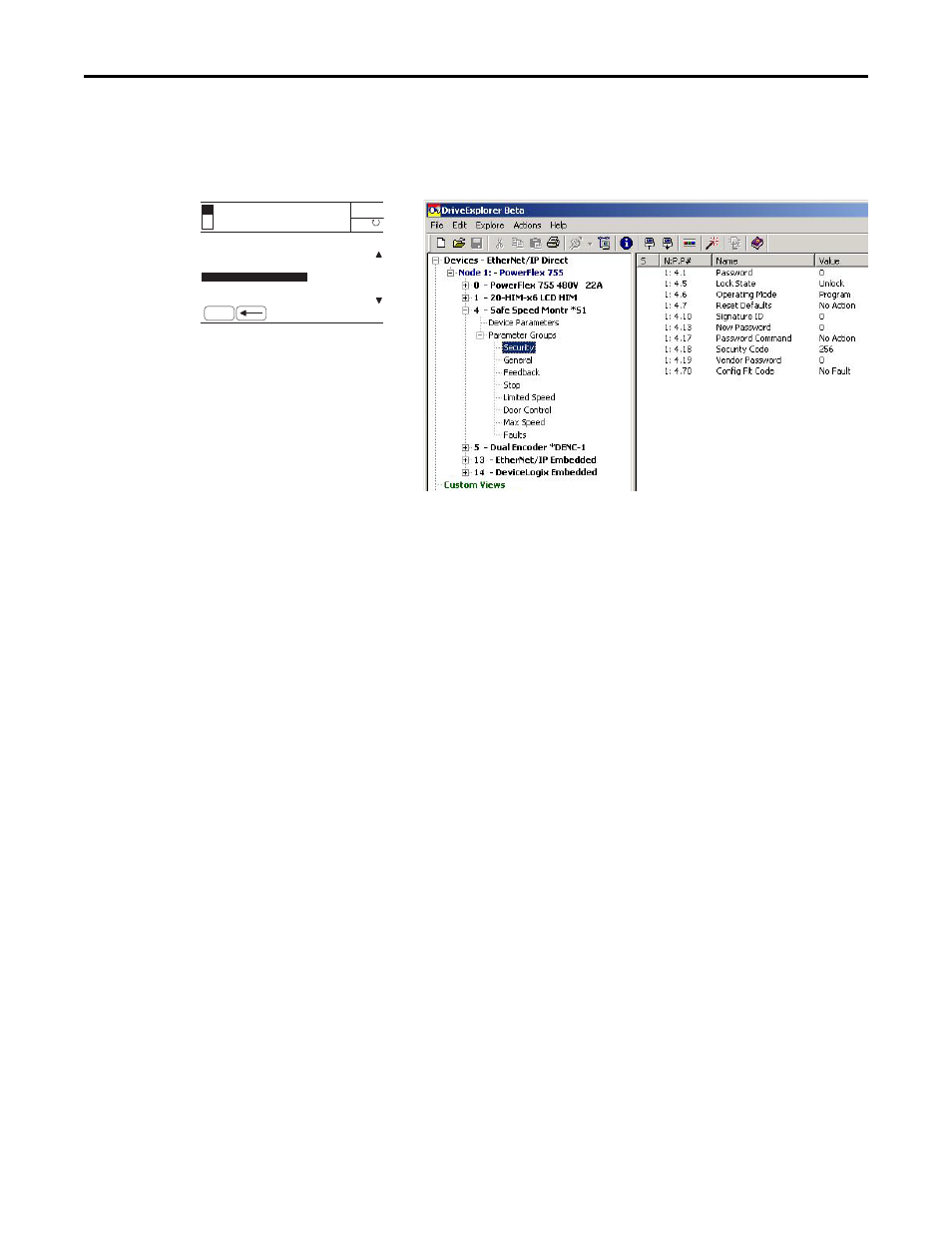

Figure 46 - Security Group Parameters
Follow these steps to put the safety option into Program mode for configuration.
1. From the Security group, choose the P5 [Lock State] parameter.
The default value of the Lock State parameter is 0 or unlocked.
2. If the safety option is locked (Lock State parameter value equals 1), set the
P5 [Lock State] parameter value to 0.
If an error occurs, a password has been configured to protect the safety
option configuration.
3. Choose the P1 [Password] parameter.
4. Type the password.
5. Choose the P6 [Operating Mode] parameter.
The default value is 0, which equals Program.
6. If the safety option is in Run mode (Operating Mode parameter equals 1),
set the P6 [Operating Mode] parameter to 0 to enable you to enter a new
configuration.
7. If you want to configure a password or change the password, choose the
P13 [New Password] parameter.
The default value is 0. Enter a value from 0…4,294,967,295.
8. Type the new password value.
9. Choose the P17 [Password Command] parameter.
10. Set the P17 [Password Command] parameter value to 1, which equals
Change Password (Change PW).
11. Go to the next section to set the parameters found in the General
parameters group.
Port 04: Param File-Group
FILE: Parameter Groups
Password
ESC
AUTO Not Enabled
0.000 Hz
F
GROUP: Security
Lock State
Operating Mode
HIM Screen Software Screen
