Rockwell Automation Publication 750-RM001F-EN-P - February 2012 45
Speed Monitoring I/O Signals Chapter 4

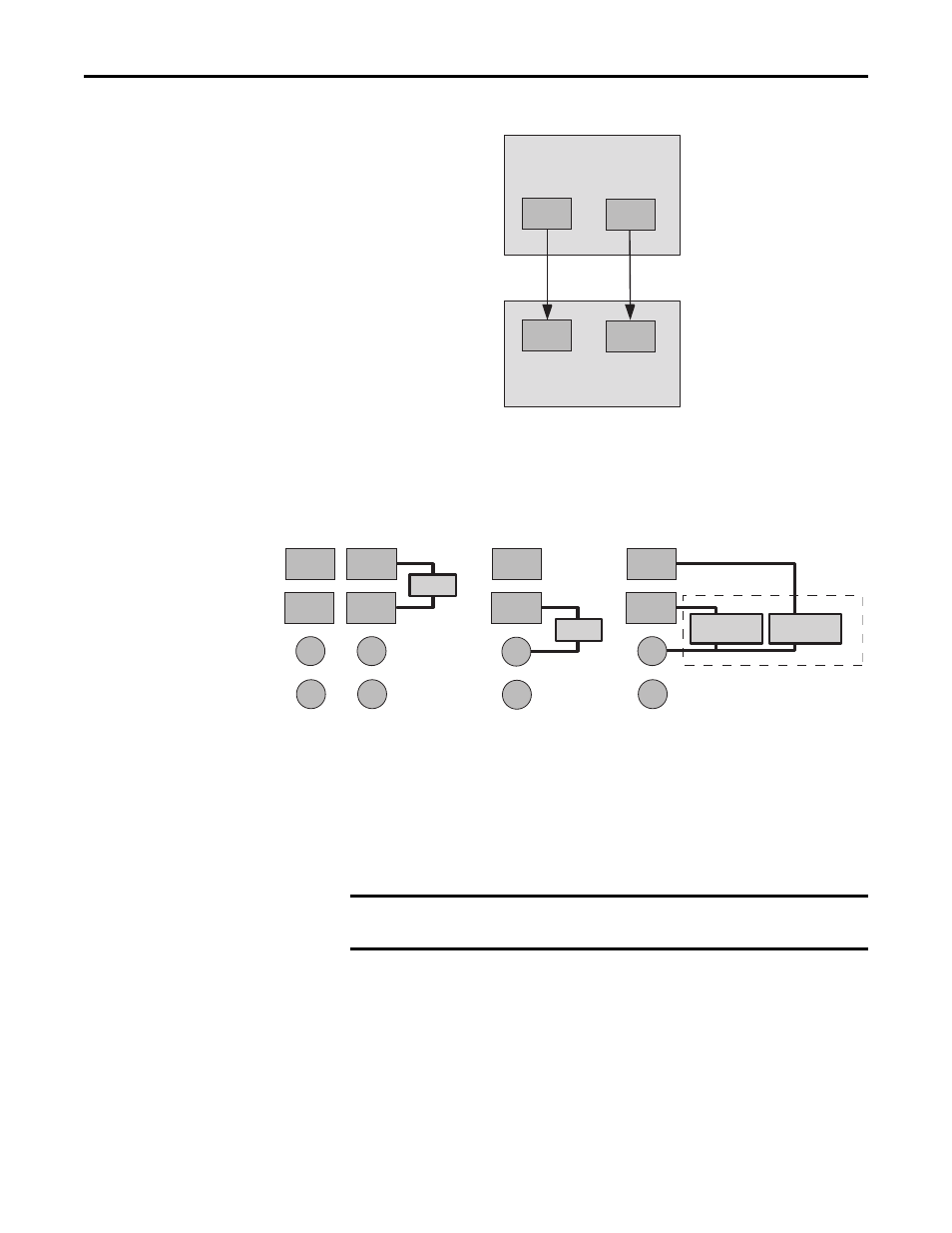

Figure 9 - Door Control Cascading Outputs
Only these wiring configurations, shown below, are supported for the Door
Control output.
Figure 10 - Door Control Output Wiring
(1) When wired as a source for a safety input, current is limited to 20 mA per output.
(2) For example, SmartGuard 600 controller, Guard I/O module.
Short-circuits of the output loop to ground or 24V will be detected. For cascaded
outputs, cross loops will also be detected.
The outputs are pulse-tested when the P74 [Door Out Mode] parameter is
configured for pulse-testing.
DM_IN_CH0 DM_IN_CH1
DC_OUT_CH0 DC_OUT_CH1
Safety Option (Master)
Safety Option (Slave)
TB2-51 TB2-52
TB2-S32 TB2-S42
+
-
+
-
+
-
+
-
No
Load
Bi-polar
Load
Single-ended
Load
Door Status 2-Channel
Source
(1)
+24V DC
Door Control
Sourcing Output
Door Control
Sinking Output
+24V DC Common
Load
Load Input Circuit Input Circuit
TB2-52 TB2-52
TB2-51 TB2-51
TB2-52 TB2-52
TB2-51 TB2-51 (2)
IMPORTANT If you disable pulse-testing on this output, the achievable SIL, Category, and PL
ratings of your entire safety system are reduced.
