Chapter 11 Configuration Examples
3. Choose the P1 [Password] parameter.
4. Type the password.
5. Choose the P6 [Operating Mode] parameter.
The default value is 0, which equals Program.
6. If the safety option is in Run mode (Operating Mode parameter equals 1),
set the P6 [Operating Mode] parameter to 0 to enable you to enter a new
configuration.
7. If you want to configure a password or change the password, choose the
P13 [New Password] parameter.
The default value is 0. Enter a value from 0…4,294,967,295.
8. Type the new password value.
9. Choose the P17 [Password Command] parameter.
10. Set the P17 [Password Command] parameter value to 1, which equals
Change Password (Change PW).
11. Go to the next section to set the parameters found in the General
parameters group.
Example 2: General Group Settings

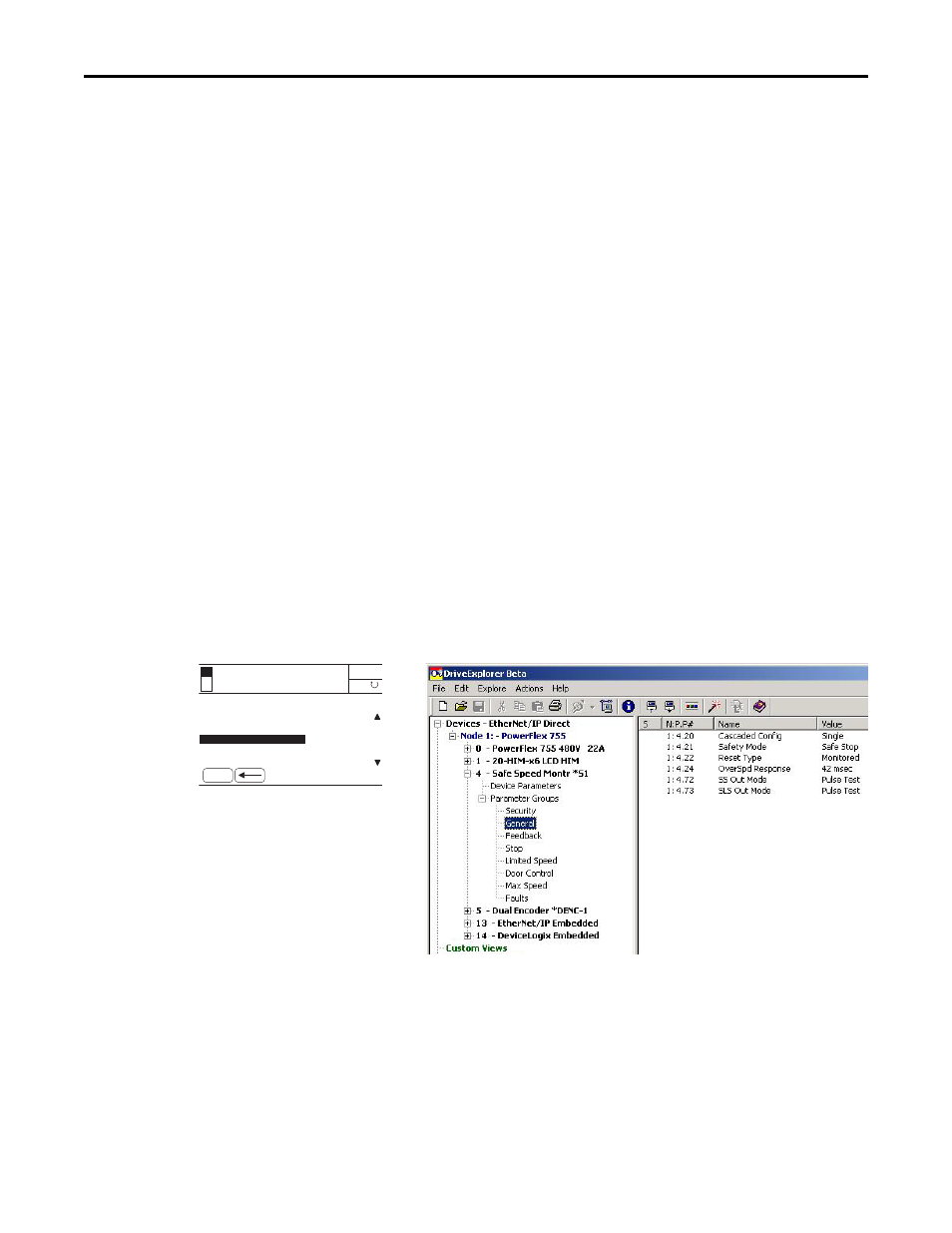

Figure 54 - General Group Parameters
Follow these steps to configure the general operation of the safety option.
1. From the General group, choose the P20 [Cascaded Config] parameter.
2. Set the P20 [Cascaded Config] parameter to 0 (default) to configure the
safety option as a Single unit.
3. Choose the P21 [Safety Mode] parameter.
The default setting is 1, which equals Safe Stop.
Port 04: Param File-Group
FILE: Parameter Groups
Cascaded Config
ESC
AUTO Not Enabled
0.000 Hz
F
GROUP: General
Safety Mode
Reset Type
HIM Screen Software Screen
