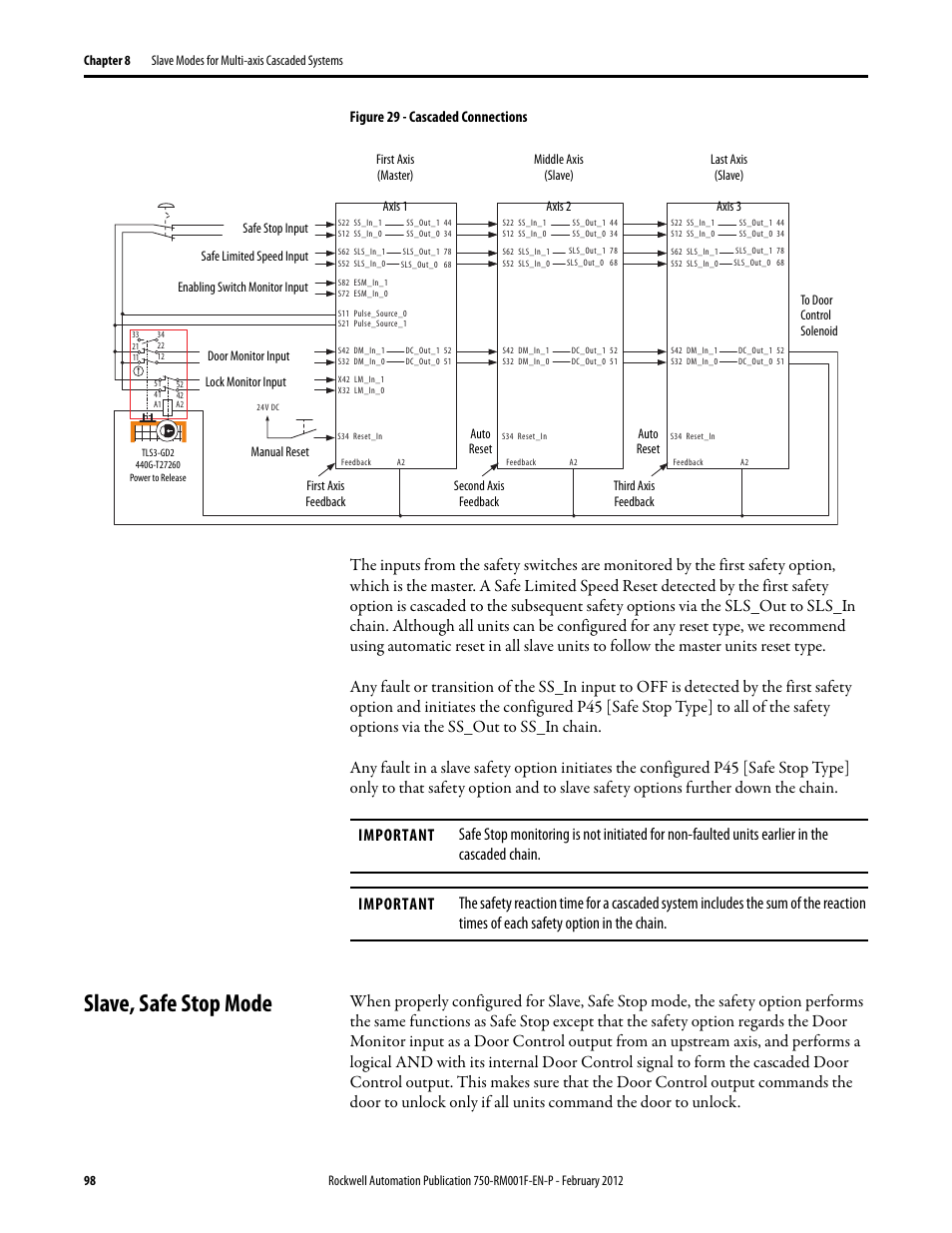

Slave, safe stop mode, Figure 29 - cascaded connections – Rockwell Automation 21G PowerFlex 750-Series AC Drives Reference Manual User Manual
Page 98
