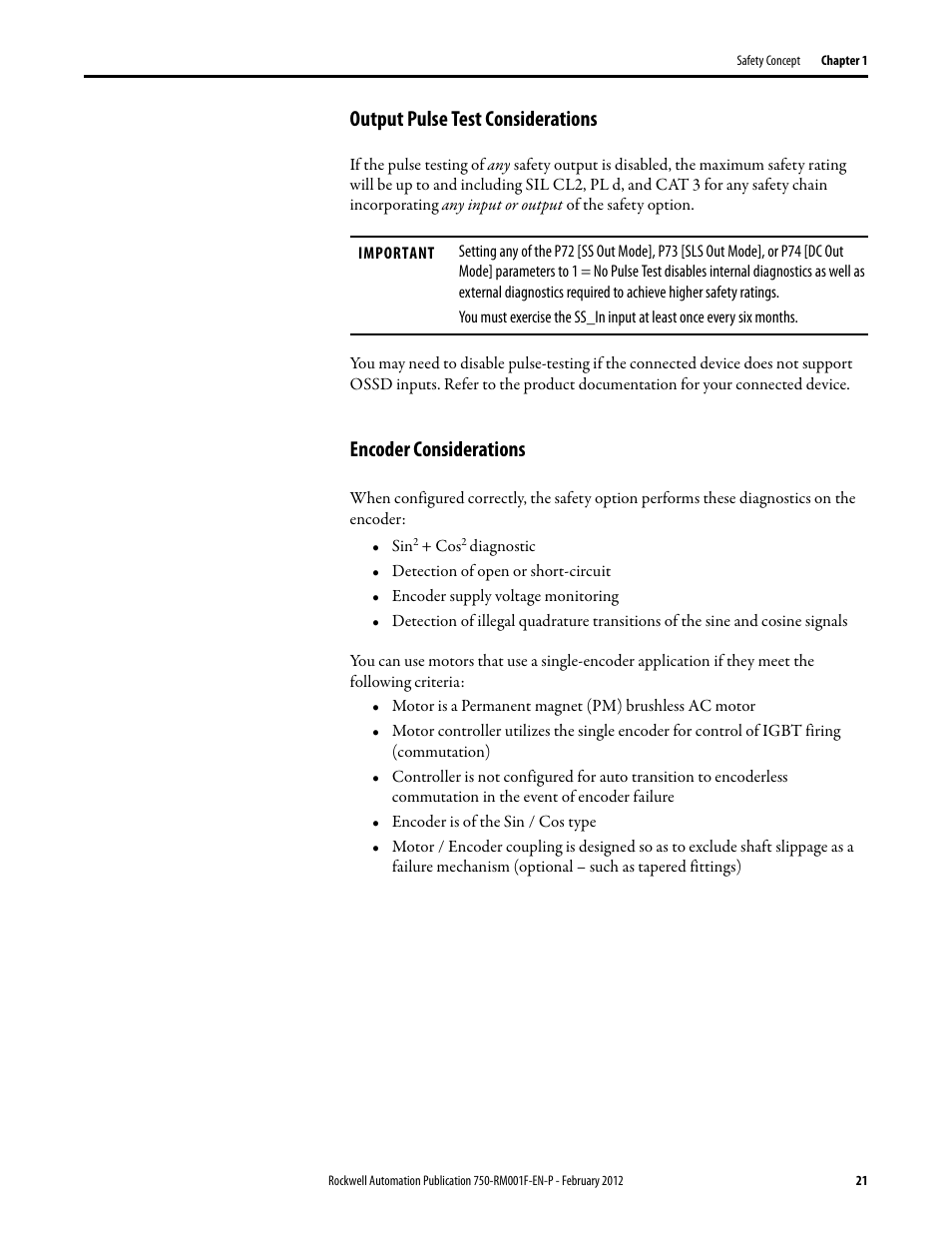

Output pulse test considerations, Encoder considerations – Rockwell Automation 21G PowerFlex 750-Series AC Drives Reference Manual User Manual
Page 21
