Chapter 4 PAS
Application Software Configuring Recorders
Series PM174 Powermeters 89
Configuring Recorders
The PM174 is provided with a 1-Megabyte onboard non-
volatile memory for data, event and waveform recording.
Before using recorders, the device memory should be
partitioned between log files. The device memory is fully
configurable. You can define how much memory to allocate for
each log file. If you want to change the factory settings, follow
the guidelines in the section below.
Configuring Device Memory
The device memory can be partitioned for a total of 20 log
files:
• Event log
• 16 Data logs
• 2 Waveform logs
• IEEE 1159 Power Quality log

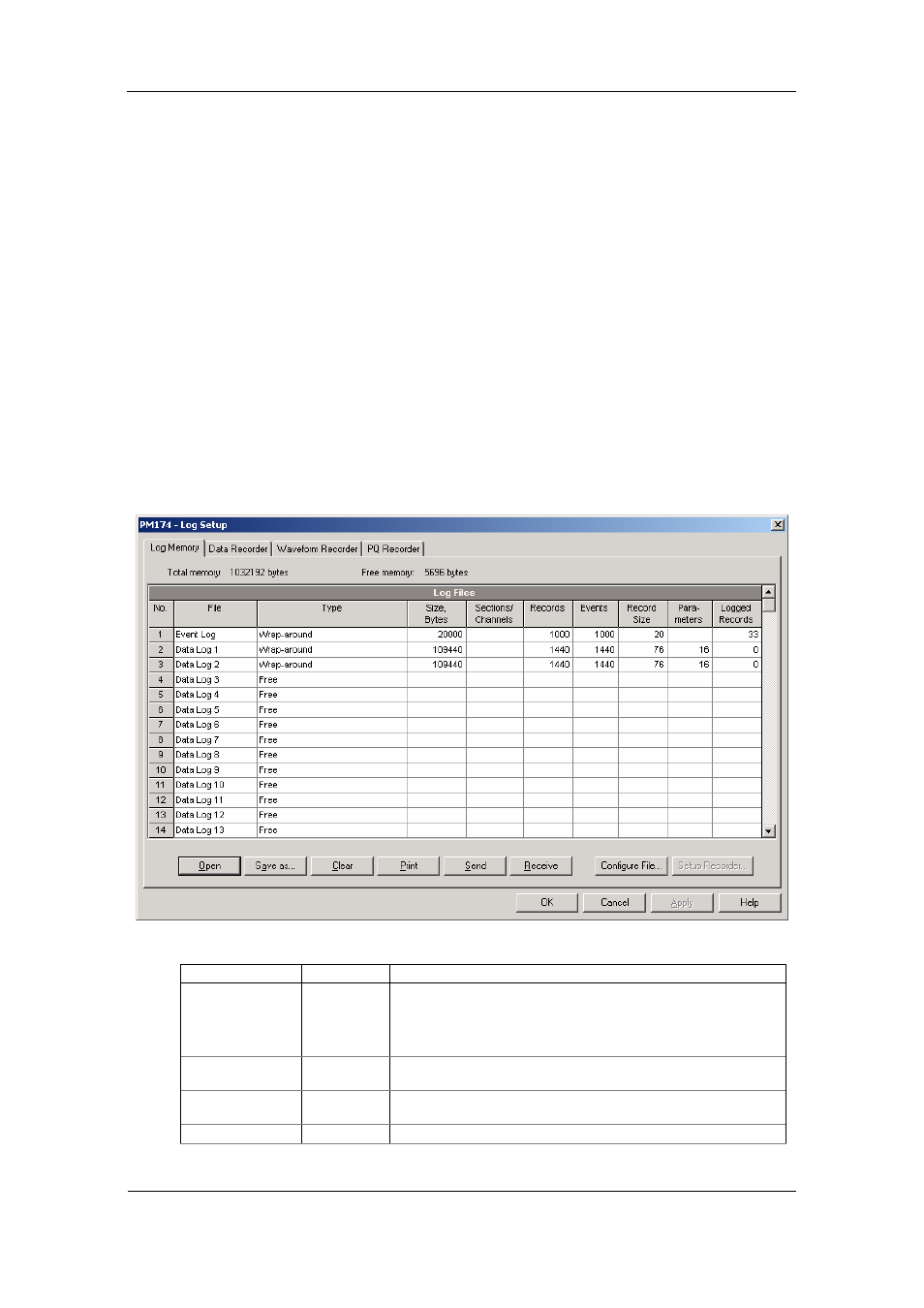

To view the present device memory settings, select
Memory/Log from the Meter Setup menu, and then click on the
Log Memory tab.
The following table lists available file options.
Option Range Description
Type Wrap-around
Non-wrap
TOU Daily
Profile
Defines the file behavior when it is filled up.
Wrap-around: recording continues over the oldest records.
Non-wrap: recording is stopped until the file is cleared.
TOU Daily Profile: TOU daily profile data log (only for Data log #16).
Size The memory size allocated to the file. Set automatically depending on
the size of the records and the number of records in the file.
Sections/Channels 0-14 The numbers of sections in a multi-section TOU profile data log file, or
the number of recording channels in a waveform log file
Num. of Records 0-65535 Allocates the file memory for predefined number of records
