Chapter 4 PAS
Application Software Configuring Summary Energy and TOU
Registers
Series PM174 Powermeters 85
Configuring Summary Energy and TOU
Registers
The PM174 provides 8 total (summary) energy and 8
concurrent tariff energy and maximum demand registers that
can be linked to any internal energy source or to any external
pulse source that delivers pulses through the device digital
inputs.
The meter tariff structure supports 8 different tariffs using an
arbitrary tariff schedule. A total of 4 types of days and 4
seasons are supported with up to eight tariff changes per day.
The meter can provide automatic daily profile recording for
total and tariff energy and maximum demand registers.
By default, the billing registers in your meter and the tariff
system are not operational. To activate the summary/tariff
registers or to change the profile for the first billing register:
1. Link the billing registers to the respective energy sources,
and then configure the options for these registers like
whether the only totalization or both total and tariff
registers would be used, and whether daily profiling
should be enabled for the energy usage and maximum
demand registers.
2. Configure the daily tariff schedule using the TOU daily
profiles for all types of days and seasons.
3. Configure the season tariff schedule using the TOU
calendar.
Setting up Total and Tariff Registers

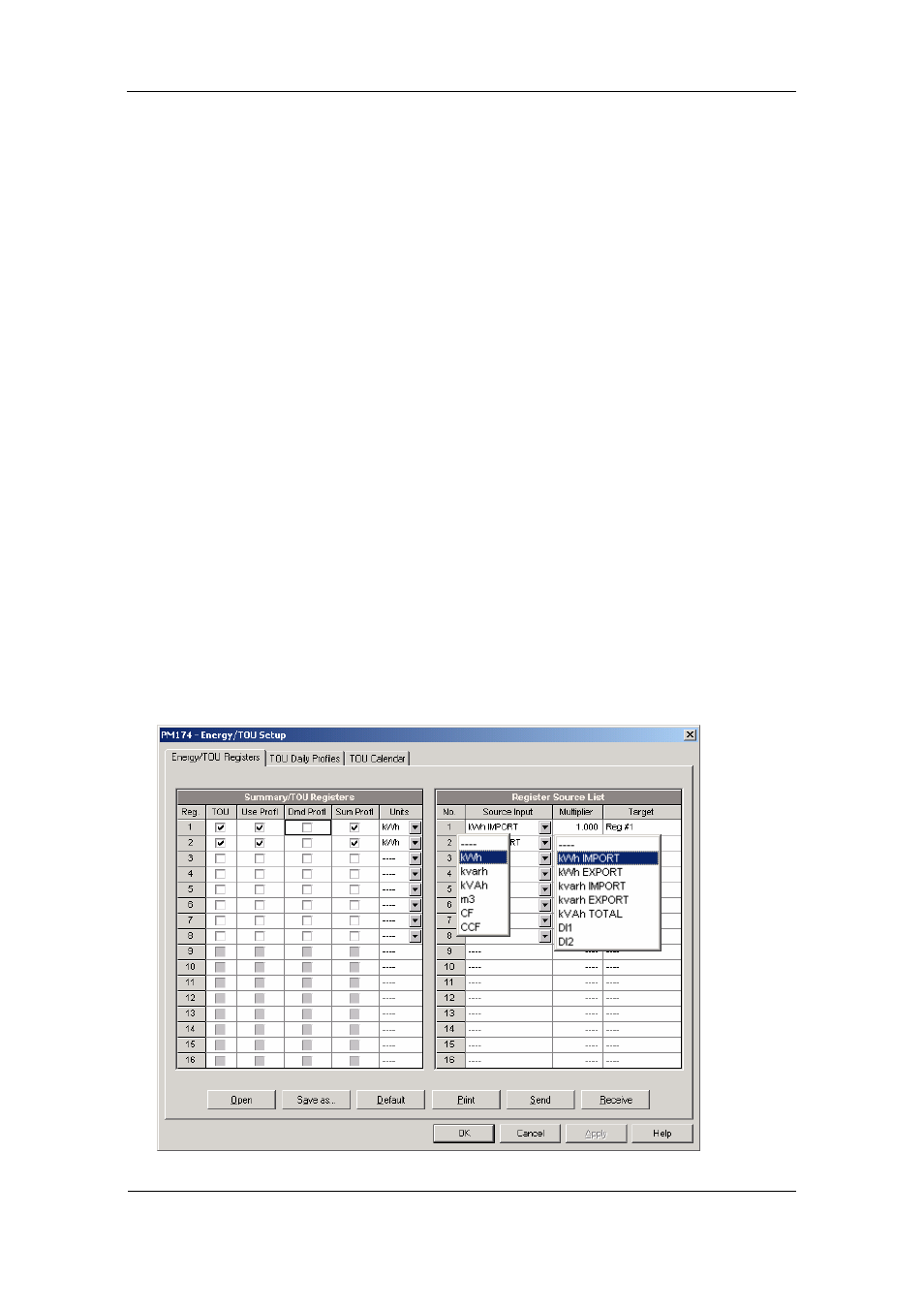

To configure the device total (summary) and TOU registers,
select Energy/TOU from the Meter Setup menu.
