Chapter 3 Display
Operations Using the Menus
Series PM174 Powermeters 43
1. Press the SELECT button to activate
the OPS window.
2. Press the ENTER button to enter the
main menu.
To change the meter setup, or to clear the accumulated
values:
1. Press the SELECT button to activate
the CHG window.
2. Press the ENTER button to enter the
main menu.
Entering the Password
The setup change menu can be secured by a four-digit user
password. The meter is primarily shipped with the password
preset to 0 and password protection disabled. You can change
the password and enable password protection through the
Access Control menu (see Meter Security).
If authorization is not required, just press the ENTER button to
move to the Main menu; otherwise you should enter a correct
password to be authorized to access the meter setup.

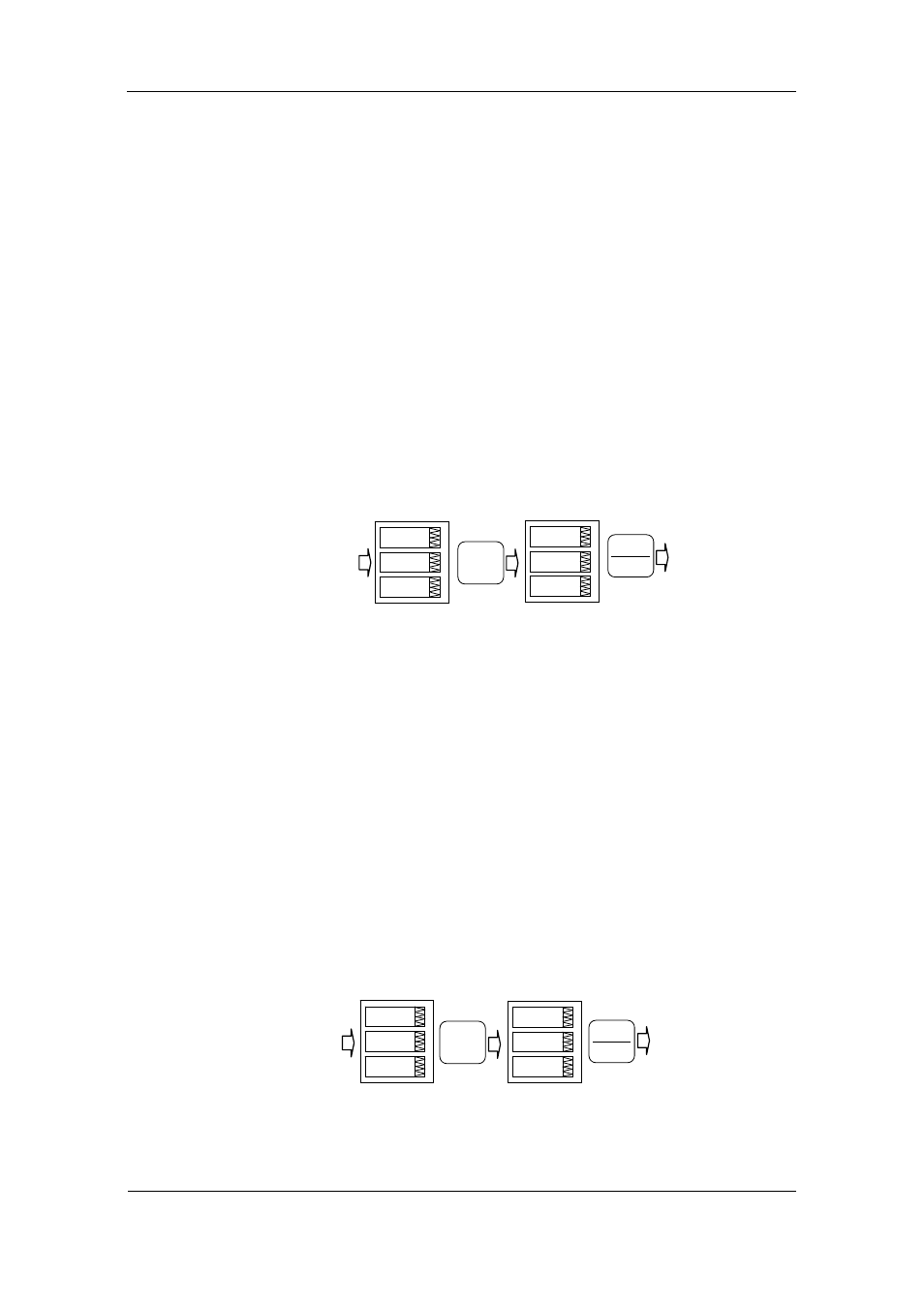

To enter the password:
1. Adjust the first digit with the UP and
DOWN arrow buttons.
2. Press the SELECT button to advance
to the next digit.
3. Adjust the remaining password digits in
the same manner.
4. Press ENTER to confirm the password.
If the password entered is correct, you move to the Main
menu, otherwise you return to the previous menu.
Selecting the OPS or CHG entry moves you to the Main menu
that is represented by two entries: the upper window displays
a secondary menu list, while the bottom item is an assisting
exit window.
Selecting a Menu Entry
To select a menu entry from the menu list:
1. Highlight the upper item by pressing the SELECT button.
2. Scroll through the menu list by pressing briefly the UP and
DOWN arrow buttons until the desired menu entry
appears.
3. Press the ENTER button.
PASS
0000
ENERGY
ENTER
PASS
0201
S
rSt
ESC
S
bASc
ESC
ENERGY
ENTER
