Chapter 4 PAS Application
Remote Device Control
106
Series PM174 Powermeters

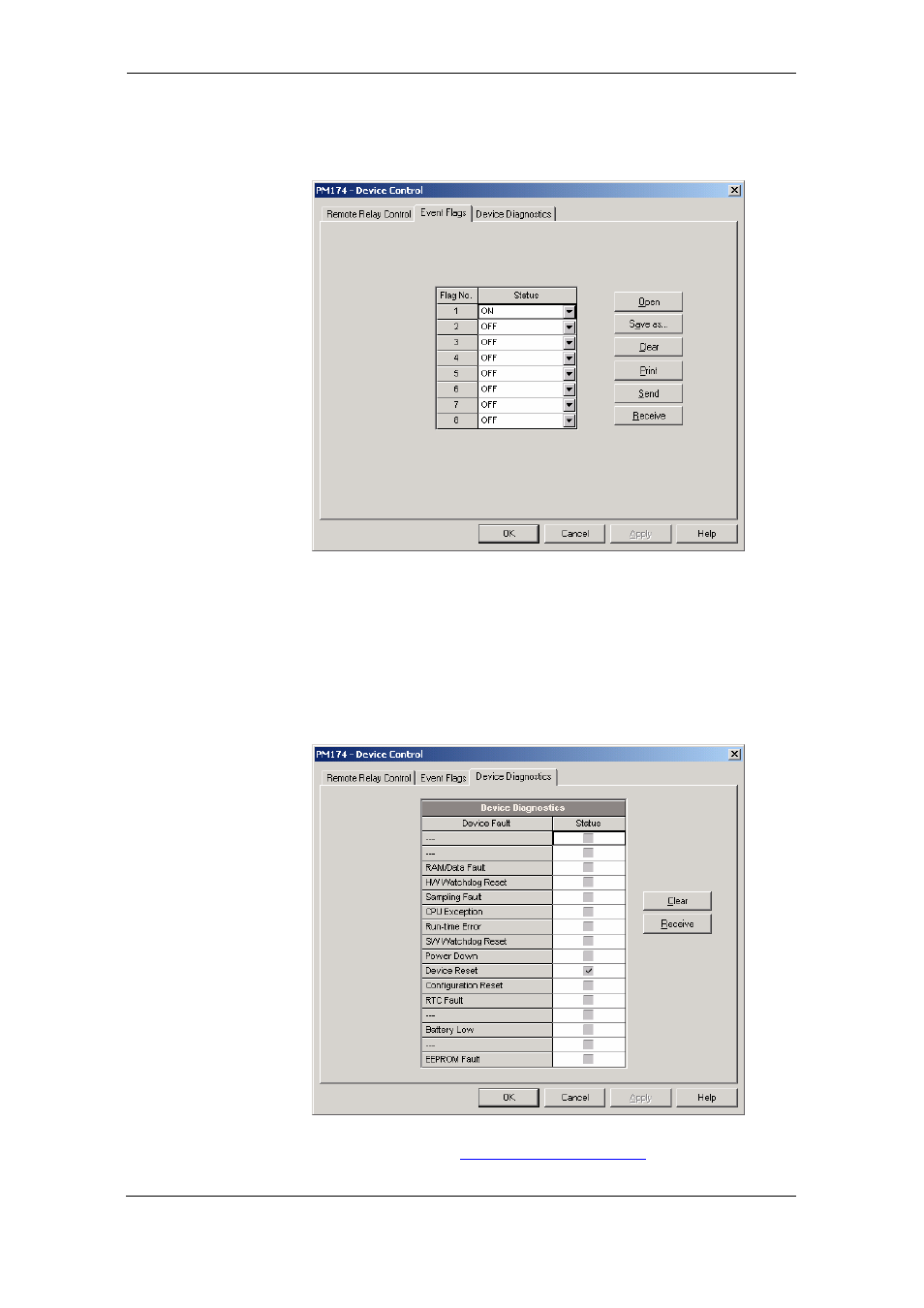

1. From the “Status” box, select the
desired flag status.
2. Click on Send.
Device Diagnostics
Device diagnostic messages may appear as a result of the
PM174 built-in diagnostic tests performed during a start-up
and device operation.
To enter the Device Diagnostics dialog, check the On-line
button on the PAS toolbar, select Device Control from the
Monitor menu, and then click on the Device Diagnostics tab.
All diagnostic events are recorded to the Event log and can be
inspected via PAS (see
). The
diagnostics status is also recorded to a non-volatile register,
