Electrical installation
Connection of system bus (CAN)
6
l
37 LDEDS−CCU210B EN 4.0
Connection to the PC
After installing the "Global Drive Control" software program and the device description
file, you can connect the device to your PC.
1. Remove the black cover on the control end of the device.
Device in a power range of 1.5 kW and 2.2 kW Devices in a power range of 0.75 kW
CCU210_002A CCU210_002G

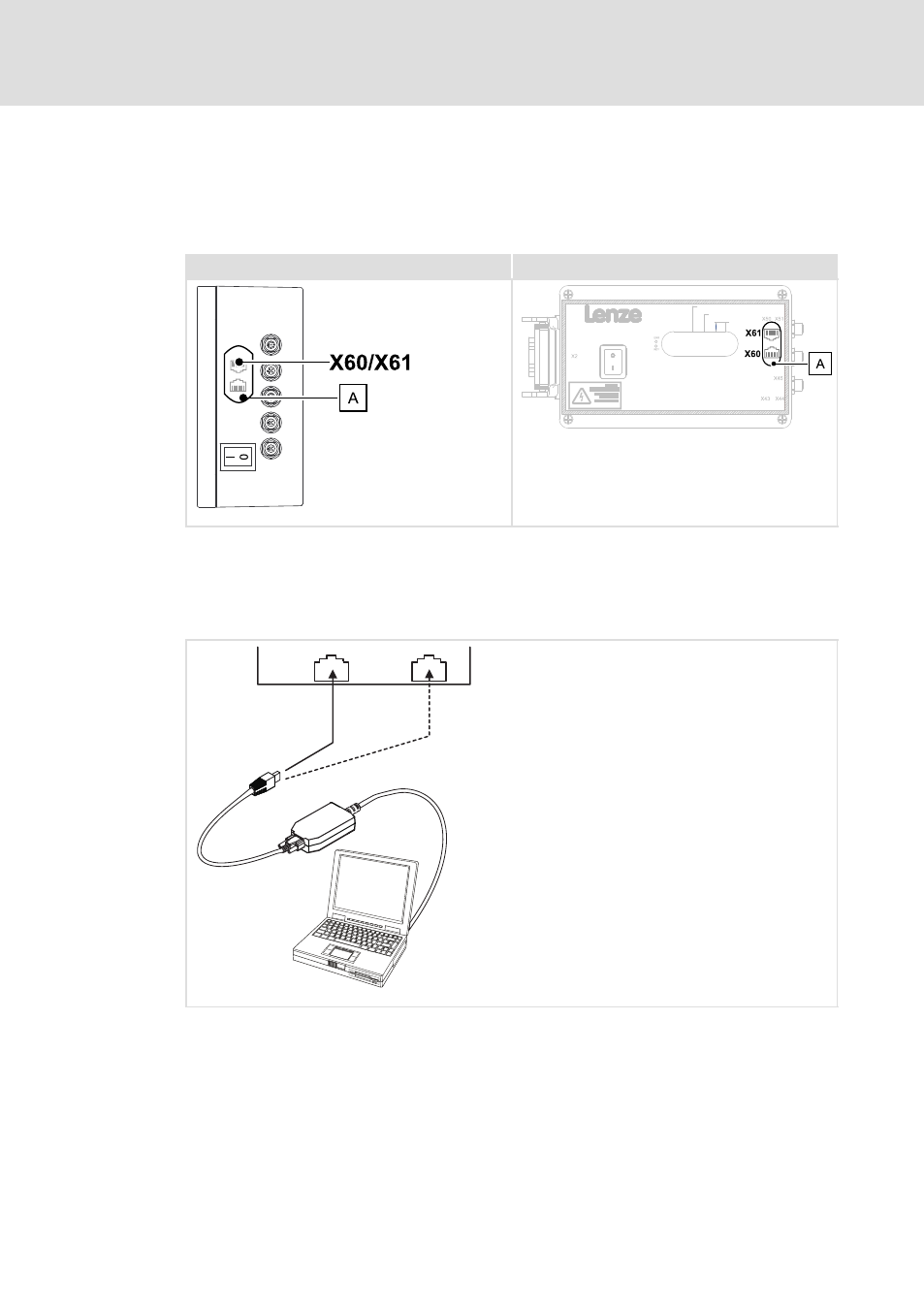

Fig. 6−1 Position of the RJ45 sockets for the CAN system bus
0 Cover
X60/X61 CAN system bus connections
2. Plug the cable into RJ45 socket X60 or X61.
X60 X61
CAN_CCU210B
Fig. 6−2 Connecting the device to the PC using a system bus adapter
3. Connect the Sub−D interface of the cable with the system bus adapter.
4. Connect the system bus adapter to the PC.
