Device description
Overview
3
l
14 LDEDS−CCU210B EN 4.0
Power 1.5 kW
CCU210_002A

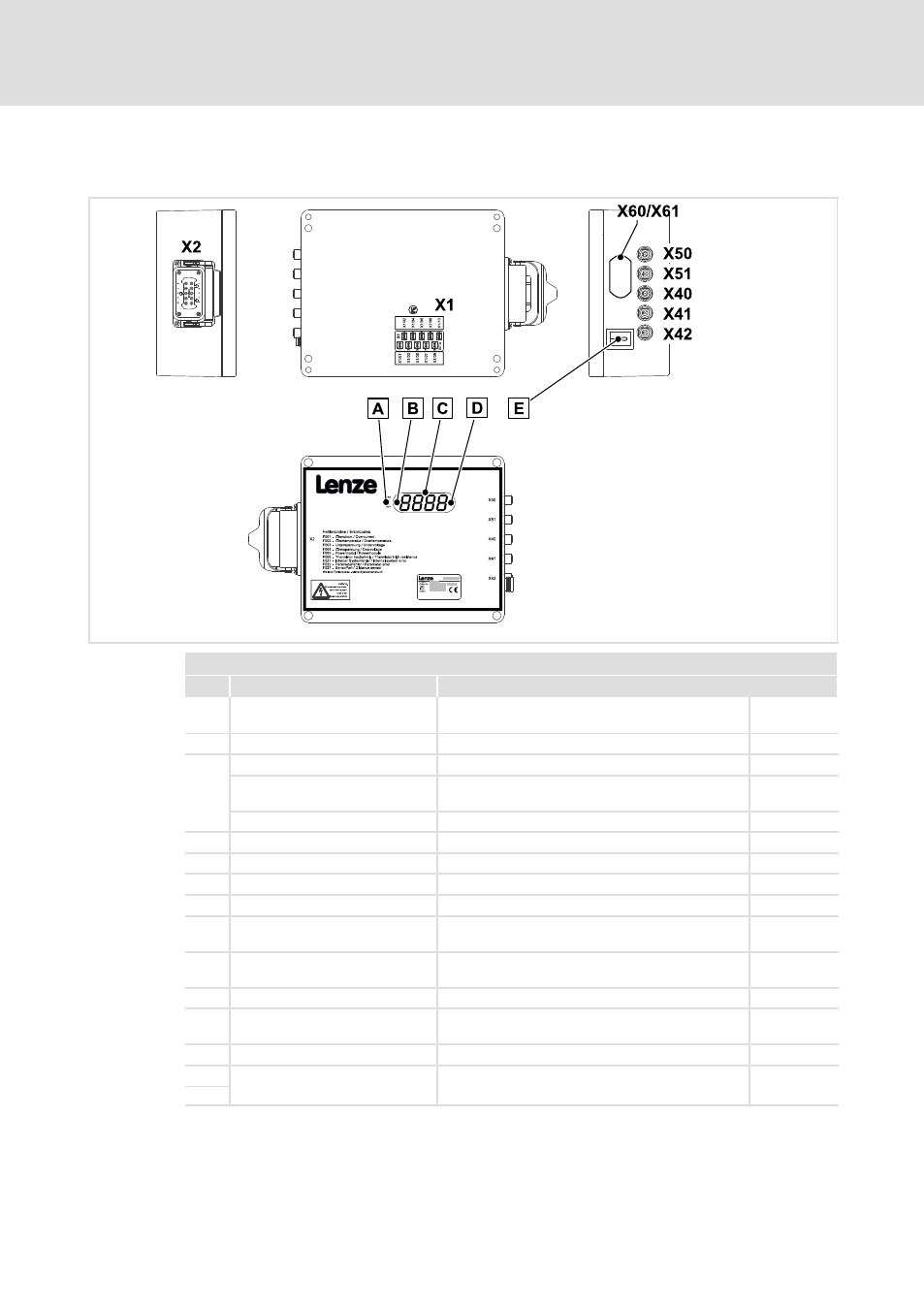

Operational control and connections
Pos. Function Description
0 Important fault messages Short description of the most important fault
messages ^ 81
1 Status display of device (LED) Readiness for operation, error ^ 78
2
Infrared receiver ...
... for infrared data transmission
(IrDA) Parameter setting, manual operation and status
enquiries via PDA ^ 65
... for infrared remote control (IrRC) Manual operation via infrared remote control ^ 68
3 4−digit 7−segment display Status display, error messages, warning signals ^ 79
4 On/Off switch Software deactivation, acknowledgement of errors
X1 Mains connection Connector: flat connector, 10−pole ^ 31
X2 Motor connection Connector: socket, Harting HAN−10B, 10−pole + PE ^ 32
X40 Digital inputs DIN3 ... DIN7
Digital output DOUT2 Connector: socket, 8−pole, M12 ^ 33
X41 Digital input DIN2
Digital output DOUT1 Connector: socket, 4−pole, M12 ^ 34
X42 Digital inputs DIN1, DIN8 Connector: socket, 4−pole, M12 ^ 34
X50 Connection of external data
memory Connector: socket, 8−pole, M12 ^ 33
X51 Connection of anti−collision sensor Connector: socket, 5−pole, M12, B−coded ^ 33
X60 System bus (CAN) connection
(behind the cover) RJ45 connector ^ 33
X61
