Electrical installation

Motor connection

6

l

32

LDEDS−CCU210B EN 4.0

6.4

Motor connection

CCU210_002D

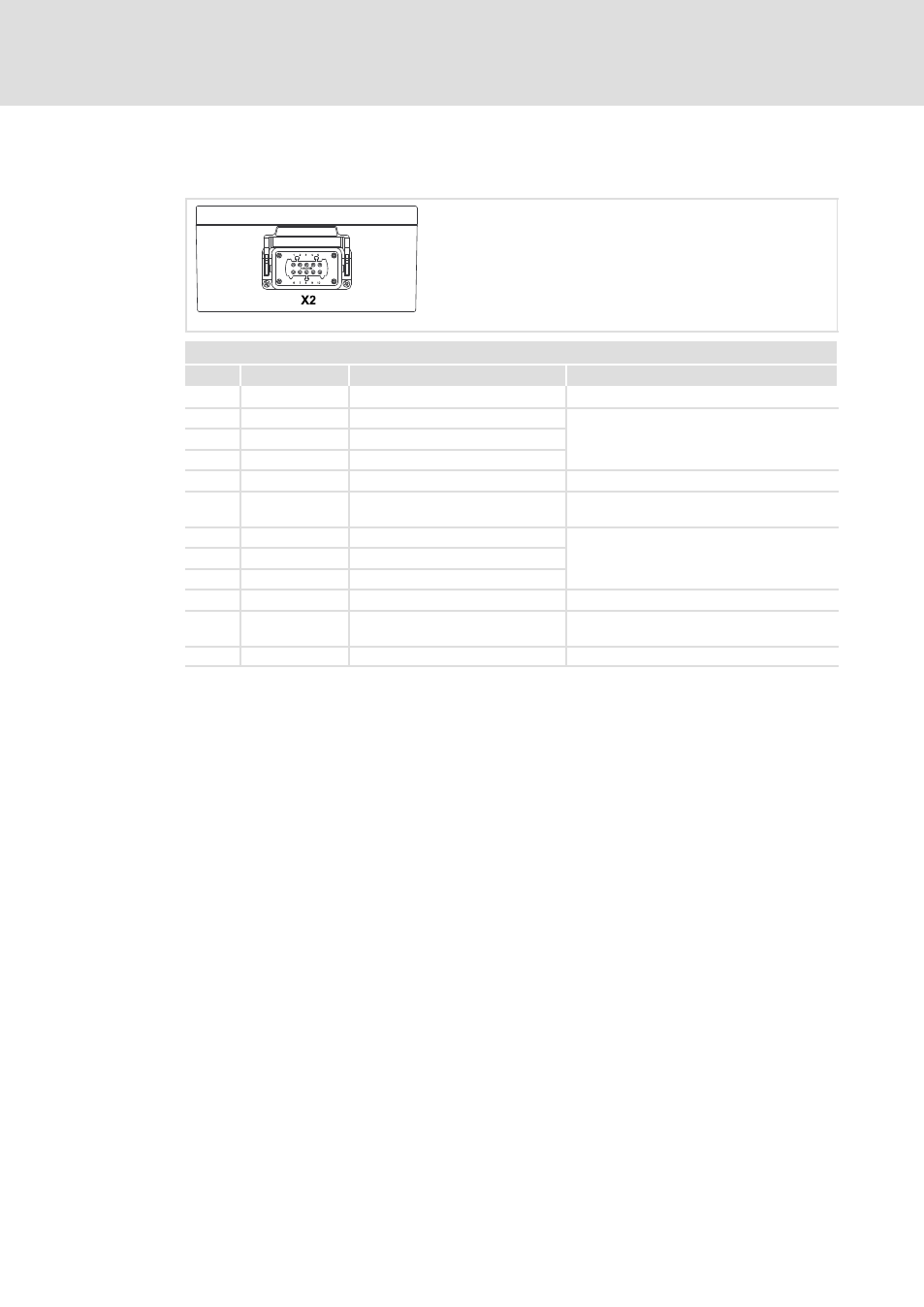

X2 − Motor connection

Pin

Connection

Description

Data

Connector: Socket, Harting HAN−10B

1

U

Phase U

2

V

Phase V

3

W

Phase W

4

+ brake

Brake supply voltage

5

+PTC

Motor temperature monitoring

PTC thermistor (PTC) or thermal contact (NC
contact)

6

n.c.

Not assigned

7

n.c.

Not assigned

8

n.c.

Not assigned

9

− brake

Brake supply voltage

10

−PTC

Motor temperature monitoring

PTC thermistor (PTC) or thermal contact (NC
contact)

+

PE

PE conductor
