Electrical installation

Mains connection

6

l

31

LDEDS−CCU210B EN 4.0

6.3

Mains connection

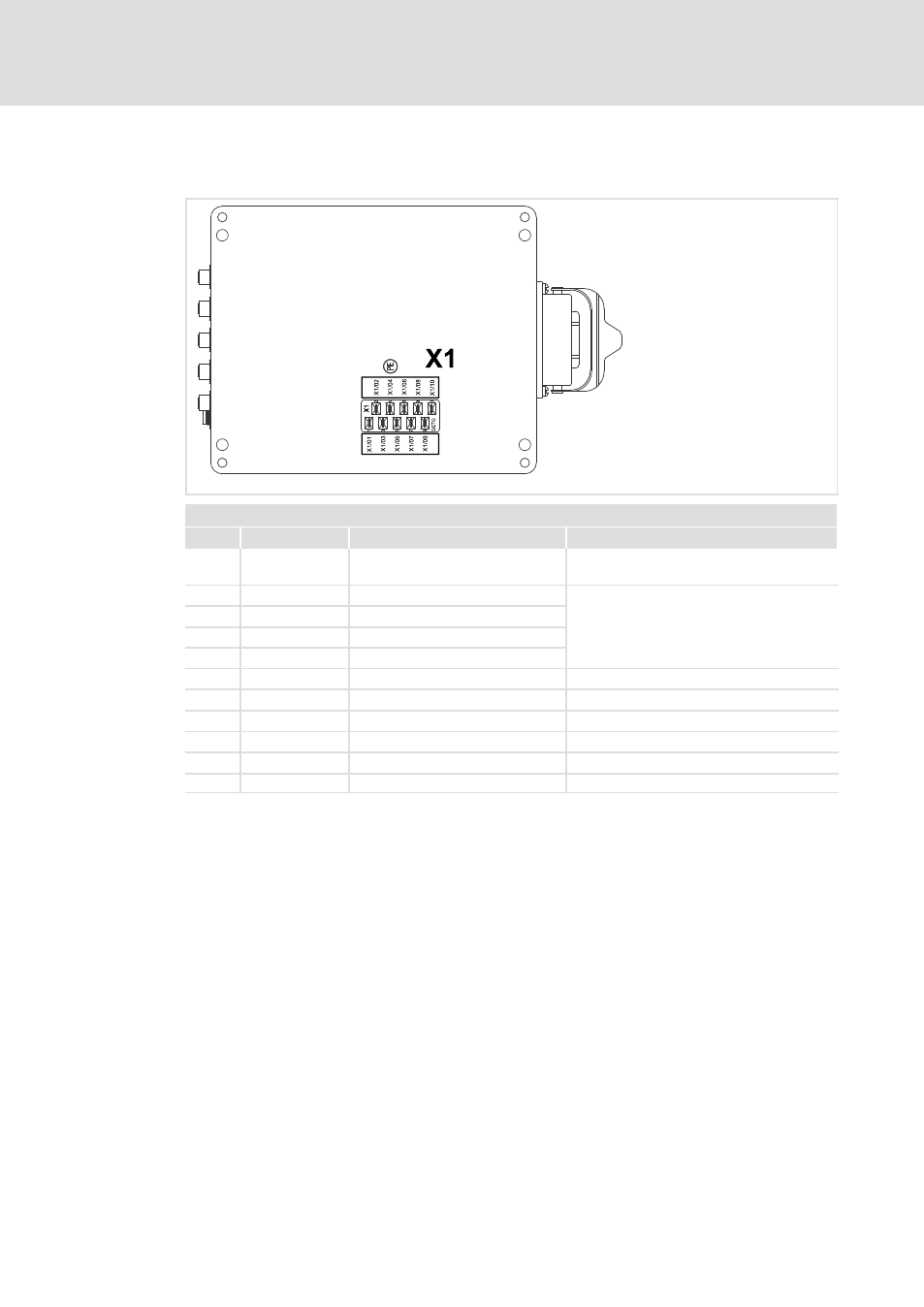

CCU210_002C

X1 − Mains connection

Pin

Connection

Description

Data

Connector: FASTON 6.3 x 0.8 mm flat
connector, 10−pole

1

L1

Phase L1

3/PE/PEN AC 360 V − 0 % ... 528 V + 0 %
45 Hz − 0 % ... 65 Hz + 0 %

2

L2

Phase L2

3

L3

Phase L3

4

+

PE

PE conductor

5

n.c.

Not assigned

6

n.c.

Not assigned

7

SS1

Control bar 1

8

n.c.

Not assigned

9

n.c.

Not assigned

10

MS1

Message bar 1

The SS2 control bar is assigned according to customer’s specifications. (see project documentation)
