6 Commissioning
6.5 Establishing an online connection with the »Engineer«
42
Lenze · E94AYCET communication module (EtherCAT®) · Communication Manual · DMS 9.0 EN · 02/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

How to configure an online connection to a field device which is connected to the Lenze
Controller via EtherCAT:
1. Go to the "Communication path" dialog box and select the entry "Gateway controller ->
EtherCAT" from the "Bus connection" list field.
2. Click Search/Enter....

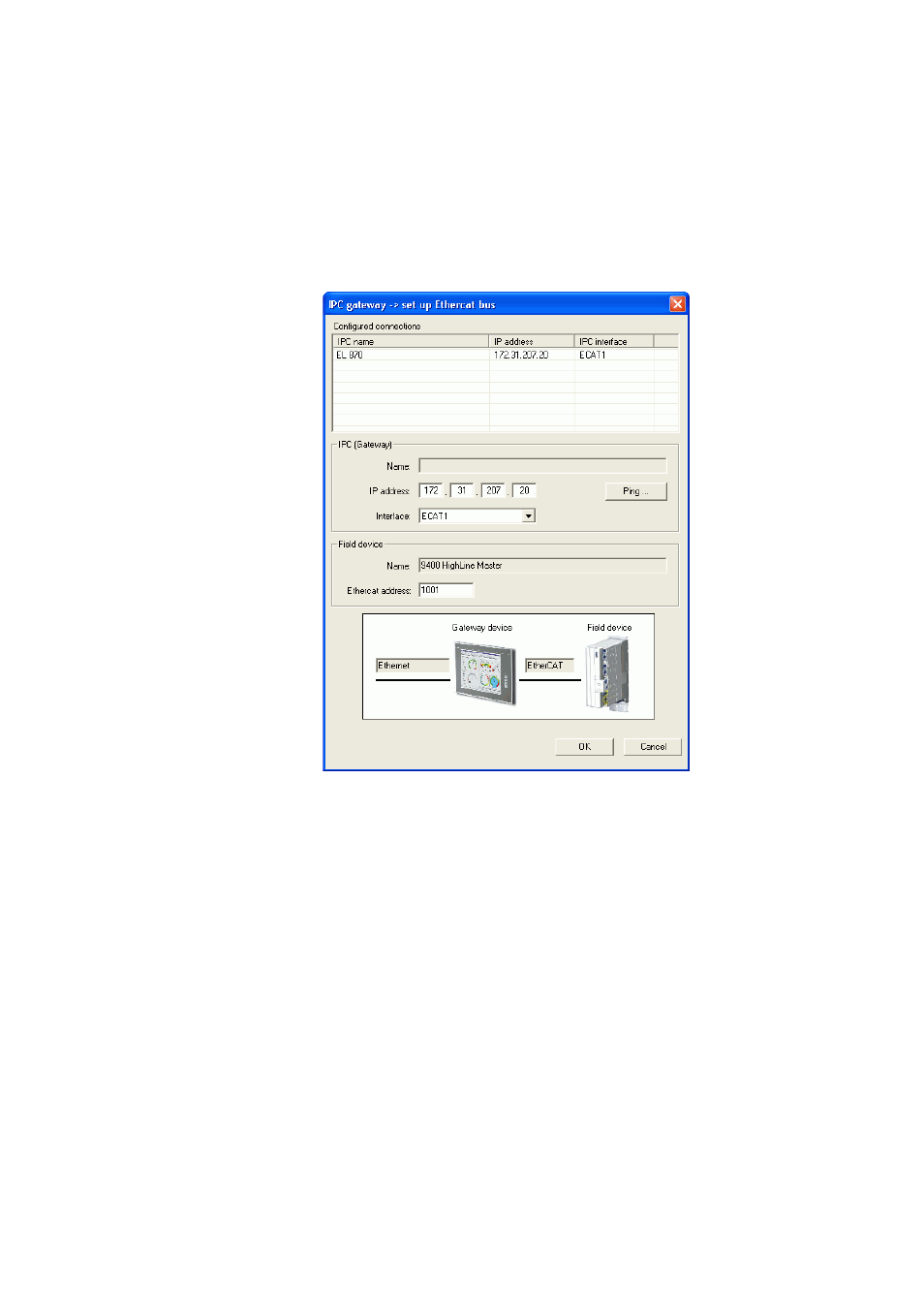

The "Gateway Controller -> Set up EtherCAT bus" dialog box is shown:
3. Enter the IP address of the controller.
By clicking the Ping button, you can carry out a simple test which verifies whether a device
can actually be reached via the IP address set.
4. Click OK.
• The "Enter IP address" dialog box is closed.
• In the Device access path column of the "Communication path" dialog box, the
corresponding device access path is shown
(e.g. "IPC:172_31_207_254.ECAT.ecat1.dev1001.").
