5 Installation
5.2 Electrical installation
24
Lenze · E94AYCET communication module (EtherCAT®) · Communication Manual · DMS 9.0 EN · 02/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2 Electrical installation
5.2.1 EMC-compliant wiring
In typical systems, standard shielding is sufficient for Ethernet cables.
However, in environments with a very high level of interference, EMC resistance can be improved
by earthing both sides of the cable shield as well.
For this purpose, observe the following notes:
1. The distance of the additional earthing from the Ethernet plug depends on the slot of the
module. The distance is:
• approx. 10 cm for the upper slot (MXI1)
• approx. 20 cm for the lower slot (MXI2)
2. Measure the appropriate distance along the cable and, starting from this point, remove 2 cm of
the cable's plastic sheath.
3. Fasten the cable shield to the shield sheet of the Servo Drive 9400.

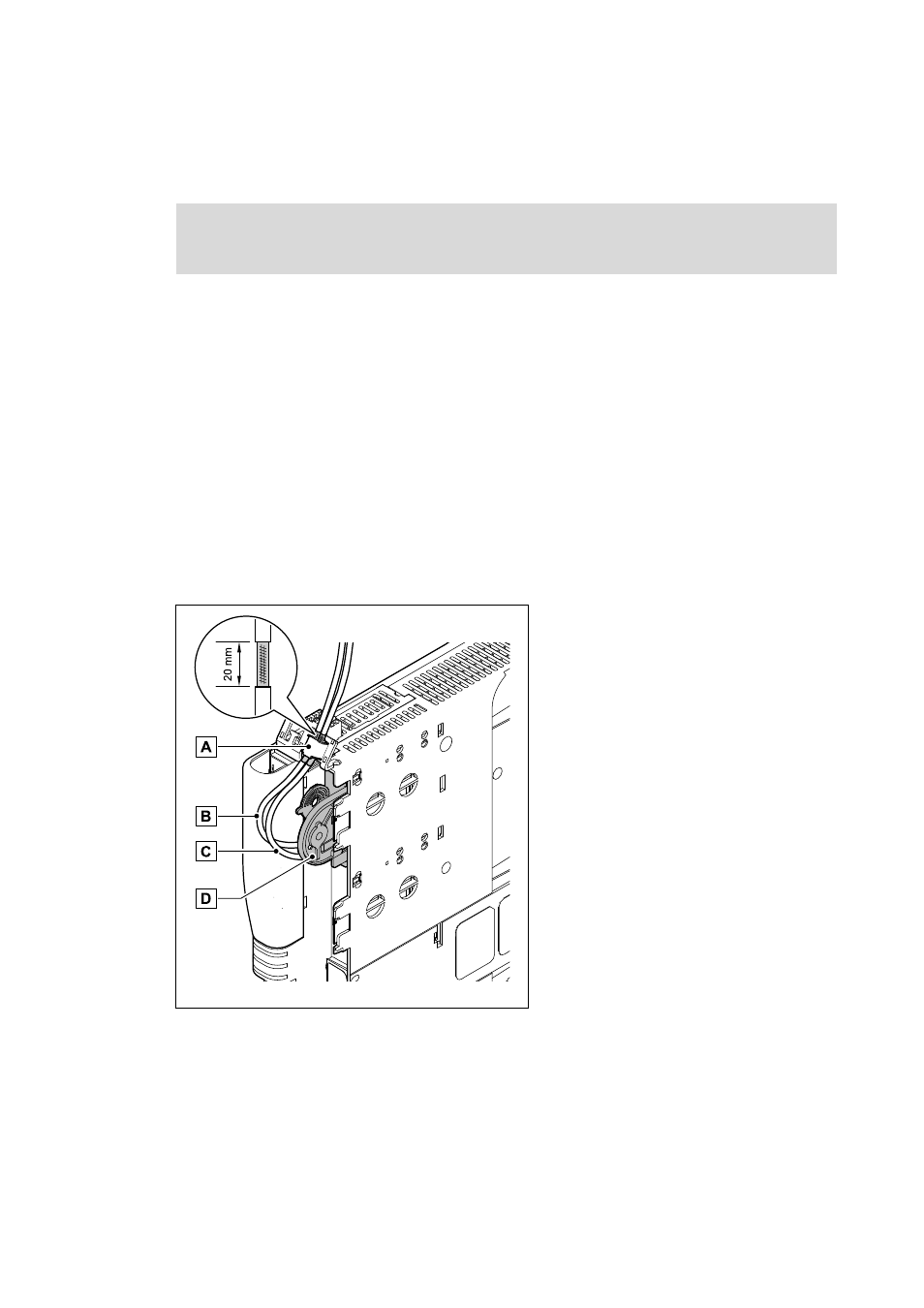

[5-3] EMC-compliant wiring

Documentation for the standard device, control system, plant/machine
Observe the notes and wiring instructions stated.
E94YCXX008
A Fastening to the shield sheet of the Servo Drive
9400
B Outgoing EtherCAT line at X247 (OUT)
C IncomingEtherCAT line at X246 (IN)
D Communication module in slot MXI1 of the
Servo Drive 9400
