Lenze E94AYCET - Manual (Page 27)

Lenze · E94AYCET communication module (EtherCAT®) · Communication Manual · DMS 9.0 EN · 02/2014 · TD17
27
5 Installation
5.2 Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

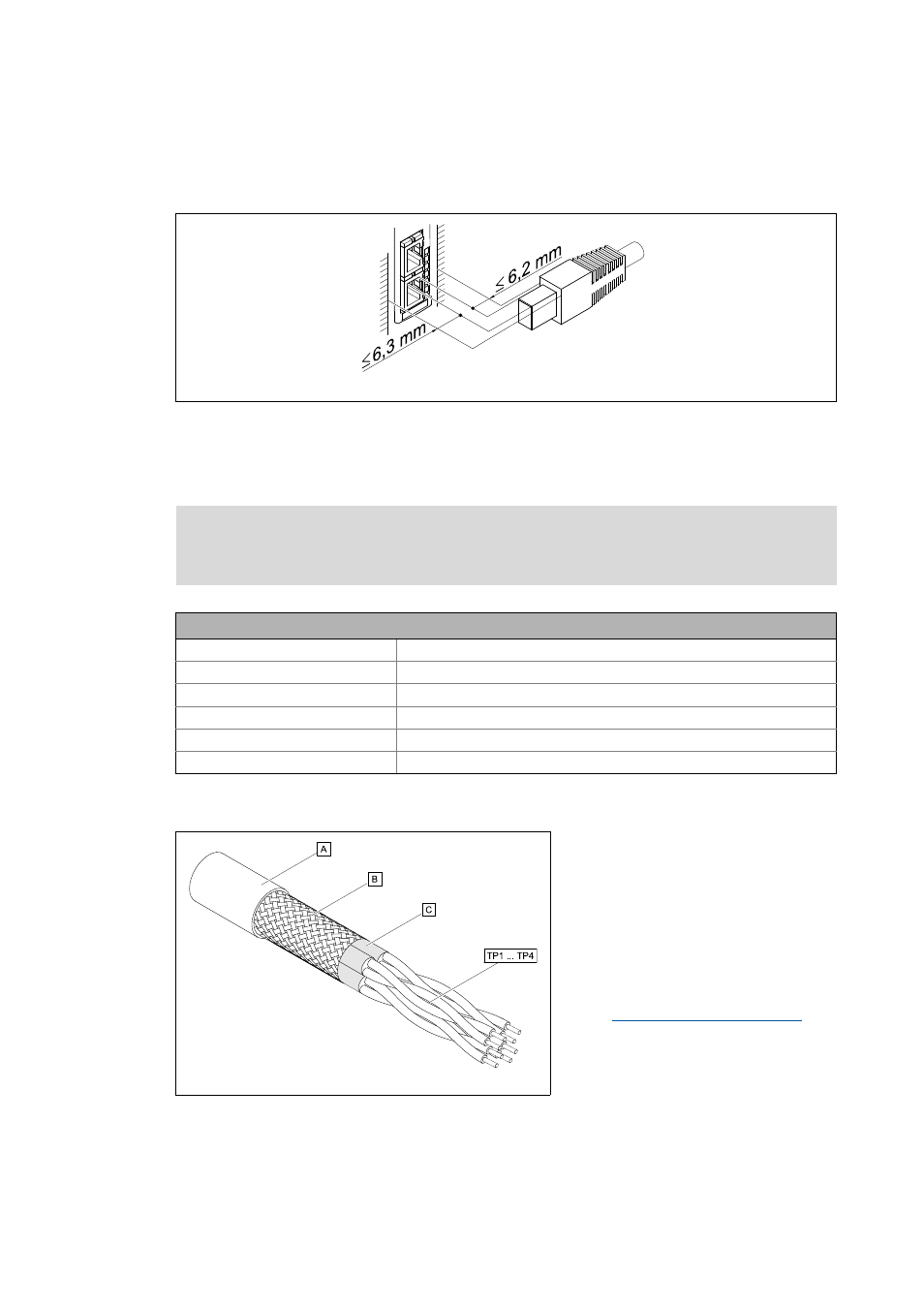

Mounting clearance
When ordering and using the Ethernet cable, observe the mounting clearances provided.
[5-6] Mounting clearance
5.2.4 Specification of the Ethernet cable
Structure of the Ethernet cable
[5-7] Structure of the Ethernet cable (S/FTP, CAT 5e)
E94YCET017

Note!
Only use cables that correspond to the given specifications.
Specification of the Ethernet cable
Ethernet standard
Standard Ethernet (acc. to IEEE 802.3), 100Base-TX (Fast Ethernet)
Cable type S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT 5e
Damping 23.2 dB (for 100 MHz and 100 m each)
Crosstalk damping 24 dB (for 100 MHz and 100 m each)
Return loss 10 dB (100 m each)
Surge impedance 100 
E94YCEP016
A Cable insulation
B Braid
C Foil shielding
TP1
...
TP4
Twisted core pairs 1 ... 4
 Colour code of the Ethernet cable
( 28)
