Electrical installation
Devices in the power range 0.25 ... 2.2 kW (1/N/PE AC 230 V)
Terminal assignment of the power connections
6

62 EDS84ABD302 EN 4.0

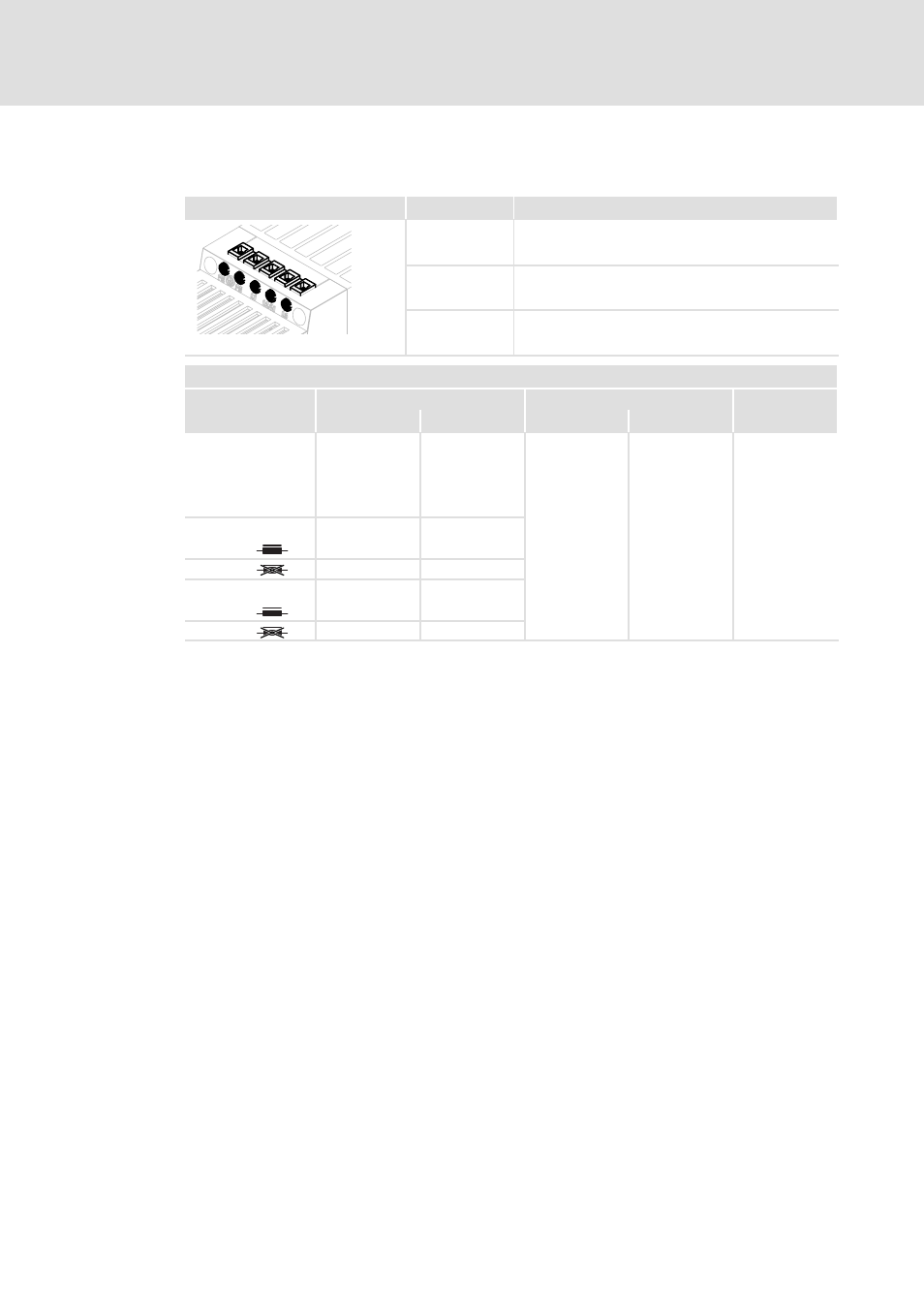

Mains connection
Terminal X100 Labelling Description
L1 Mains phase L
L2/N Mains phase L/Neutral conductor N
PE PE conductor on the supply side
84BDGG001
Terminal data
Max. conductor cross-section Tightening torque 
[mm 2 ] [AWG] [Nm] [lb-in]
E84AVBxE2512
E84AVBxE3712
E84AVBxE5512
E84AVBxE7512
E84AVBxE1122
1 ... 2.5 18 ... 14
0.5 4.5 3.5 x 0.6
E84AVBxE1522
1 ... 2.5 18 ... 12
1 ... 4 18 ... 10
E84AVBxE2222
1 ... 4 18 ... 12
1 ... 6 18 ... 10
For inverter drives of type E84AVBDE2222 and E84AVBDE1522, the following should be
considered:
ƒ when the inverter is connected to the mains without a mains choke, the terminal
X100 can accommodate
– cables with cross-sections of maximum 4 mm
2 without wire end ferrules.
– cables with cross-sections of maximum 4 mm 2 or thicker with a wire end ferrule
only if pin-end connectors are used.
