Dakota Ultrasonics
72
Saving the Group
Once all the parameters are set, the user has the option of saving or
canceling the new group.

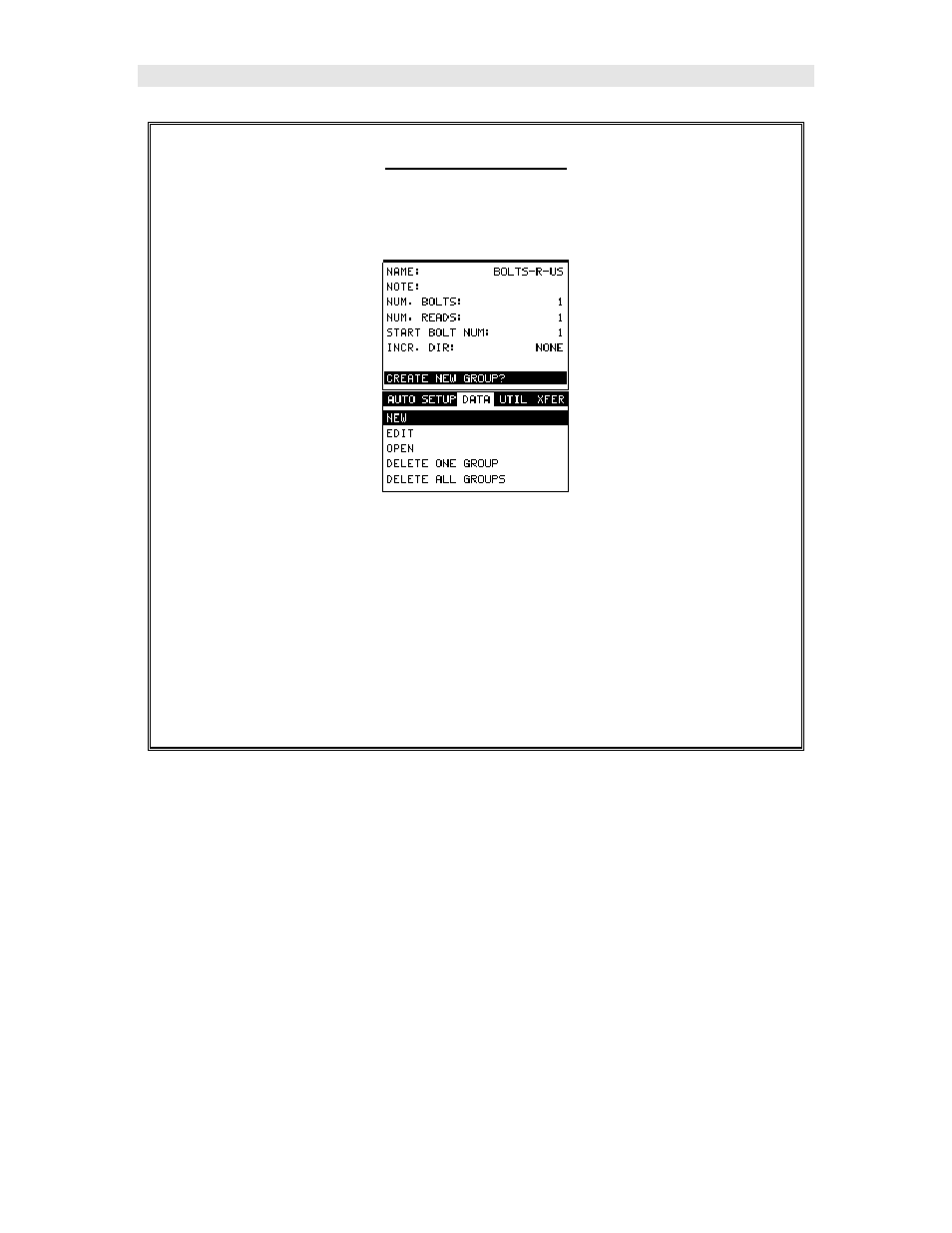

1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until CREATE NEW GROUP? is highlighted.
2) Press the ENTER key to accept the group parameters, and activate the
confirmation screen.
3) Press the OK key to save the New Group, or the ESC key to cancel the
New Group setup and return to the DATA menu.
Now that the bolt group has been created to document the probe zero data,
we’re ready to get started with the probe zero process. The first thing to note is,
the procedures in the next section demonstrate a Two-Point calibration.
However, the same procedures apply to the One-Point calibration option also.
The user would simply follow the same procedures and ignore references to the
second point.
