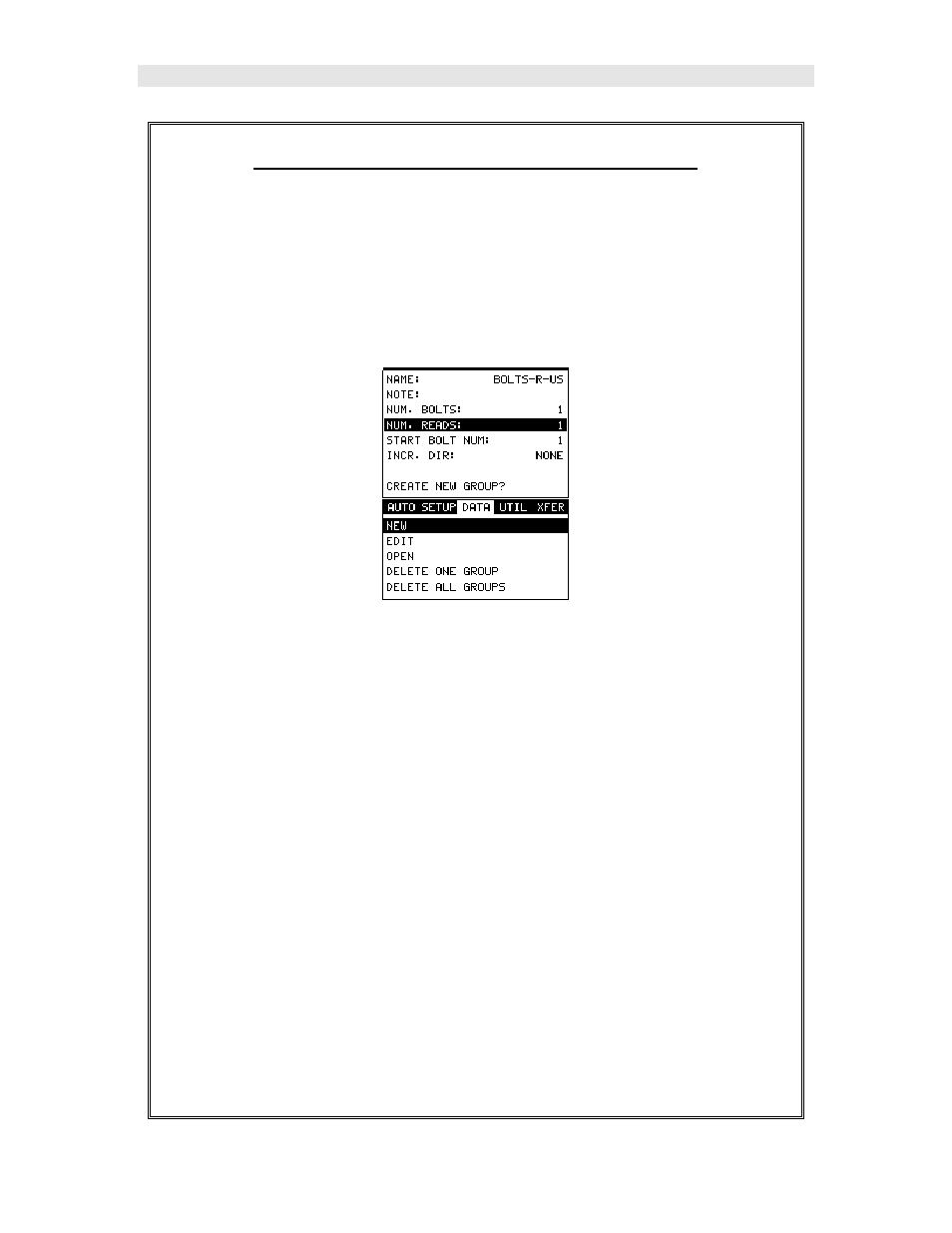

Selecting the Number of Readings Per Bolt
Note: A bolt can have up to 51 possible measurements and 1 initial length
(L-REF). There must be at least one reading per bolt. Since this group is
being created to store probe Zero Data and verify your probe zero
periodically, or before starting a new application, consider selecting all 51
measurements locations.
1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until NUM READS is highlighted.
2) Press the ENTER key to display the Digits Edit Box.
3) Press the UP and DOWN arrow keys to scroll the highlighted value.
4) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
5) Repeat steps 3 & 4 until the NUM READS value is correctly displayed.
6) Press the OK key to save the NUM READS and return to the Group
List Items menu, or ESC to cancel entering the NUM READS.
Note: If a number less than 1 or greater than 51 is entered, an error
message box “VALUE IS OUT OF RANGE” will be displayed.
7) Press the OK key to display the Digits Edit Box and re-enter the NUM
READS.
