MINI-MAX Ultrasonic Bolt Tension Monitor
57

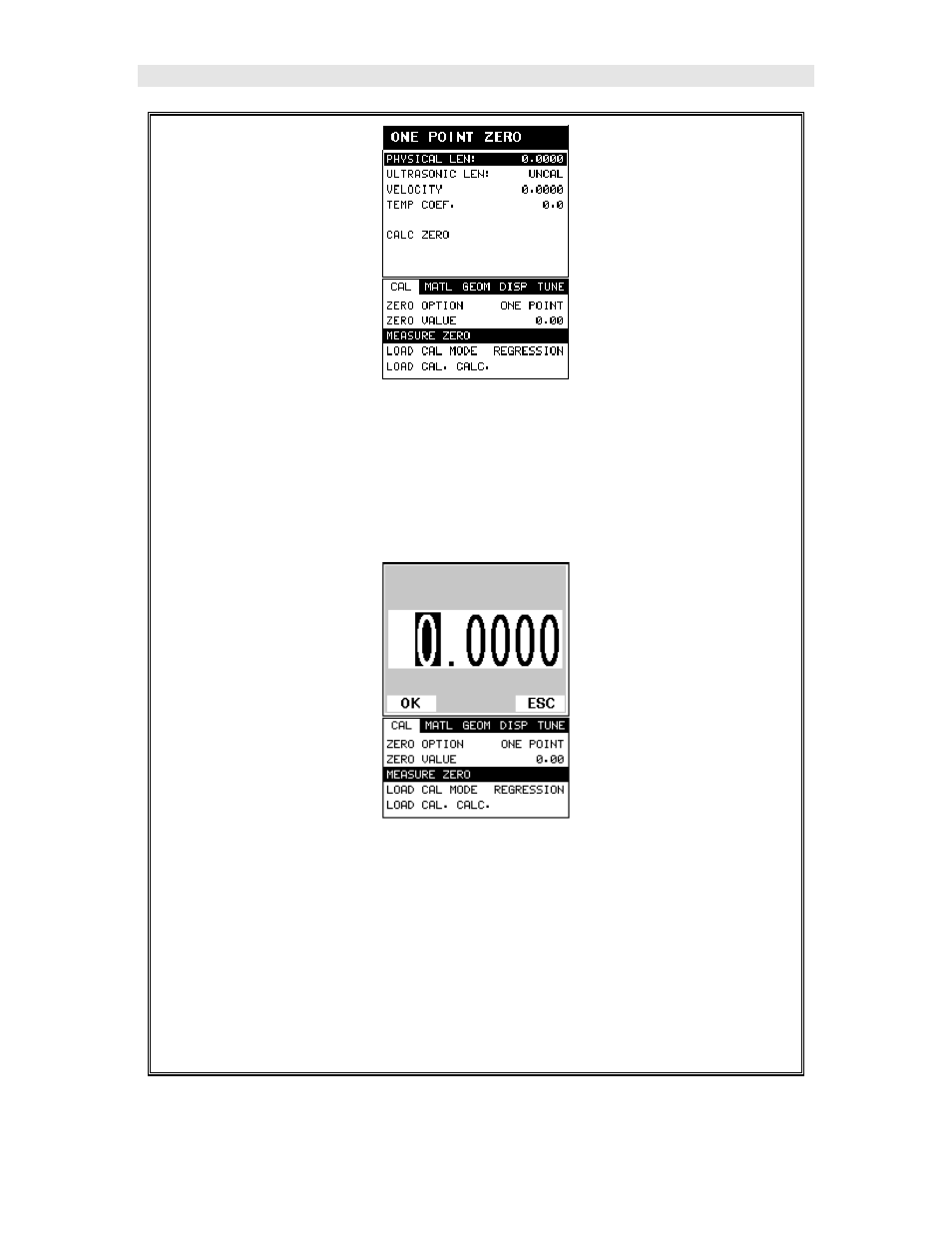

5) Press the ENTER key to display the One Point Zero Edit Box.
6) Use the UP and DOWN arrow keys to scroll through the One Point List
Items until PHYSICAL LEN is highlighted.
7) Press the ENTER key to display the Digits Edit Box.
Note: Enter the known ultrasonic length of the bolt that was documented
and stored in the previous section. We will consider this ultrasonic length to
be the actual physical length from this point forward. Reminder: It was
stored in the first column of the probe zero group.
8) Press the UP and DOWN arrow keys to scroll the highlighted value.
9) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
