6. Getting started
3. When finished, press EXIT key to return or ENTER to continue to the shift adjustment.
Press the LENS key to switch to another pattern. Different patterns are available.

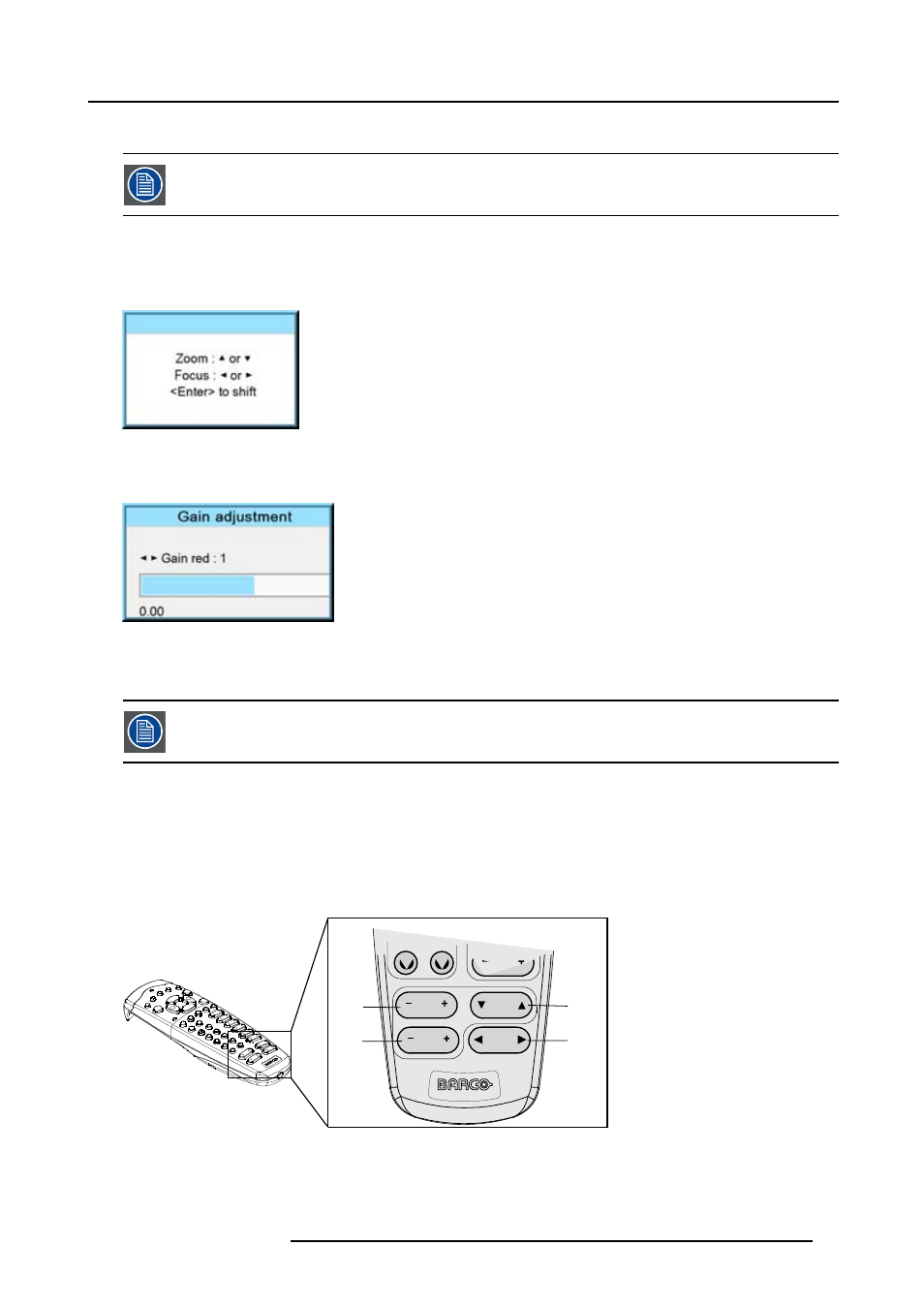

Quick shift adjustment
1. Press the LENS key on the remote control or local keypad.
The zoom/focus menu will be displayed.
Image 6-7
2. Press ENTER.
The shift menu will be displayed.
Image 6-8
3. Push the cursor key ▲ or ▼ to shift the image up or down and ◄ or ► to shift the image left or right.
4. When finished, press EXIT key to return or ENTER to continue to zoom/focus.
Press the LENS key to switch to another pattern. Different patterns are available.
6.5.2.2 Direct Lens Adjustment (RCU)
Lens adjustment buttons on the Remote Control
On the Remote Control four buttons with double action are provided, allowing direct alignment for lens ZOOM, FOCUS, HORIZON-
TAL SHIFT and VERTICAL SHIFT.
1. Press LENS ZOOM button [-] or [+] (A) for correct image size on the screen.
CONTR
1 2
LENS
ZOOM
LENS
SHIFT
LENS
FOCUS
LENS
SHIFT
A
C
B
D
Image 6-9
Direct lens adjustment keys
A Zoom
B Vertical shift
C Focus
D Horizontal shift
