17. Projector covers, removal and installation

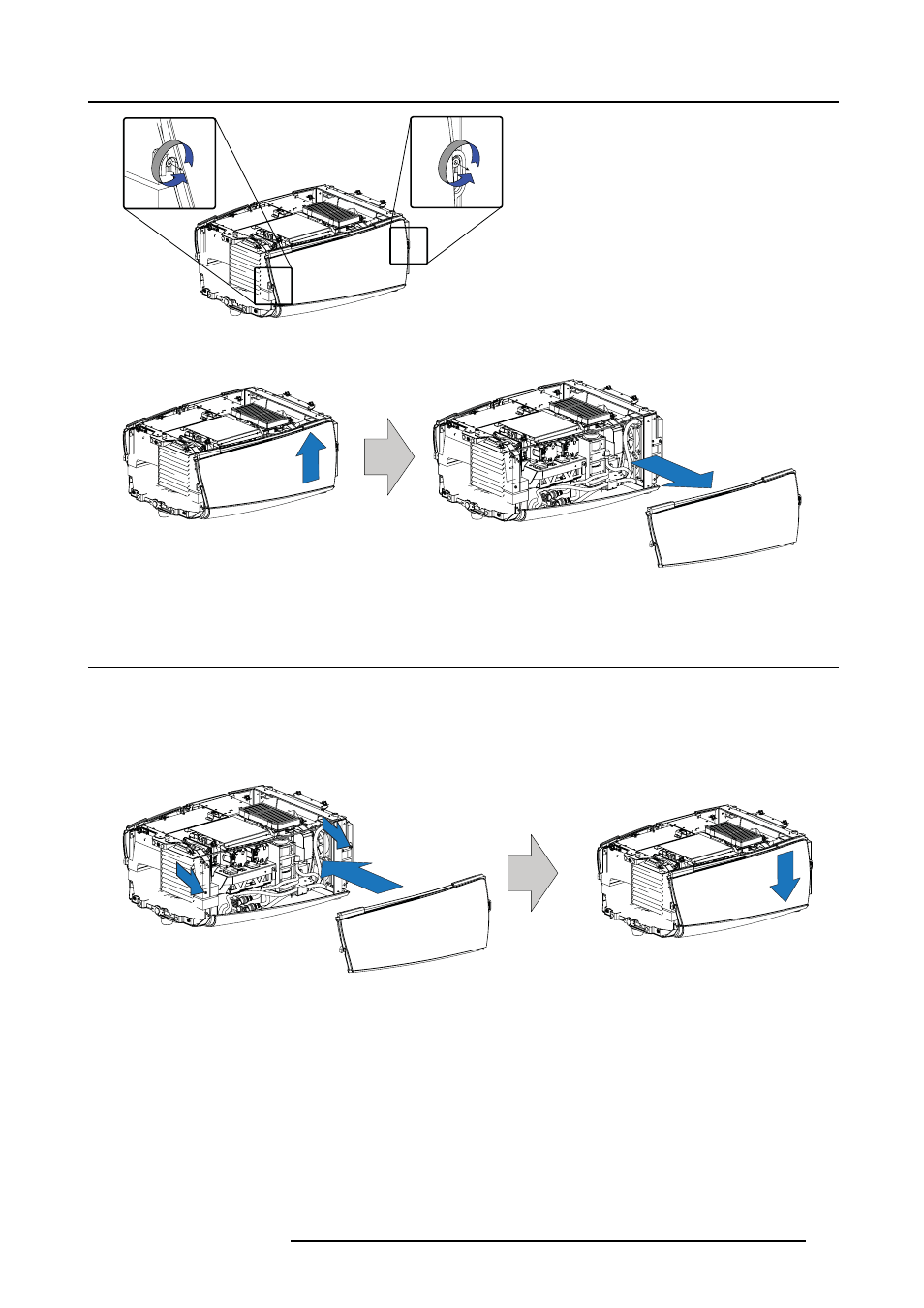

Image 17-8
Loosen screws
2. Lift up the side cover and pull them forward to take off.
Image 17-9
Side cover removal
17.6 Installation of the side cover
Necessary tools
Allen wrench 3 mm
How to install
1. Hook the side cover on the fixation screws and pull the cover downwards until it matches with the bottom cover.
Image 17-10
Mount side cover
2. Fixate both screws.
