2. General
2.4 Projector configurations
The different configurations
Depending on the installation the projector can be mounted in different ways, the 4 different configurations are:
1.
Front / Table (F/T)
2. Front / Ceiling (F/C)
3. Rear / Table (R/T)
4. Rear / Ceiling (R/C)
For a ceiling mounted configuration, the optional carry handle kit is required.

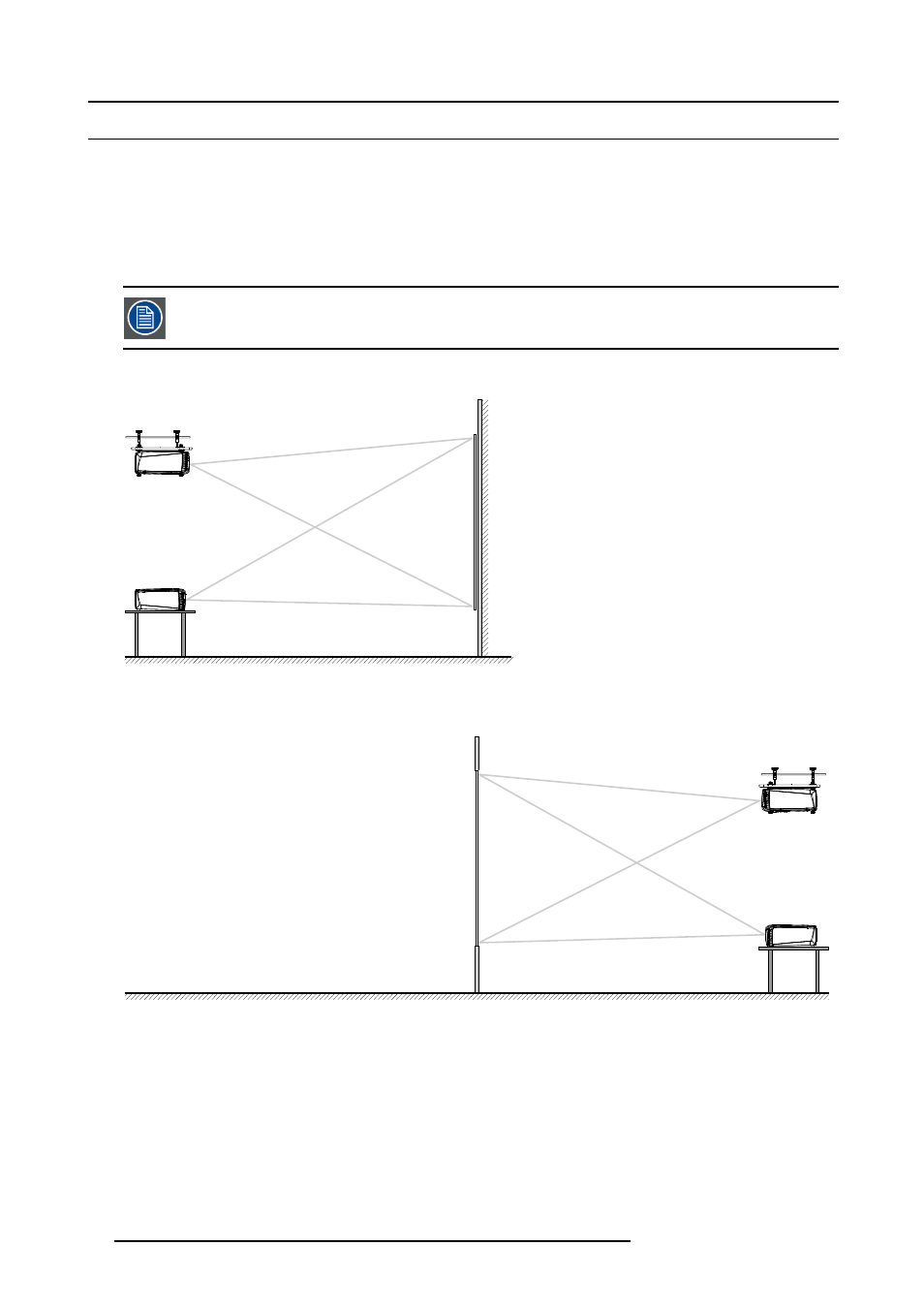

Front projection
F/C
AUDIENCE
F/T
FLOOR
SC
R
E
EN
Image 2-3
Front projection
Rear projection
AUDIENCE BACKSTAGE
R/C
R/T
FLOOR
SC
R
E
E
N
Image 2-4
Rear projection
14 R59770057 CLM HD8 15/03/2010
