13. Projector control
About channel 4 and 5
Channel 4:
0 - 31
Input 1
32 - 63
Input 2
64 - 255
No image (pause)
Channel 5:
0 - 31
Off
32 - 63
Focus
64 - 95
Zoom
96 - 127
Horizontal shift
128 - 255
Vertical shift
13.6.4 DMX mode
What can be done ?
2 modes for DMX are available:
•
Basic which has currently 2 channels implemented.
•
Full which has currently 9 channels implemented and 10th free channel.
Depending on the DMX application the correct mode has to be selected.
For the complete DMX chart, see "DMX Chart", page 195.
How to set the mode
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Projector control and press ENTER.
3. Use the ▲ or ▼ key to select DMX and press ENTER.
4. Use the ▲ or ▼ key to select DMX mode and press ENTER to toggle between [Basic] and [Full].

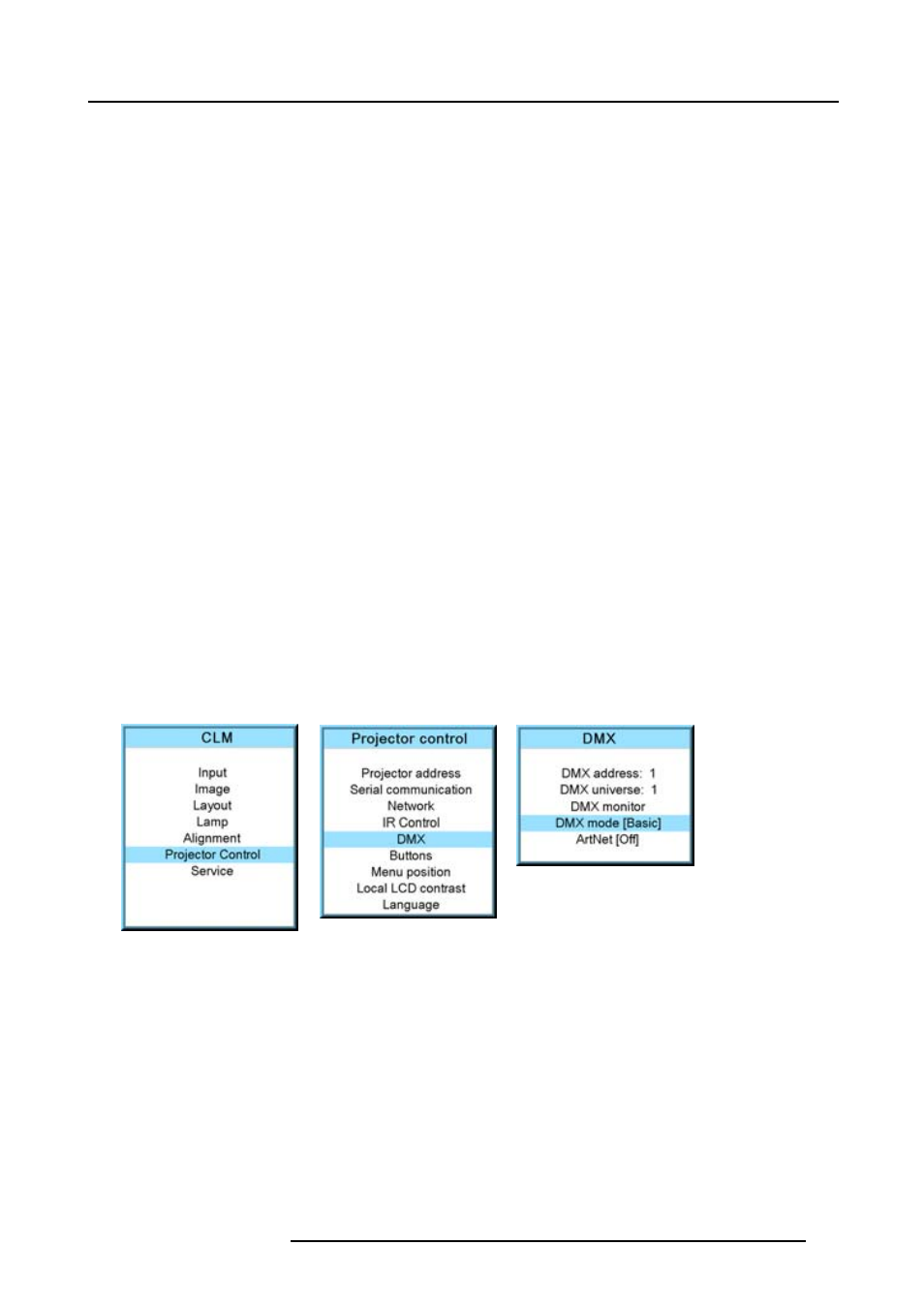

Image 13-51
Image 13-52
Image 13-53
13.6.5 Art-Net Activation
What can be done ?
DMX via Art-Net can be activated [On] or blocked [Off].
Default value : off
How to toggle
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Projector control and press ENTER.
3. Use the ▲ or ▼ key to select DMX and press ENTER.
4. Use the ▲ or ▼ key to select ArtNet and press ENTER to toggle between [Off] and [On].
R59770057 CLM HD8 15/03/2010
147
