13. Projector control
Image 13-54
Image 13-55
Image 13-56
13.7 Buttons
Functionality
Some buttons on the RCU or local keypad can have a different functionality depending on the need of the projector owner.
Overview
• APA button
• Shortcut keys
13.7.1 APA button
What can be done?
The function of the APA button can be configured according the wishes of the user.
The function can be:
•
Auto align (only aligning of the preview window is executed).
• Auto-image menu. This function opens a auto image menu where the user can make his choice between auto align, auto
contrast/brightness and auto phase.

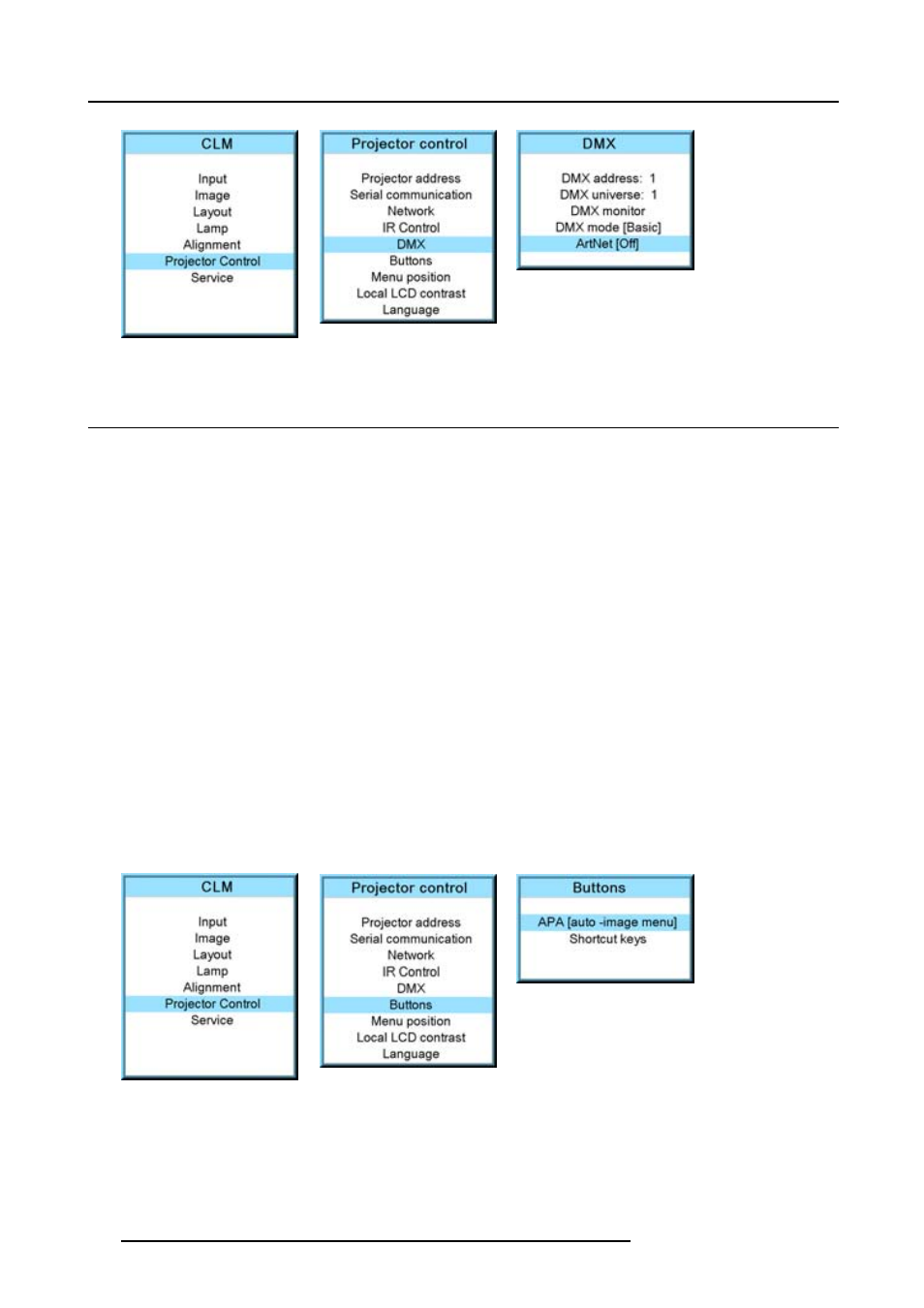

How to configure the Auto button?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Projector control and press ENTER.
3. Use the ▲ or ▼ key to select Buttons and press ENTER.
4. Use the ▲ or ▼ key to select APA and press ENTER to toggle between [Align only] and [Auto-image menu].
Image 13-57
Image 13-58
Image 13-59
13.7.2 Shortcut keys
What can be done?
An overview of the shortcut allocations with the corresponding menu is given. Those printed in bold are allocated.
148 R59770057 CLM HD8 15/03/2010
