17. Projector covers, removal and installation
b
c

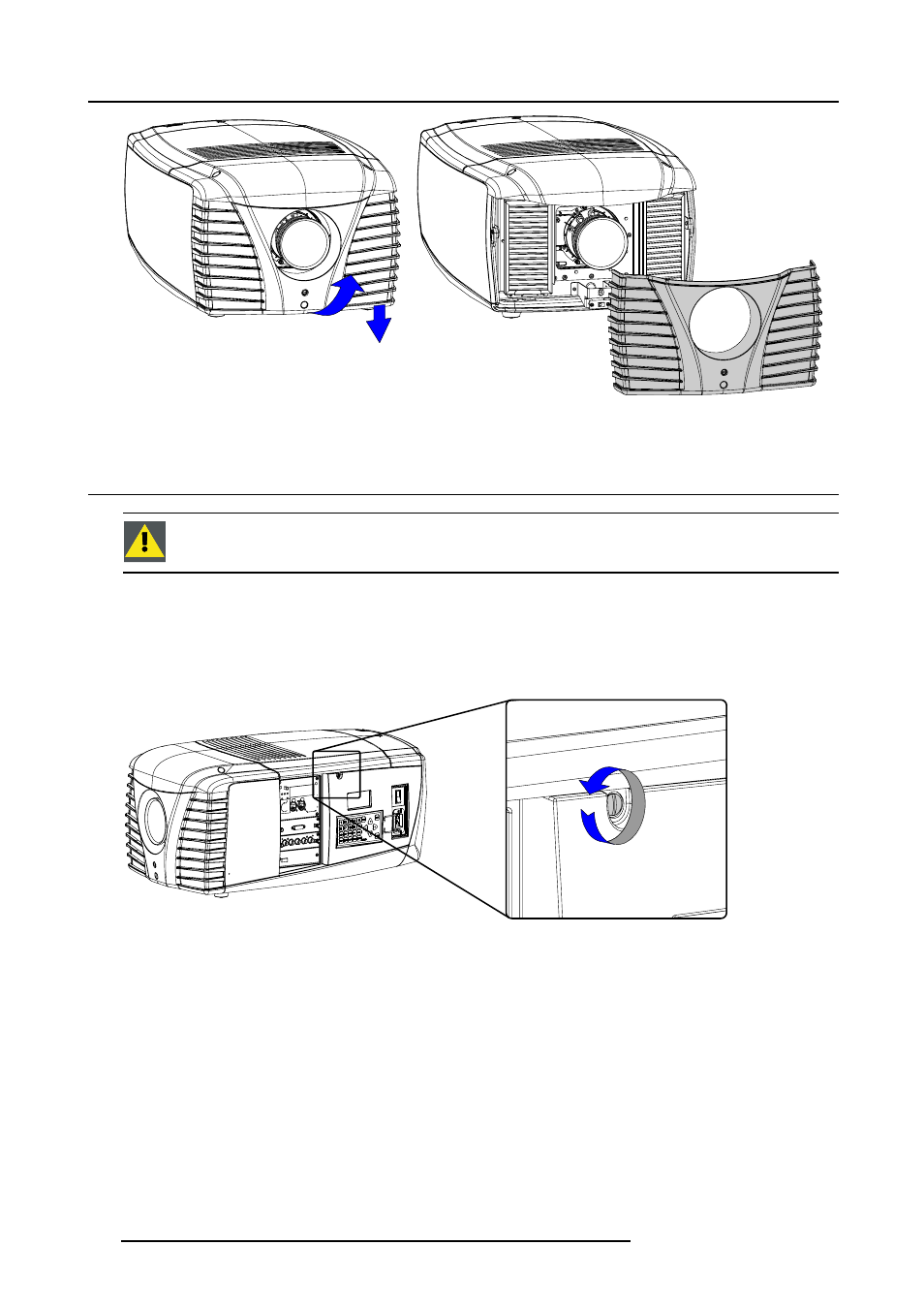

Image 17-2
Remove the front cover
17.2 Removal of the lamp door
W ARNING : This procedure may only be performed by qualified technical service personnel.
Necessary tools
Flat screwdriver
How to remove the lamp door
1. Release the captive screw at the middle upper side of the side cover on the input side.
Image 17-3
Release captive screw
2. Take the lamp door with both hands, one on each side, and pull it upward until the cover comes free from its 4 locks.
