12. Alignment menu

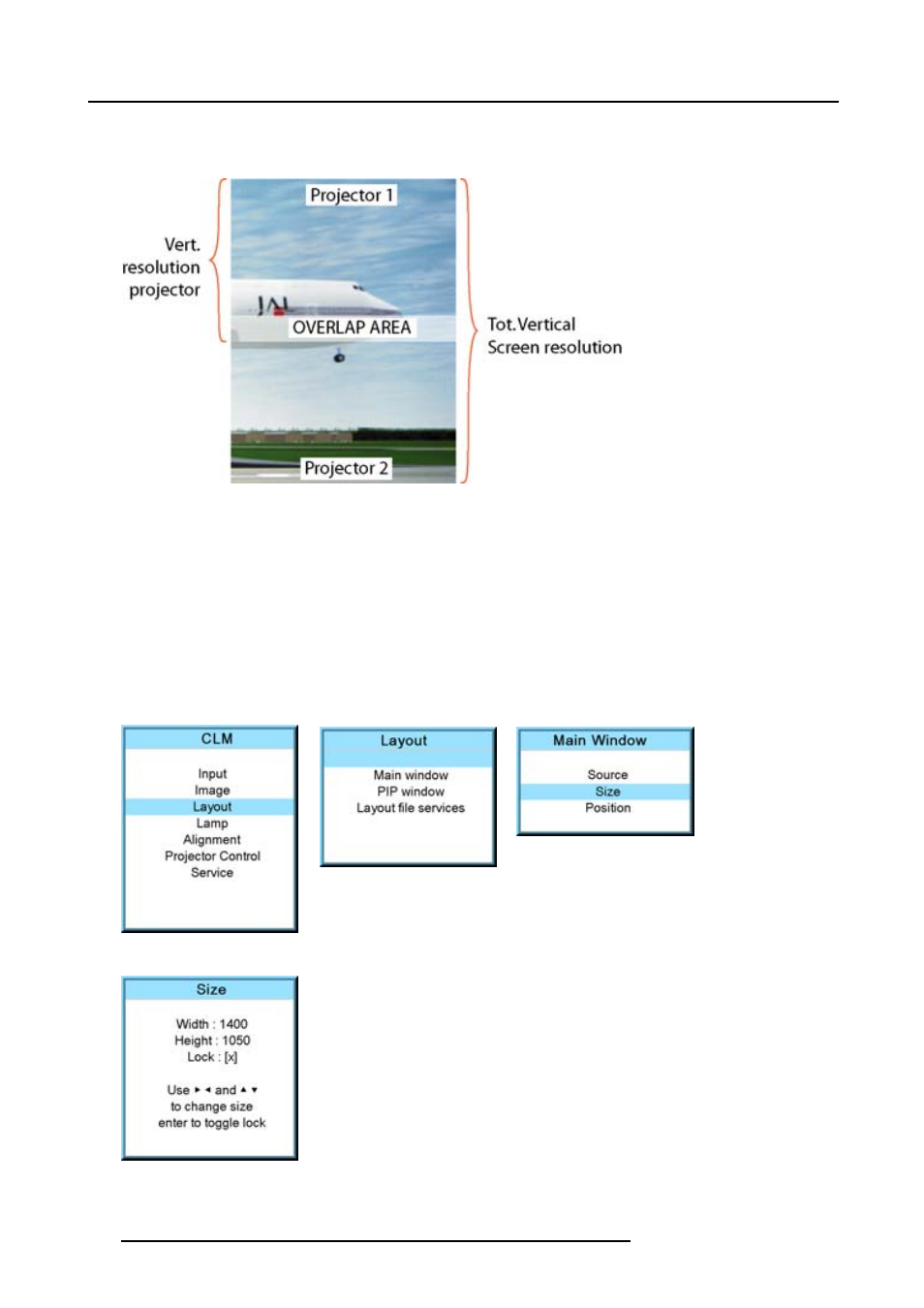

12.11.6 ScenergiX overlap zone (vertical ScenergiX)
Definitions
Image 12-53
Scenergix overlap zone vertical
Overlap : number of pixels that overlap
Vertical resolution of 1 projector
Total vertical screen resolution : [(Vertical resolution of 1 projector) x 2] minus (overlap)
Vertical Resolution source : number of active lines of the source
How to set for the first projector
1. Go to Layout → Main window → Size
2. Enter the value for the Height as follow: Total Vertical screen resolution / 2 - 0.5 x overlap zone.
3. Position remains the same.
Image 12-54
Image 12-55
Image 12-56
Image 12-57
128 R59770057 CLM HD8 15/03/2010
