13. Projector control
Image 13-36
Image 13-37
13.6 DMX
Overview
• DMX address
• DMX universe
• DMX monitor
• DMX mode
• Art-Net Activation
While the local LCD display on the CLM is active (backlight is on), the DMX response time may increase.

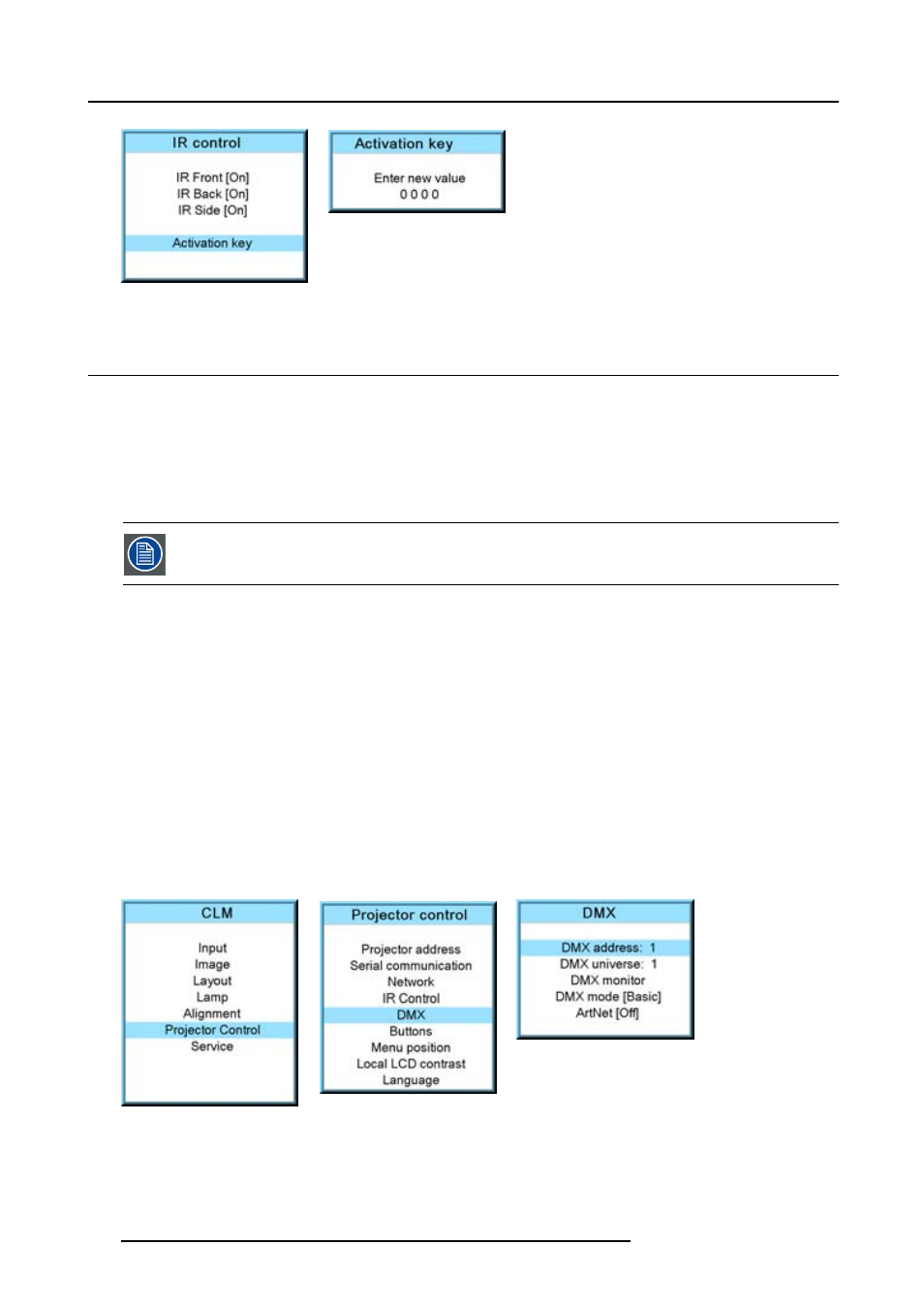

13.6.1 DMX address
How to set the DMX address
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Projector control and press ENTER.
3. Use the ▲ or ▼ key to select DMX and press ENTER.
4. Use the ▲ or ▼ key to select DMX address and press ENTER.
The edit DMX address window opens.
5. Use the ▲ or ▼ key to select a new value
Or,
enter a new value with the digit keys on the remote control or local keypad.
6. Use the ◄ or ► key to select the next digit and repeat step 5.
7. When the desired address is entered, press ENTER to store that address.
Image 13-38
Image 13-39
Image 13-40
144 R59770057 CLM HD8 15/03/2010
