12. Alignment menu
12.11.2 Preparations
ScenergiX Preparations
To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all projectors:
•
Convergence
• Geometry
• Color Matching (Color Temperature, Color Standard, Input Balance, Gamma)
12.11.3 ScenergiX activation
How to activate?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Alignment and press ENTER.
3. Use the ▲ or ▼ key to select ScenergiX and press ENTER.
4. Use the ▲ or ▼ key to select Status and press ENTER to toggle between [On] and [Off].
On ScenergiX is active
Off ScenergiX is not active

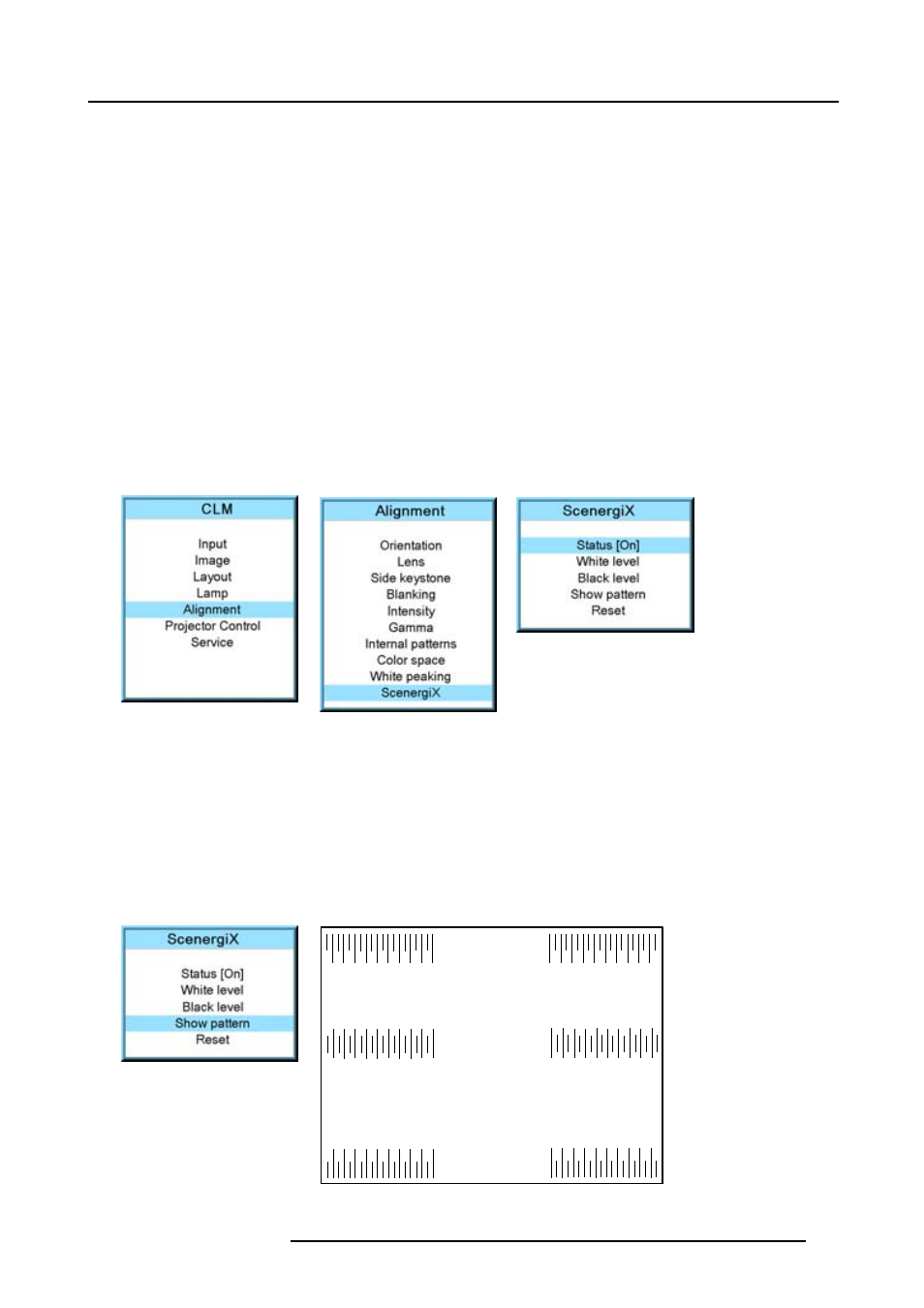

Image 12-37
Image 12-38
Image 12-39
12.11.4 ScenergiX pattern
What can be done?
To make the ScenergiX adjustment more easy, an internal pattern can be displayed.
How to display or remove the pattern?
1. Use the ▲ or ▼ key to select Show pattern and press ENTER.
The internal ScenergiX pattern is displayed.
Image 12-40
10 50 90 130 170 210 250 290 330 370 10 50 90 130 170 210 250 290 330 370
10 50 90 130 170 210 250 290 330 370 10 50 90 130 170 210 250 290 330 370
40 80 120 160 200 240 280 320 360 400 40 80 120 160 200 240 280 320 360 400
Image 12-41
ScenergiX pattern
